Description

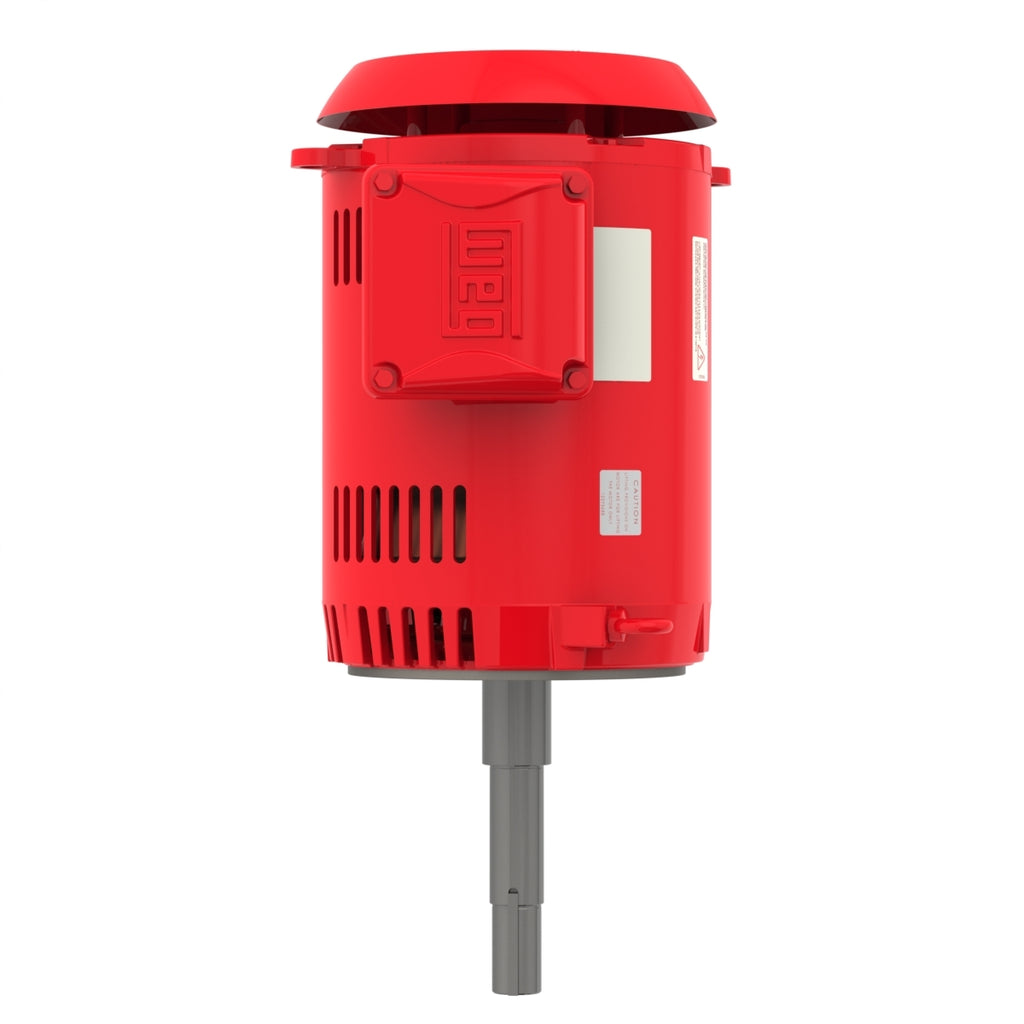

The W01 “JP” (gasket) motors were especially developed for fire pump application. They ensure maximum performance and robustness in environments where dirt and humidity are minimal.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//190-220/380-415 V |
| Number of poles | 4 |
| Synchronous speed | 1800 rpm |
| Output rating | 10 HP |
| Mounting | W-6 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 213/5JP |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1760 rpm |
| Slip | 2.22 % |
| Rated voltage | 230/460 V |
| Rated current | 24.8/12.4 A |
| L. R. Amperes | 161/80.6 A |
| LRC | 6.5x(Code H) |
| No load current | 11.2/5.62 A |
| Rated torque | 29.8 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 270 % |
| Locked rotor time | 14s (cold) 8s (hot) |
| Moment of inertia (J) | 1.03 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 59.0 dB(A) |
| Approx. weight³ | 116 lb |
Efficiency
| 50% | 89.5 |
|---|---|
| 75% | 90.2 |
| 100% | 89.5 |
Power factor
| 50% | 0.68 |
|---|---|
| 75% | 0.79 |
| 100% | 0.85 |
Electric Motors
| Frame | 213/5JP |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1445 rpm |
| Slip | 3.67 % |
| Rated voltage | 190-220/380 V |
| Rated current | 30.4-26.3/15.2 A |
| L. R. Amperes | 155-134/77.5 A |
| LRC | 5.1x(Code F) |
| No load current | 11.0-9.53/5.52 A |
| Rated torque | 36.3 ft.lb |
| Locked rotor torque | 150 % |
| Breakdown torque | 190 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 1.03 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 116 lb |
Efficiency
| 50% | 88.4 |
|---|---|
| 75% | 87.0 |
| 100% | 84.1 |
Power factor
| 50% | 0.75 |
|---|---|
| 75% | 0.85 |
| 100% | 0.89 |
Electric Motors
| Frame | 213/5JP |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1455 rpm |
| Slip | 3.00 % |
| Rated voltage | 415 V |
| Rated current | 14.1 A |
| L. R. Amperes | 86.0 A |
| LRC | 6.1x(Code G) |
| No load current | 6.69 A |
| Rated torque | 36.1 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 229 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 1.03 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 116 lb |
Efficiency
| 50% | 87.5 |
|---|---|
| 75% | 87.5 |
| 100% | 85.8 |
Power factor
| 50% | 0.67 |
|---|---|
| 75% | 0.80 |
| 100% | 0.86 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 1.377" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 3002 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | With |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
