Description

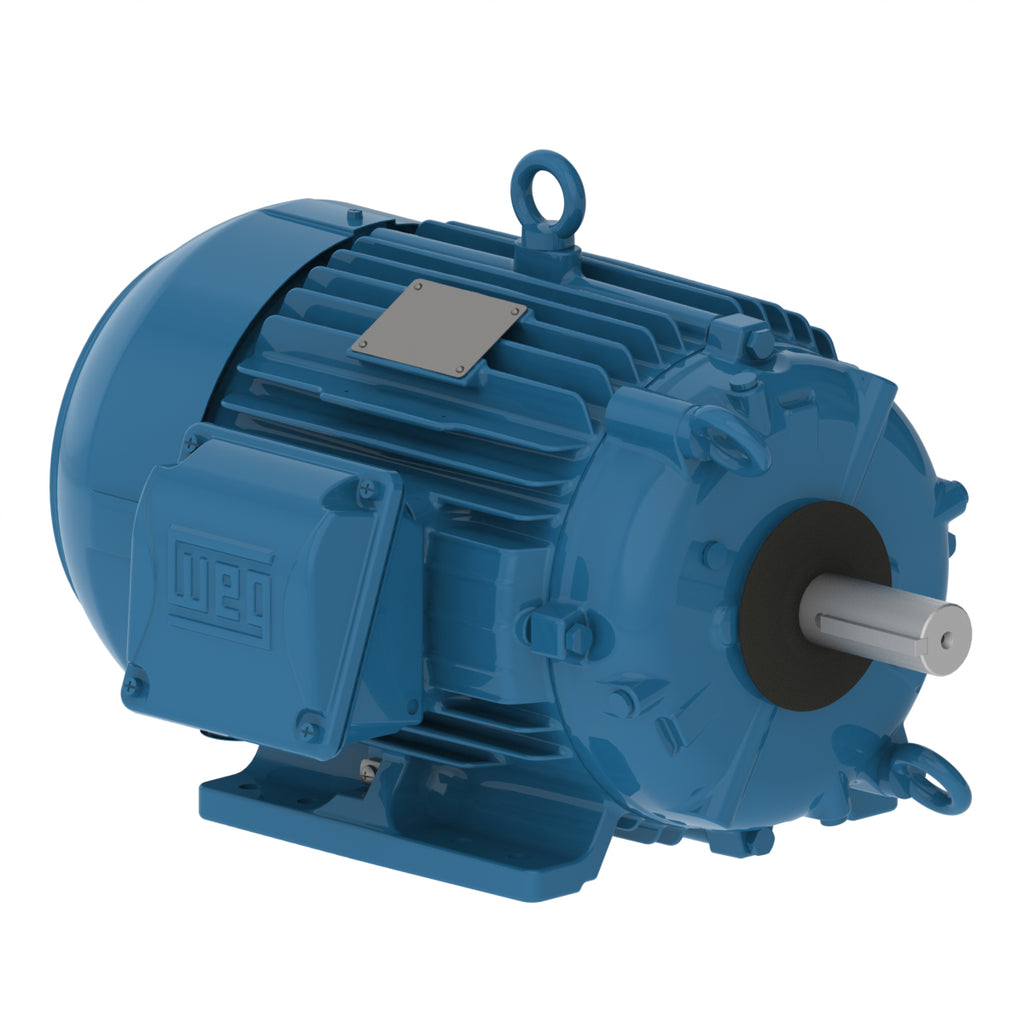

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 10 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Specifications
230/460 V 60 Hz 4P 380 V 50 Hz 4P IE3 400 V 50 Hz 4P IE3 415 V 50 Hz 4P IE3 380 V 50 Hz 4P IE1 400 V 50 Hz 4P IE2 415 V 50 Hz 4P IE2Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1765 rpm |
| Slip | 1.94 % |
| Rated voltage | 230/460 V |
| Rated current | 24.8/12.4 A |
| L. R. Amperes | 159/79.4 A |
| LRC | 6.4x(Code H) |
| No load current | 11.3/5.65 A |
| Rated torque | 29.8 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 295 % |
| Locked rotor time | 30s (cold) 17s (hot) |
| Moment of inertia (J) | 1.51 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 58.0 dB(A) |
| Approx. weight³ | 182 lb |
Efficiency
| 50% | 91.0 |
|---|---|
| 75% | 91.7 |
| 100% | 91.7 |
Power factor
| 50% | 0.66 |
|---|---|
| 75% | 0.77 |
| 100% | 0.83 |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1465 rpm |
| Slip | 2.33 % |
| Rated voltage | 380 V |
| Rated current | 11.2 A |
| L. R. Amperes | 75.0 A |
| LRC | 6.7x(Code H) |
| No load current | 5.60 A |
| Rated torque | 26.9 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 300 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 1.51 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 182 lb |
Efficiency
| 50% | 90.0 |
|---|---|
| 75% | 90.0 |
| 100% | 89.8 |
Power factor
| 50% | 0.62 |
|---|---|
| 75% | 0.76 |
| 100% | 0.83 |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1470 rpm |
| Slip | 2.00 % |
| Rated voltage | 400 V |
| Rated current | 11.0 A |
| L. R. Amperes | 78.1 A |
| LRC | 7.1x(Code J) |
| No load current | 6.00 A |
| Rated torque | 26.8 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 340 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 1.51 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 182 lb |
Efficiency
| 50% | 89.2 |
|---|---|
| 75% | 89.9 |
| 100% | 90.1 |
Power factor
| 50% | 0.58 |
|---|---|
| 75% | 0.73 |
| 100% | 0.80 |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1470 rpm |
| Slip | 2.00 % |
| Rated voltage | 415 V |
| Rated current | 10.9 A |
| L. R. Amperes | 81.7 A |
| LRC | 7.5x(Code J) |
| No load current | 6.35 A |
| Rated torque | 26.8 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 360 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 1.51 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 182 lb |
Efficiency
| 50% | 88.7 |
|---|---|
| 75% | 89.8 |
| 100% | 90.3 |
Power factor
| 50% | 0.55 |
|---|---|
| 75% | 0.70 |
| 100% | 0.78 |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1450 rpm |
| Slip | 3.33 % |
| Rated voltage | 380 V |
| Rated current | 15.0 A |
| L. R. Amperes | 76.5 A |
| LRC | 5.1x(Code F) |
| No load current | 5.60 A |
| Rated torque | 36.2 ft.lb |
| Locked rotor torque | 150 % |
| Breakdown torque | 220 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 1.51 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 182 lb |
Efficiency
| 50% | 90.3 |
|---|---|
| 75% | 90.2 |
| 100% | 88.5 |
Power factor
| 50% | 0.73 |
|---|---|
| 75% | 0.82 |
| 100% | 0.86 |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1455 rpm |
| Slip | 3.00 % |
| Rated voltage | 400 V |
| Rated current | 14.2 A |
| L. R. Amperes | 79.5 A |
| LRC | 5.6x(Code F) |
| No load current | 6.00 A |
| Rated torque | 36.1 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 250 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 1.51 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 182 lb |
Efficiency
| 50% | 90.3 |
|---|---|
| 75% | 90.2 |
| 100% | 89.5 |
Power factor
| 50% | 0.69 |
|---|---|
| 75% | 0.80 |
| 100% | 0.85 |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 50 Hz |
| Rated speed | 1460 rpm |
| Slip | 2.67 % |
| Rated voltage | 415 V |
| Rated current | 13.8 A |
| L. R. Amperes | 82.8 A |
| LRC | 6.0x(Code G) |
| No load current | 6.35 A |
| Rated torque | 36.0 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 270 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 1.51 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 56.0 dB(A) |
| Approx. weight³ | 182 lb |
Efficiency
| 50% | 90.3 |
|---|---|
| 75% | 90.2 |
| 100% | 90.2 |
Power factor
| 50% | 0.66 |
|---|---|
| 75% | 0.78 |
| 100% | 0.84 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Double impregnation polyester |
| Space Heater Voltage | 110-127/200-240 V |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 202E (ISO 12944 - C4) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Complete (200h) |
| Joints Seal | Permatex |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
