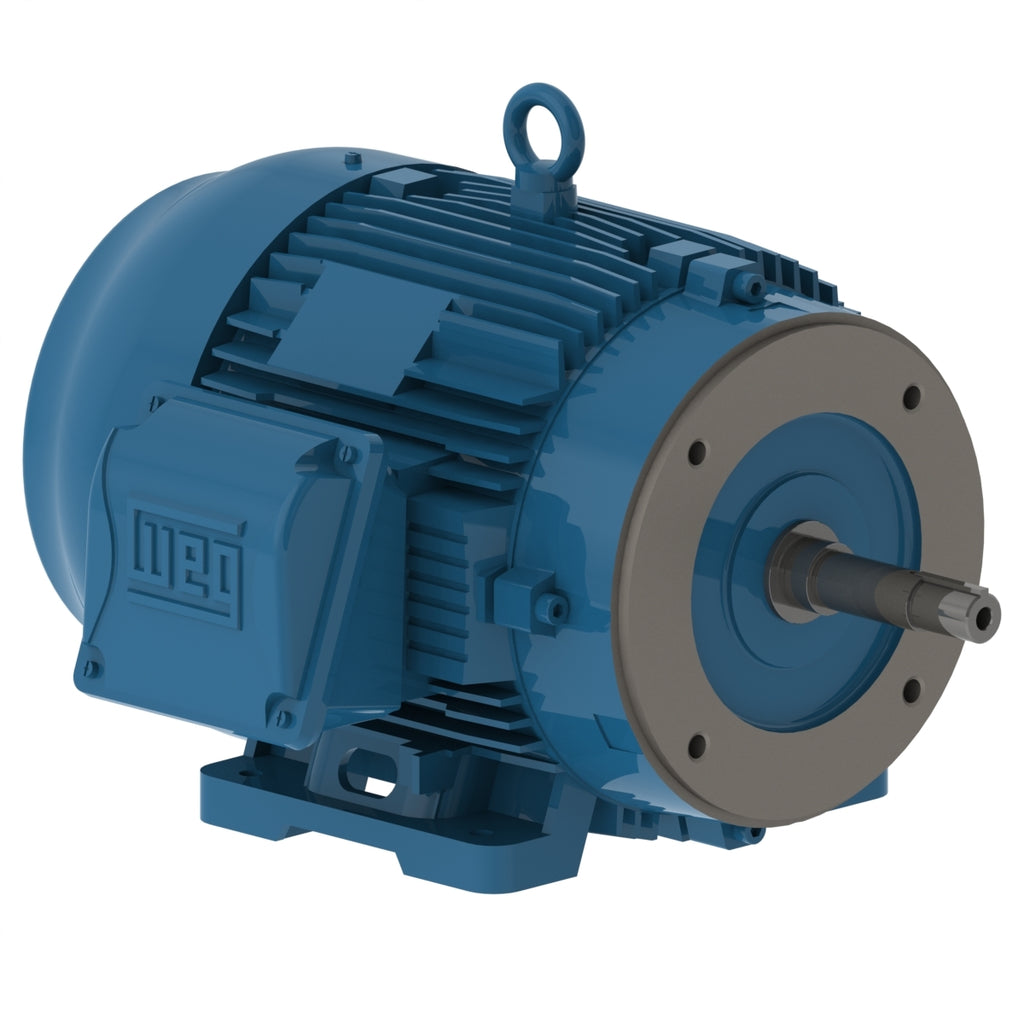

WEG 01018ET3E215JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 10 HP 4P 213/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 01018ET3E215JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 10 HP 4P 213/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 01018ET3E215JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 10 HP 4P 213/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 01018ET3E215JM-W22

Dropship

Get it by Wed, Feb 11 - Mon, Feb 16

Price:
$1,594.88

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 10 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 213/5JM
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1765 rpm
Slip 1.94 %
Rated voltage 230/460 V
Rated current 24.8/12.4 A
L. R. Amperes 159/79.4 A
LRC 6.4x(Code H)
No load current 11.3/5.65 A
Rated torque 29.8 ft.lb
Locked rotor torque 200 %
Breakdown torque 295 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 91.0
75% 91.7
100% 91.7
Power factor
50% 0.66
75% 0.77
100% 0.83
Electric Motors
Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 380 V
Rated current 11.2 A
L. R. Amperes 75.0 A
LRC 6.7x(Code H)
No load current 5.60 A
Rated torque 26.9 ft.lb
Locked rotor torque 200 %
Breakdown torque 300 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 90.0
75% 90.0
100% 89.8
Power factor
50% 0.62
75% 0.76
100% 0.83
Electric Motors
Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 11.0 A
L. R. Amperes 78.1 A
LRC 7.1x(Code J)
No load current 6.00 A
Rated torque 26.8 ft.lb
Locked rotor torque 240 %
Breakdown torque 340 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 89.2
75% 89.9
100% 90.1
Power factor
50% 0.58
75% 0.73
100% 0.80
Electric Motors
Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 10.9 A
L. R. Amperes 81.7 A
LRC 7.5x(Code J)
No load current 6.35 A
Rated torque 26.8 ft.lb
Locked rotor torque 260 %
Breakdown torque 360 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 88.7
75% 89.8
100% 90.3
Power factor
50% 0.55
75% 0.70
100% 0.78
Electric Motors
Frame 213/5JM
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 15.0 A
L. R. Amperes 76.5 A
LRC 5.1x(Code F)
No load current 5.60 A
Rated torque 36.2 ft.lb
Locked rotor torque 150 %
Breakdown torque 220 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 90.3
75% 90.2
100% 88.5
Power factor
50% 0.73
75% 0.82
100% 0.86
Electric Motors
Frame 213/5JM
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 14.2 A
L. R. Amperes 79.5 A
LRC 5.6x(Code F)
No load current 6.00 A
Rated torque 36.1 ft.lb
Locked rotor torque 180 %
Breakdown torque 250 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 90.3
75% 90.2
100% 89.5
Power factor
50% 0.69
75% 0.80
100% 0.85
Electric Motors
Frame 213/5JM
Output 10 HP (7.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 13.8 A
L. R. Amperes 82.8 A
LRC 6.0x(Code G)
No load current 6.35 A
Rated torque 36.0 ft.lb
Locked rotor torque 190 %
Breakdown torque 270 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 1.51 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 181 lb
Efficiency
50% 90.3
75% 90.2
100% 90.2
Power factor
50% 0.66
75% 0.78
100% 0.84
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Pump Seal Mechanical Seal
Connection Cables Quantity 9
