Description

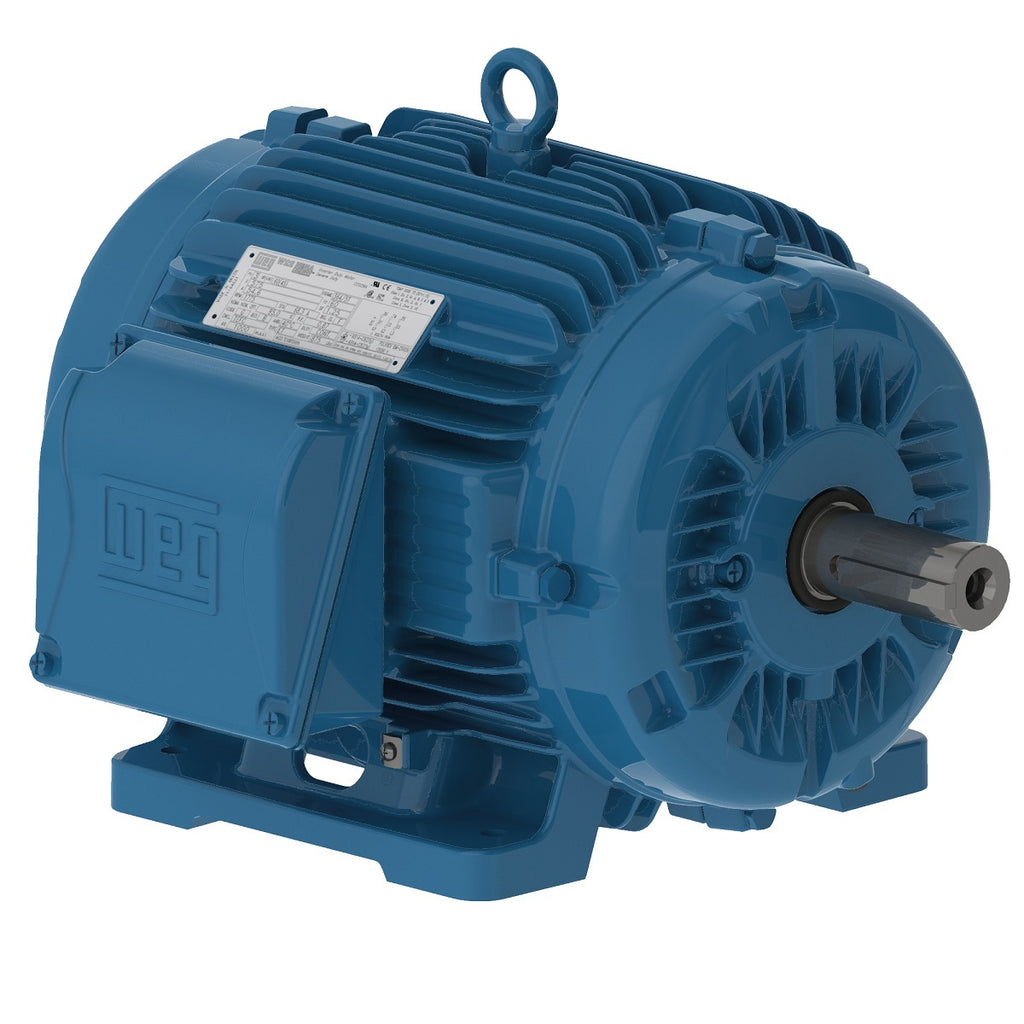

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 208-230/460//380 V |
| Number of poles | 8 |
| Degree of Protection | IP55 |
| Synchronous speed | 900 rpm |
| Output rating | 10 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC410 - TEAO |
Electric Motors
| Frame | 284/6T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 8 |
| Frequency | 60 Hz |
| Rated speed | 880 rpm |
| Slip | 2.22 % |
| Rated voltage | 208-230/460 V |
| Rated current | 29.6-26.8/13.4 A |
| L. R. Amperes | 166-150/75.0 A |
| LRC | 5.6x(Code G) |
| No load current | 11.2-13.0/6.50 A |
| Rated torque | 59.7 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 240 % |
| Locked rotor time | 57s (cold) 32s (hot) |
| Moment of inertia (J) | 7.20 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 54.0 dB(A) |
| Approx. weight³ | 0.0 lb |
Efficiency
| 50% | 89.5 |
|---|---|
| 75% | 90.2 |
| 100% | 90.2 |
Power factor
| 50% | 0.61 |
|---|---|
| 75% | 0.72 |
| 100% | 0.78 |
Electric Motors
| Frame | 284/6T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 725 rpm |
| Slip | 3.33 % |
| Rated voltage | 380 V |
| Rated current | 16.1 A |
| L. R. Amperes | 70.8 A |
| LRC | 4.4x(Code E) |
| No load current | 6.40 A |
| Rated torque | 72.4 ft.lb |
| Locked rotor torque | 150 % |
| Breakdown torque | 190 % |
| Locked rotor time | 45s (cold) 25s (hot) |
| Moment of inertia (J) | 7.20 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 52.0 dB(A) |
| Approx. weight³ | 0.0 lb |
Efficiency
| 50% | 89.5 |
|---|---|
| 75% | 88.5 |
| 100% | 87.5 |
Power factor
| 50% | 0.68 |
|---|---|
| 75% | 0.77 |
| 100% | 0.81 |
Electric Motors
| Frame | 284/6T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 725 rpm |
| Slip | 3.33 % |
| Rated voltage | 400 V |
| Rated current | 15.3 A |
| L. R. Amperes | 75.0 A |
| LRC | 4.9x(Code F) |
| No load current | 6.90 A |
| Rated torque | 72.4 ft.lb |
| Locked rotor torque | 170 % |
| Breakdown torque | 210 % |
| Locked rotor time | 45s (cold) 25s (hot) |
| Moment of inertia (J) | 7.20 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 52.0 dB(A) |
| Approx. weight³ | 0.0 lb |
Efficiency
| 50% | 88.5 |
|---|---|
| 75% | 88.5 |
| 100% | 88.5 |
Power factor
| 50% | 0.64 |
|---|---|
| 75% | 0.74 |
| 100% | 0.80 |
Electric Motors
| Frame | 284/6T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 8 |
| Frequency | 50 Hz |
| Rated speed | 730 rpm |
| Slip | 2.67 % |
| Rated voltage | 415 V |
| Rated current | 15.1 A |
| L. R. Amperes | 78.5 A |
| LRC | 5.2x(Code G) |
| No load current | 7.35 A |
| Rated torque | 71.9 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 229 % |
| Locked rotor time | 45s (cold) 25s (hot) |
| Moment of inertia (J) | 7.20 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TEAO |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 52.0 dB(A) |
| Approx. weight³ | 0.0 lb |
Efficiency
| 50% | 88.5 |
|---|---|
| 75% | 89.5 |
| 100% | 88.5 |
Power factor
| 50% | 0.61 |
|---|---|
| 75% | 0.72 |
| 100% | 0.78 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | NPT 1 1/2" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
