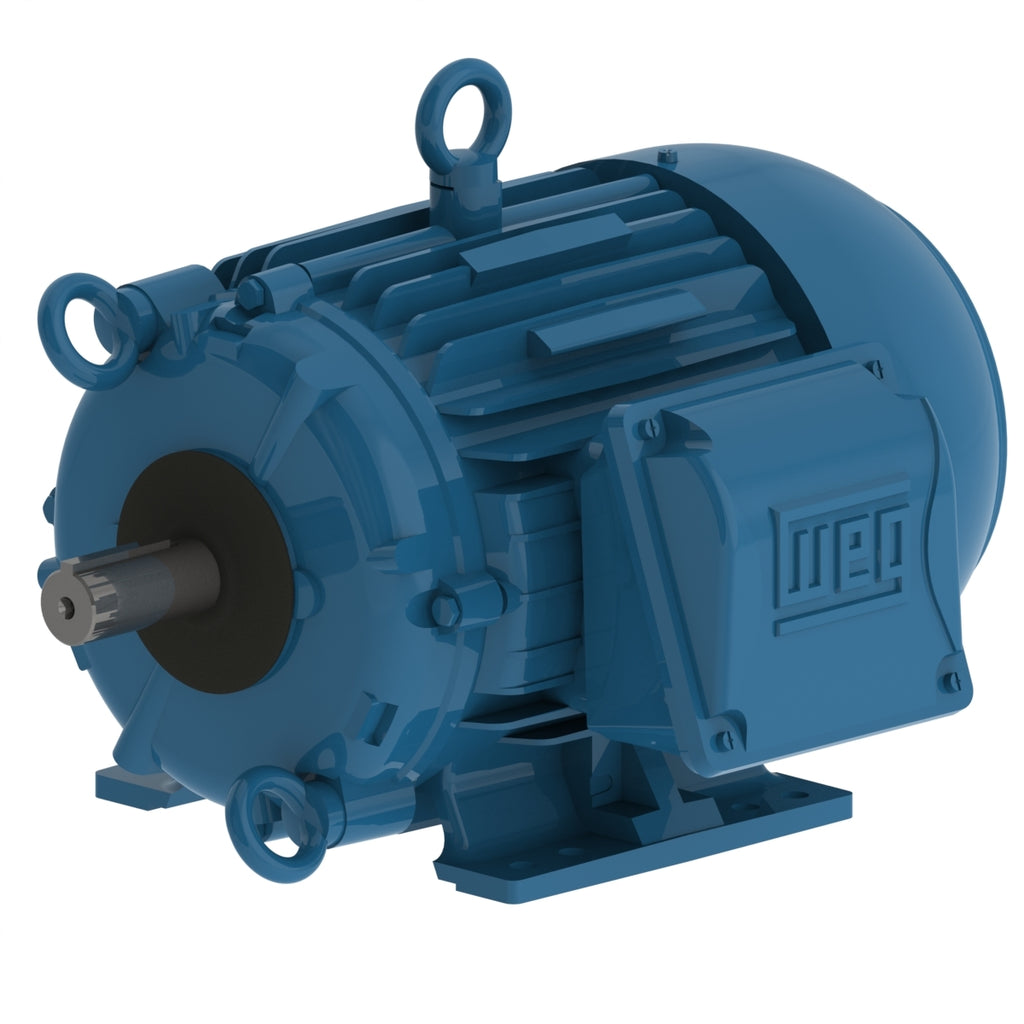

WEG 00789EP3HCT213V-W22 W22 Cooling Tower High Efficiency 1.75/7.5 HP 8/4P 213T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00789EP3HCT213V-W22 W22 Cooling Tower High Efficiency 1.75/7.5 HP 8/4P 213T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 00789EP3HCT213V-W22 W22 Cooling Tower High Efficiency 1.75/7.5 HP 8/4P 213T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 00789EP3HCT213V-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$1,488.08

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 8/4
Degree of Protection IP55
Synchronous speed 900/1800 rpm
Output rating 1.75/7.5 HP
Mounting F-2
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC

Specifications

575 V 60 Hz 4P 575 V 60 Hz 8P

Electric Motors
Frame 213T
Output 7.5 HP (5.5 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 575 V
Rated current 7.61 A
L. R. Amperes 63.9 A
LRC 8.4x(Code K)
No load current 3.60 A
Rated torque 22.3 ft.lb
Locked rotor torque 200 %
Breakdown torque 300 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 1.38 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 61.0 dB(A)
Approx. weight³ 2.2 lb
Efficiency
50% 85.5
75% 87.5
100% 88.5
Power factor
50% 0.64
75% 0.77
100% 0.82
Electric Motors
Frame 213T
Output 1.75 HP (1.3 kW)
Number of Poles 8/4
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 575 V
Rated current 2.72 A
L. R. Amperes 12.5 A
LRC 4.6x(Code J)
No load current 2.00 A
Rated torque 10.4 ft.lb
Locked rotor torque 140 %
Breakdown torque 220 %
Locked rotor time 73s (cold) 41s (hot)
Moment of inertia (J) 1.38 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 52.0 dB(A)
Approx. weight³ 2.2 lb
Efficiency
50% 74.0
75% 78.5
100% 80.0
Power factor
50% 0.40
75% 0.50
100% 0.60
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
