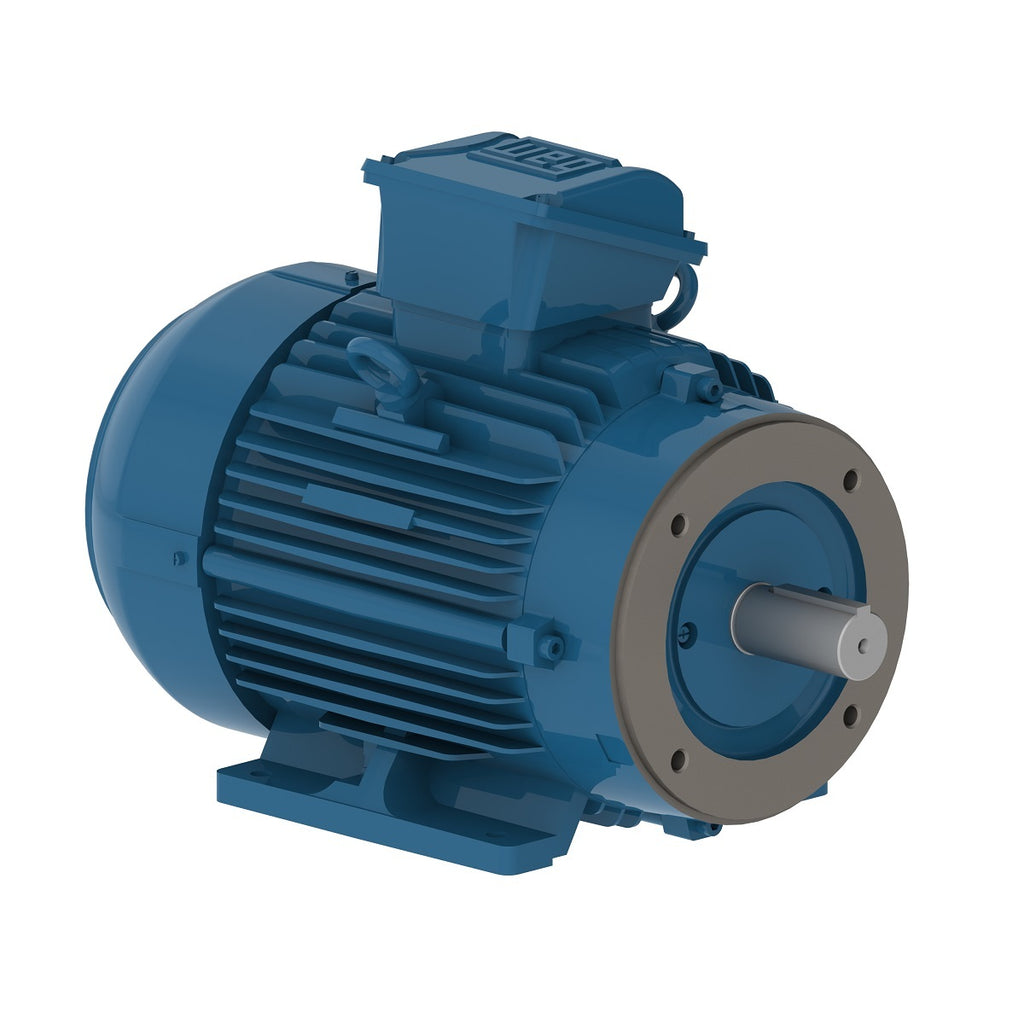

WEG 00736ET3E213TCF3-W22 W22 NEMA Premium Efficiency 7.5 HP 2P 213TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00736ET3E213TCF3-W22 W22 NEMA Premium Efficiency 7.5 HP 2P 213TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 00736ET3E213TCF3-W22 W22 NEMA Premium Efficiency 7.5 HP 2P 213TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 00736ET3E213TCF3-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$1,078.68

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 7.5 HP
Mounting F-3
Flange C
Terminal box¹ Top
Enclosure IC411 - TEFC


Electric Motors
Frame 213TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 17.5/8.76 A
L. R. Amperes 126/63.1 A
LRC 7.2x(Code H)
No load current 5.40/2.70 A
Rated torque 11.2 ft.lb
Locked rotor torque 210 %
Breakdown torque 300 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 145 lb
Efficiency
50% 87.5
75% 89.5
100% 89.5
Power factor
50% 0.75
75% 0.84
100% 0.88
Electric Motors
Frame 213TC
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2930 rpm
Slip 2.33 %
Rated voltage 380 V
Rated current 7.83 A
L. R. Amperes 60.3 A
LRC 7.7x(Code J)
No load current 2.35 A
Rated torque 9.86 ft.lb
Locked rotor torque 220 %
Breakdown torque 310 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 145 lb
Efficiency
50% 86.7
75% 88.2
100% 88.2
Power factor
50% 0.74
75% 0.83
100% 0.88
Electric Motors
Frame 213TC
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 7.60 A
L. R. Amperes 57.8 A
LRC 7.6x(Code J)
No load current 2.65 A
Rated torque 9.82 ft.lb
Locked rotor torque 250 %
Breakdown torque 350 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 145 lb
Efficiency
50% 86.4
75% 88.3
100% 88.3
Power factor
50% 0.70
75% 0.81
100% 0.86
Electric Motors
Frame 213TC
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 415 V
Rated current 7.49 A
L. R. Amperes 62.2 A
LRC 8.3x(Code K)
No load current 2.91 A
Rated torque 9.81 ft.lb
Locked rotor torque 270 %
Breakdown torque 370 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 145 lb
Efficiency
50% 86.1
75% 88.5
100% 88.5
Power factor
50% 0.67
75% 0.78
100% 0.84
Electric Motors
Frame 213TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2895 rpm
Slip 3.50 %
Rated voltage 380 V
Rated current 10.6 A
L. R. Amperes 60.4 A
LRC 5.7x(Code F)
No load current 2.23 A
Rated torque 13.6 ft.lb
Locked rotor torque 170 %
Breakdown torque 229 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 145 lb
Efficiency
50% 88.5
75% 88.5
100% 87.5
Power factor
50% 0.80
75% 0.87
100% 0.90
Electric Motors
Frame 213TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 400 V
Rated current 10.2 A
L. R. Amperes 65.3 A
LRC 6.4x(Code G)
No load current 2.52 A
Rated torque 13.6 ft.lb
Locked rotor torque 190 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 145 lb
Efficiency
50% 87.5
75% 87.5
100% 87.5
Power factor
50% 0.77
75% 0.86
100% 0.89
Electric Motors
Frame 213TC
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2915 rpm
Slip 2.83 %
Rated voltage 415 V
Rated current 9.82 A
L. R. Amperes 67.8 A
LRC 6.9x(Code H)
No load current 2.98 A
Rated torque 13.5 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 145 lb
Efficiency
50% 87.5
75% 88.5
100% 88.5
Power factor
50% 0.74
75% 0.84
100% 0.88
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
