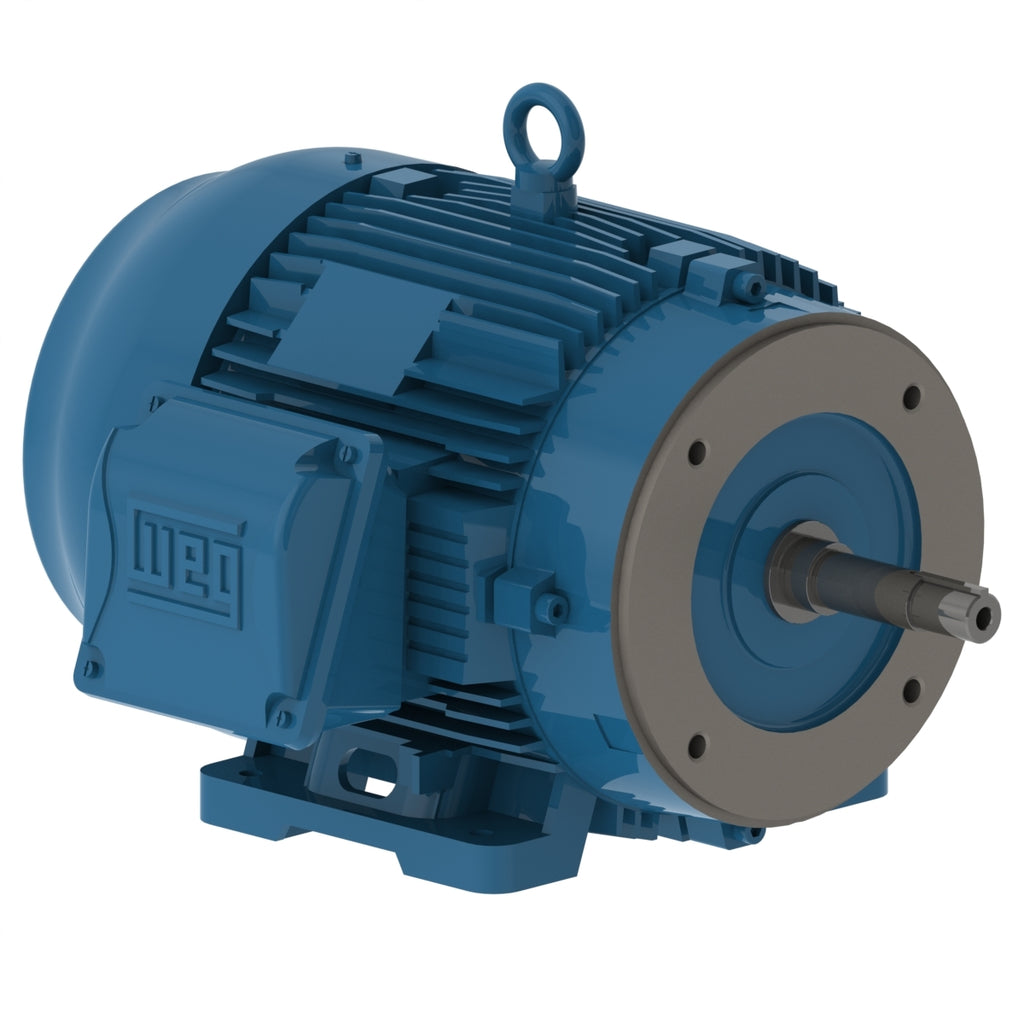

WEG 00736ET3E213JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 7.5 HP 2P 213/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00736ET3E213JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 7.5 HP 2P 213/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 00736ET3E213JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 7.5 HP 2P 213/5JM 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 00736ET3E213JM-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$1,262.91

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 7.5 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3520 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 17.5/8.76 A
L. R. Amperes 126/63.1 A
LRC 7.2x(Code H)
No load current 5.40/2.70 A
Rated torque 11.2 ft.lb
Locked rotor torque 210 %
Breakdown torque 300 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 153 lb
Efficiency
50% 87.5
75% 89.5
100% 89.5
Power factor
50% 0.75
75% 0.84
100% 0.88
Electric Motors
Frame 213/5JM
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2930 rpm
Slip 2.33 %
Rated voltage 380 V
Rated current 7.83 A
L. R. Amperes 60.3 A
LRC 7.7x(Code J)
No load current 2.35 A
Rated torque 9.86 ft.lb
Locked rotor torque 220 %
Breakdown torque 310 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 153 lb
Efficiency
50% 86.7
75% 88.2
100% 88.2
Power factor
50% 0.74
75% 0.83
100% 0.88
Electric Motors
Frame 213/5JM
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2940 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 7.60 A
L. R. Amperes 57.8 A
LRC 7.6x(Code J)
No load current 2.65 A
Rated torque 9.82 ft.lb
Locked rotor torque 250 %
Breakdown torque 350 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 153 lb
Efficiency
50% 86.4
75% 88.3
100% 88.3
Power factor
50% 0.70
75% 0.81
100% 0.86
Electric Motors
Frame 213/5JM
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 415 V
Rated current 7.49 A
L. R. Amperes 62.2 A
LRC 8.3x(Code K)
No load current 2.91 A
Rated torque 9.81 ft.lb
Locked rotor torque 270 %
Breakdown torque 370 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 153 lb
Efficiency
50% 86.1
75% 88.5
100% 88.5
Power factor
50% 0.67
75% 0.78
100% 0.84
Electric Motors
Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2895 rpm
Slip 3.50 %
Rated voltage 380 V
Rated current 10.6 A
L. R. Amperes 60.4 A
LRC 5.7x(Code F)
No load current 2.23 A
Rated torque 13.6 ft.lb
Locked rotor torque 170 %
Breakdown torque 229 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 153 lb
Efficiency
50% 88.5
75% 88.5
100% 87.5
Power factor
50% 0.80
75% 0.87
100% 0.90
Electric Motors
Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 400 V
Rated current 10.2 A
L. R. Amperes 65.3 A
LRC 6.4x(Code G)
No load current 2.52 A
Rated torque 13.6 ft.lb
Locked rotor torque 190 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 153 lb
Efficiency
50% 87.5
75% 87.5
100% 87.5
Power factor
50% 0.77
75% 0.86
100% 0.89
Electric Motors
Frame 213/5JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2915 rpm
Slip 2.83 %
Rated voltage 415 V
Rated current 9.82 A
L. R. Amperes 67.8 A
LRC 6.9x(Code H)
No load current 2.98 A
Rated torque 13.5 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 0.4665 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 153 lb
Efficiency
50% 87.5
75% 88.5
100% 88.5
Power factor
50% 0.74
75% 0.84
100% 0.88
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Pump Seal Mechanical Seal
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
