Description

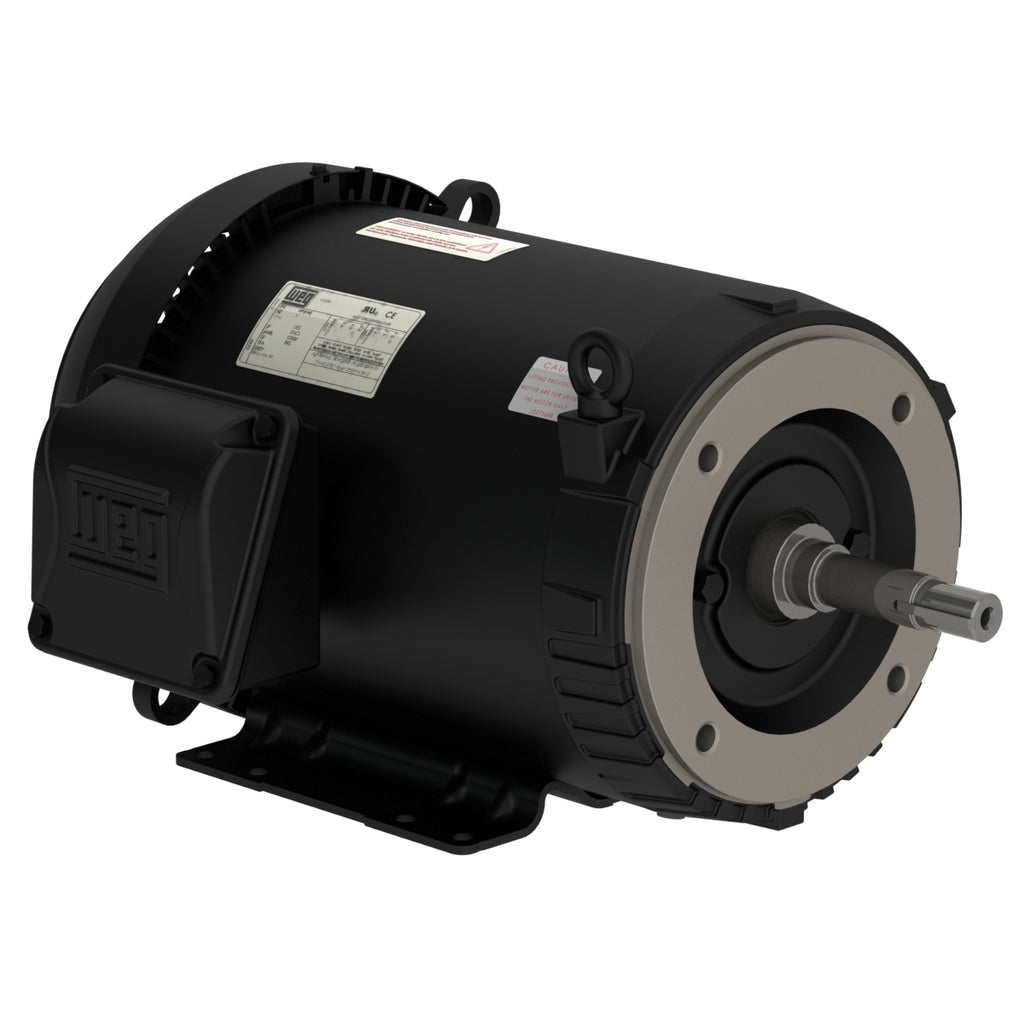

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//190-220/380-415 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 7.5 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 213/5JM |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3530 rpm |
| Slip | 1.94 % |
| Rated voltage | 230/460 V |
| Rated current | 17.3/8.67 A |
| L. R. Amperes | 132/65.9 A |
| LRC | 7.6x(Code H) |
| No load current | 6.63/3.32 A |
| Rated torque | 11.2 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 300 % |
| Locked rotor time | 27s (cold) 15s (hot) |
| Moment of inertia (J) | 0.5496 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 70.0 dB(A) |
| Approx. weight³ | 142 lb |
Efficiency
| 50% | 87.5 |
|---|---|
| 75% | 88.5 |
| 100% | 89.5 |
Power factor
| 50% | 0.76 |
|---|---|
| 75% | 0.85 |
| 100% | 0.89 |
Electric Motors
| Frame | 213/5JM |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2905 rpm |
| Slip | 3.17 % |
| Rated voltage | 190-220/380 V |
| Rated current | 21.2-18.3/10.6 A |
| L. R. Amperes | 134-115/66.8 A |
| LRC | 6.3x(Code G) |
| No load current | 6.54-5.65/3.27 A |
| Rated torque | 13.6 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 240 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 0.5496 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 142 lb |
Efficiency
| 50% | 88.6 |
|---|---|
| 75% | 88.4 |
| 100% | 86.9 |
Power factor
| 50% | 0.81 |
|---|---|
| 75% | 0.88 |
| 100% | 0.91 |
Electric Motors
| Frame | 213/5JM |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2925 rpm |
| Slip | 2.50 % |
| Rated voltage | 415 V |
| Rated current | 9.75 A |
| L. R. Amperes | 74.1 A |
| LRC | 7.6x(Code J) |
| No load current | 3.72 A |
| Rated torque | 13.5 ft.lb |
| Locked rotor torque | 240 % |
| Breakdown torque | 300 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 0.5496 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 67.0 dB(A) |
| Approx. weight³ | 142 lb |
Efficiency
| 50% | 88.5 |
|---|---|
| 75% | 89.1 |
| 100% | 88.2 |
Power factor
| 50% | 0.75 |
|---|---|
| 75% | 0.85 |
| 100% | 0.89 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 1.377" |
| Terminal Block | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
