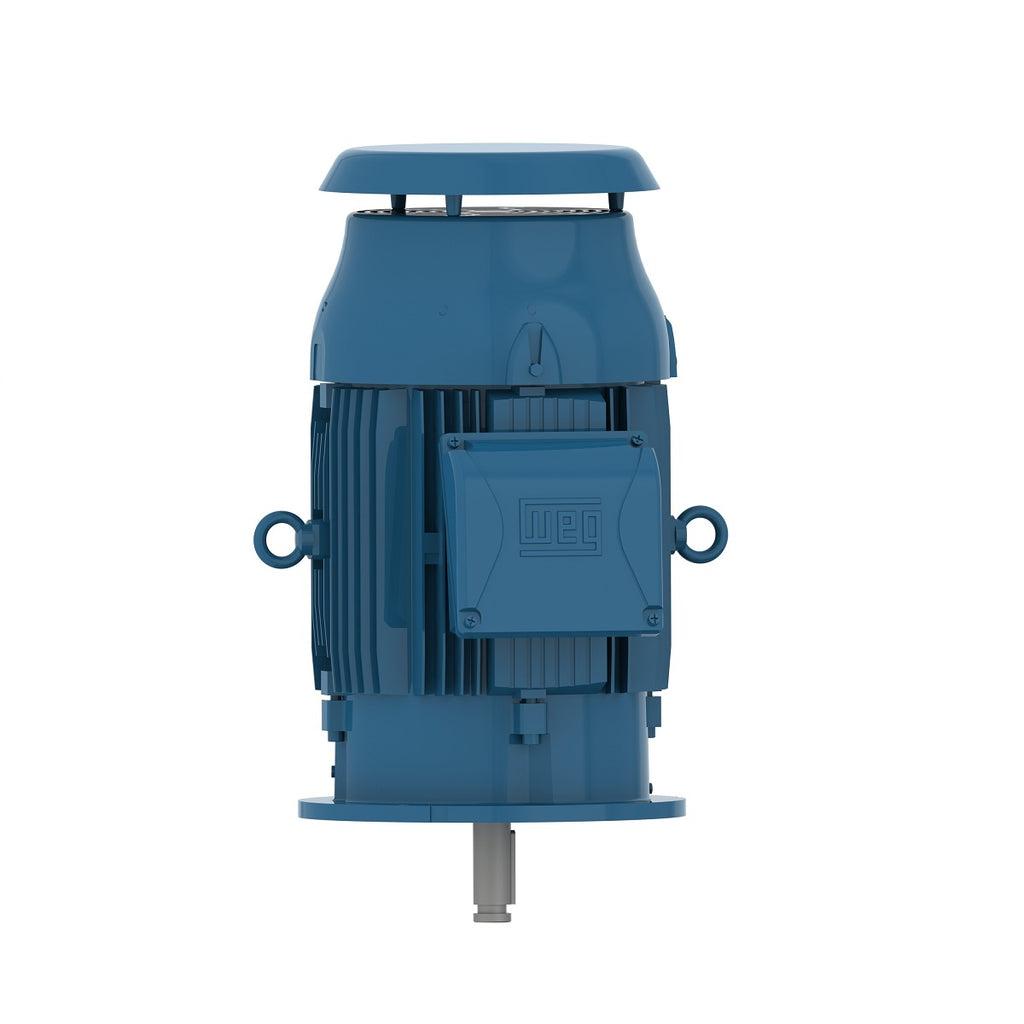

WEG 00736ET3E213HP-W22 W22 P Base NEMA Premium Efficiency 7.5 HP 2P 213HP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless

Roll over image to zoom in Click on image to zoom

WEG 00736ET3E213HP-W22 W22 P Base NEMA Premium Efficiency 7.5 HP 2P 213HP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless

Name: WEG 00736ET3E213HP-W22 W22 P Base NEMA Premium Efficiency 7.5 HP 2P 213HP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Brand: WEG
SKU: 00736ET3E213HP-W22
Price: 1281.6 USD
Availability: InStock

WEGSKU: 00736ET3E213HP-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:

$1,281.60

Quantity:

Share this product

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Standard	NEMA MG-1
Frequency	60//50 Hz
Voltage	230/460//380 V
Number of poles	2
Degree of Protection	IP55
Synchronous speed	3600 rpm
Output rating	7.5 HP
Mounting	W-6
Flange	P
Terminal box¹	Left position
Enclosure	IC411 - TEFC

Specifications

230/460 V 60 Hz 2P 380 V 50 Hz 2P IE3 400 V 50 Hz 2P IE3 415 V 50 Hz 2P IE3 380 V 50 Hz 2P IE2 400 V 50 Hz 2P IE2 415 V 50 Hz 2P IE2

Electric Motors

Frame	213HP
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3530 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	17.5/8.76 A
L. R. Amperes	126/63.1 A
LRC	7.2x(Code H)
No load current	6.00/3.00 A
Rated torque	11.2 ft.lb
Locked rotor torque	210 %
Breakdown torque	300 %
Locked rotor time	36s (cold) 20s (hot)
Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	150 lb

Efficiency

50%	87.5
75%	89.5
100%	89.5

Power factor

50%	0.75
75%	0.84
100%	0.88

Electric Motors

Frame	213HP
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2940 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	7.83 A
L. R. Amperes	60.3 A
LRC	7.7x(Code J)
No load current	2.90 A
Rated torque	9.82 ft.lb
Locked rotor torque	220 %
Breakdown torque	310 %
Locked rotor time	37s (cold) 21s (hot)
Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	150 lb

Efficiency

50%	86.7
75%	88.2
100%	88.2

Power factor

50%	0.74
75%	0.83
100%	0.88

Electric Motors

Frame	213HP
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	7.60 A
L. R. Amperes	57.8 A
LRC	7.6x(Code J)
No load current	3.15 A
Rated torque	9.79 ft.lb
Locked rotor torque	250 %
Breakdown torque	350 %
Locked rotor time	37s (cold) 21s (hot)
Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	150 lb

Efficiency

50%	86.4
75%	88.3
100%	88.3

Power factor

50%	0.70
75%	0.81
100%	0.86

Electric Motors

Frame	213HP
Output	5.5 HP (4 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2955 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	7.49 A
L. R. Amperes	62.2 A
LRC	8.3x(Code K)
No load current	3.30 A
Rated torque	9.77 ft.lb
Locked rotor torque	270 %
Breakdown torque	370 %
Locked rotor time	37s (cold) 21s (hot)
Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	150 lb

Efficiency

50%	86.1
75%	88.5
100%	88.5

Power factor

50%	0.67
75%	0.78
100%	0.84

Electric Motors

Frame	213HP
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	380 V
Rated current	10.6 A
L. R. Amperes	60.4 A
LRC	5.7x(Code F)
No load current	2.90 A
Rated torque	13.6 ft.lb
Locked rotor torque	170 %
Breakdown torque	229 %
Locked rotor time	27s (cold) 15s (hot)
Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	150 lb

Efficiency

50%	88.5
75%	88.5
100%	87.5

Power factor

50%	0.80
75%	0.87
100%	0.90

Electric Motors

Frame	213HP
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2915 rpm
Slip	2.83 %
Rated voltage	400 V
Rated current	10.2 A
L. R. Amperes	65.3 A
LRC	6.4x(Code G)
No load current	3.15 A
Rated torque	13.5 ft.lb
Locked rotor torque	180 %
Breakdown torque	260 %
Locked rotor time	27s (cold) 15s (hot)
Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	150 lb

Efficiency

50%	87.5
75%	87.5
100%	87.5

Power factor

50%	0.77
75%	0.86
100%	0.89

Electric Motors

Frame	213HP
Output	7.5 HP (5.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2925 rpm
Slip	2.50 %
Rated voltage	415 V
Rated current	9.82 A
L. R. Amperes	67.8 A
LRC	6.9x(Code H)
No load current	3.30 A
Rated torque	13.5 ft.lb
Locked rotor torque	200 %
Breakdown torque	280 %
Locked rotor time	27s (cold) 15s (hot)
Moment of inertia (J)	0.4665 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	W-6
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	150 lb

Efficiency

50%	87.5
75%	88.5
100%	88.5

Power factor

50%	0.74
75%	0.84
100%	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 1"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	With
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
