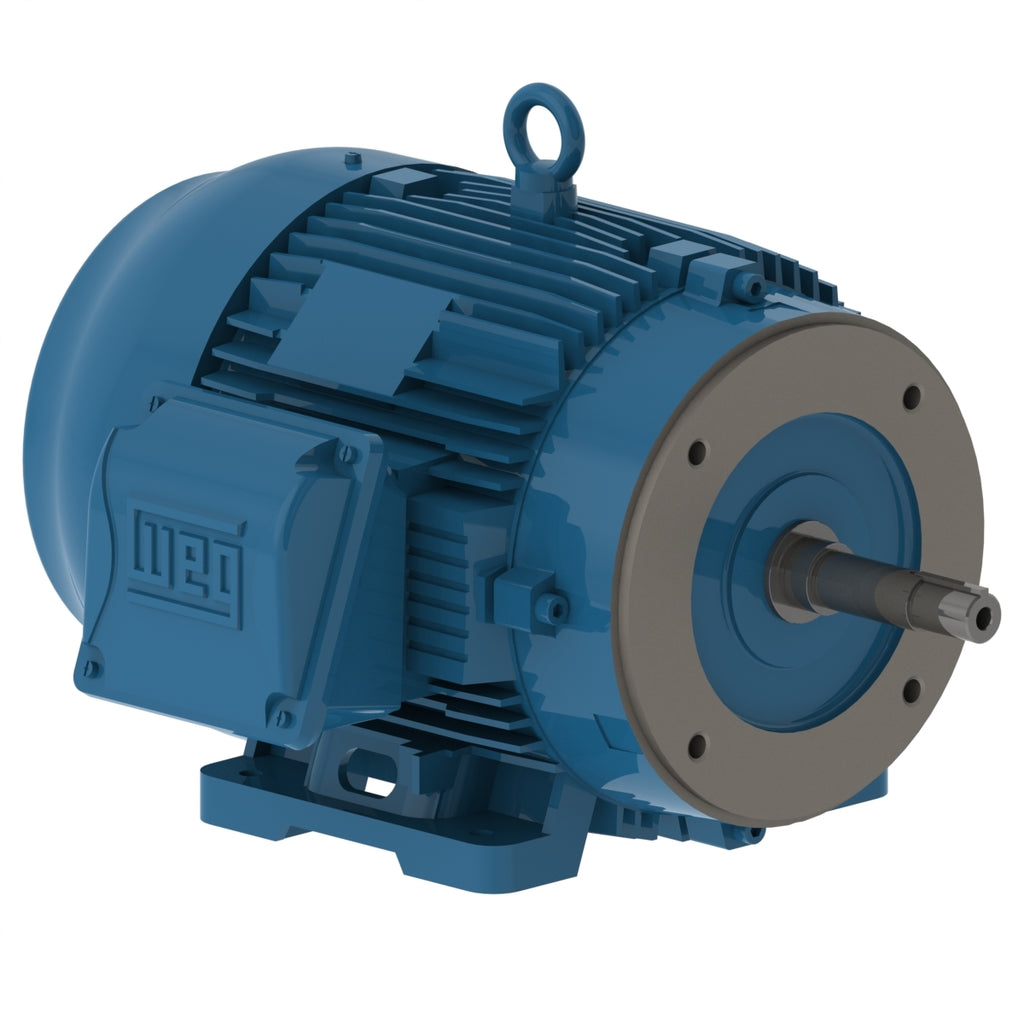

WEG 00736ET3E184JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 7.5 HP 2P 182/4JM 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00736ET3E184JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 7.5 HP 2P 182/4JM 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 00736ET3E184JM-W22 W22 Close Coupled Pump JM NEMA Premium Efficiency 7.5 HP 2P 182/4JM 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 00736ET3E184JM-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$1,168.57

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 7.5 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 182/4JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 230/460 V
Rated current 17.5/8.76 A
L. R. Amperes 144/71.8 A
LRC 8.2x(Code J)
No load current 5.80/2.90 A
Rated torque 11.3 ft.lb
Locked rotor torque 270 %
Breakdown torque 330 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 99.5 lb
Efficiency
50% 88.5
75% 89.5
100% 89.5
Power factor
50% 0.75
75% 0.84
100% 0.88
Electric Motors
Frame 182/4JM
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2900 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 7.84 A
L. R. Amperes 65.1 A
LRC 8.3x(Code J)
No load current 2.70 A
Rated torque 9.96 ft.lb
Locked rotor torque 310 %
Breakdown torque 360 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 99.5 lb
Efficiency
50% 85.5
75% 87.0
100% 88.1
Power factor
50% 0.70
75% 0.82
100% 0.88
Electric Motors
Frame 182/4JM
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 7.62 A
L. R. Amperes 69.3 A
LRC 9.1x(Code K)
No load current 3.00 A
Rated torque 9.93 ft.lb
Locked rotor torque 350 %
Breakdown torque 390 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 99.5 lb
Efficiency
50% 85.9
75% 87.6
100% 88.1
Power factor
50% 0.66
75% 0.79
100% 0.86
Electric Motors
Frame 182/4JM
Output 5.5 HP (4 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2915 rpm
Slip 2.83 %
Rated voltage 415 V
Rated current 7.47 A
L. R. Amperes 71.7 A
LRC 9.6x(Code L)
No load current 3.20 A
Rated torque 9.91 ft.lb
Locked rotor torque 370 %
Breakdown torque 430 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 99.5 lb
Efficiency
50% 86.2
75% 88.1
100% 88.7
Power factor
50% 0.63
75% 0.77
100% 0.84
Electric Motors
Frame 182/4JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2810 rpm
Slip 6.33 %
Rated voltage 380 V
Rated current 10.9 A
L. R. Amperes 68.7 A
LRC 6.3x(Code G)
No load current 2.70 A
Rated torque 14.0 ft.lb
Locked rotor torque 220 %
Breakdown torque 260 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 99.5 lb
Efficiency
50% 87.0
75% 87.0
100% 84.5
Power factor
50% 0.80
75% 0.88
100% 0.91
Electric Motors
Frame 182/4JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2840 rpm
Slip 5.33 %
Rated voltage 400 V
Rated current 10.3 A
L. R. Amperes 72.1 A
LRC 7.0x(Code H)
No load current 3.00 A
Rated torque 13.9 ft.lb
Locked rotor torque 250 %
Breakdown torque 280 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 99.5 lb
Efficiency
50% 87.5
75% 88.0
100% 86.0
Power factor
50% 0.77
75% 0.86
100% 0.90
Electric Motors
Frame 182/4JM
Output 7.5 HP (5.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2860 rpm
Slip 4.67 %
Rated voltage 415 V
Rated current 10.0 A
L. R. Amperes 74.0 A
LRC 7.4x(Code H)
No load current 3.20 A
Rated torque 13.8 ft.lb
Locked rotor torque 270 %
Breakdown torque 310 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.2242 sq.ft.lb
Design A
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 99.5 lb
Efficiency
50% 88.0
75% 88.5
100% 87.0
Power factor
50% 0.74
75% 0.84
100% 0.88
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Pump Seal Mechanical Seal
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
