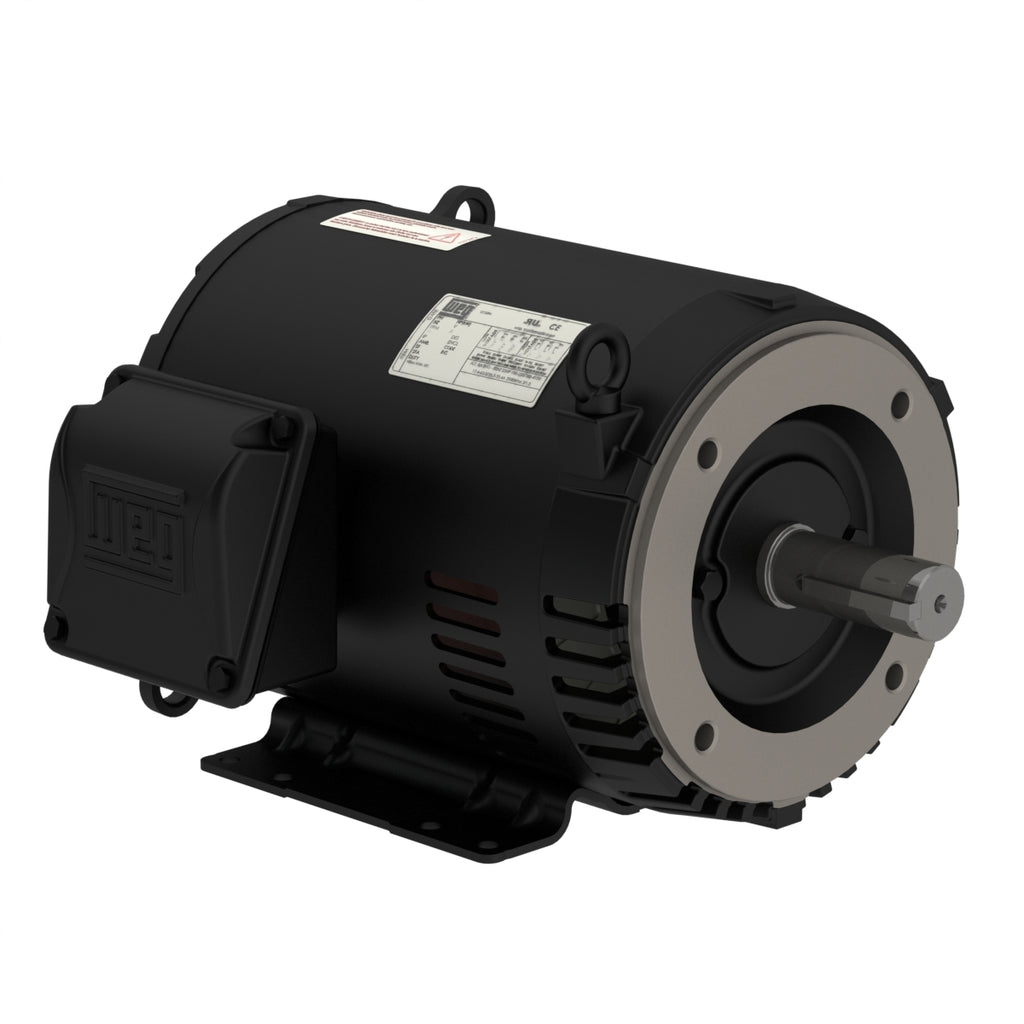

WEG 00718OT3E213TC-SG Rolled Steel NEMA Premium Efficiency 7.5 HP 4P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00718OT3E213TC-SG Rolled Steel NEMA Premium Efficiency 7.5 HP 4P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

WEG 00718OT3E213TC-SG Rolled Steel NEMA Premium Efficiency 7.5 HP 4P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 00718OT3E213TC-SG

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$1,033.29

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 4
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 18.5/9.25 A
L. R. Amperes 133/66.6 A
LRC 7.2x(Code H)
No load current 8.79/4.39 A
Rated torque 22.3 ft.lb
Locked rotor torque 240 %
Breakdown torque 320 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 1.03 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 125 lb
Efficiency
50% 89.5
75% 90.2
100% 91.0
Power factor
50% 0.65
75% 0.77
100% 0.82
Electric Motors
Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 190-220/380 V
Rated current 22.2-19.2/11.1 A
L. R. Amperes 129-111/64.4 A
LRC 5.8x(Code G)
No load current 8.64-7.47/4.32 A
Rated torque 27.1 ft.lb
Locked rotor torque 170 %
Breakdown torque 229 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.03 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 125 lb
Efficiency
50% 88.9
75% 88.5
100% 86.7
Power factor
50% 0.73
75% 0.83
100% 0.87
Electric Motors
Frame 213/5TC
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 415 V
Rated current 10.4 A
L. R. Amperes 71.8 A
LRC 6.9x(Code H)
No load current 5.02 A
Rated torque 26.9 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 1.03 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 125 lb
Efficiency
50% 88.2
75% 88.7
100% 87.8
Power factor
50% 0.65
75% 0.78
100% 0.84
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.377"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
