Description

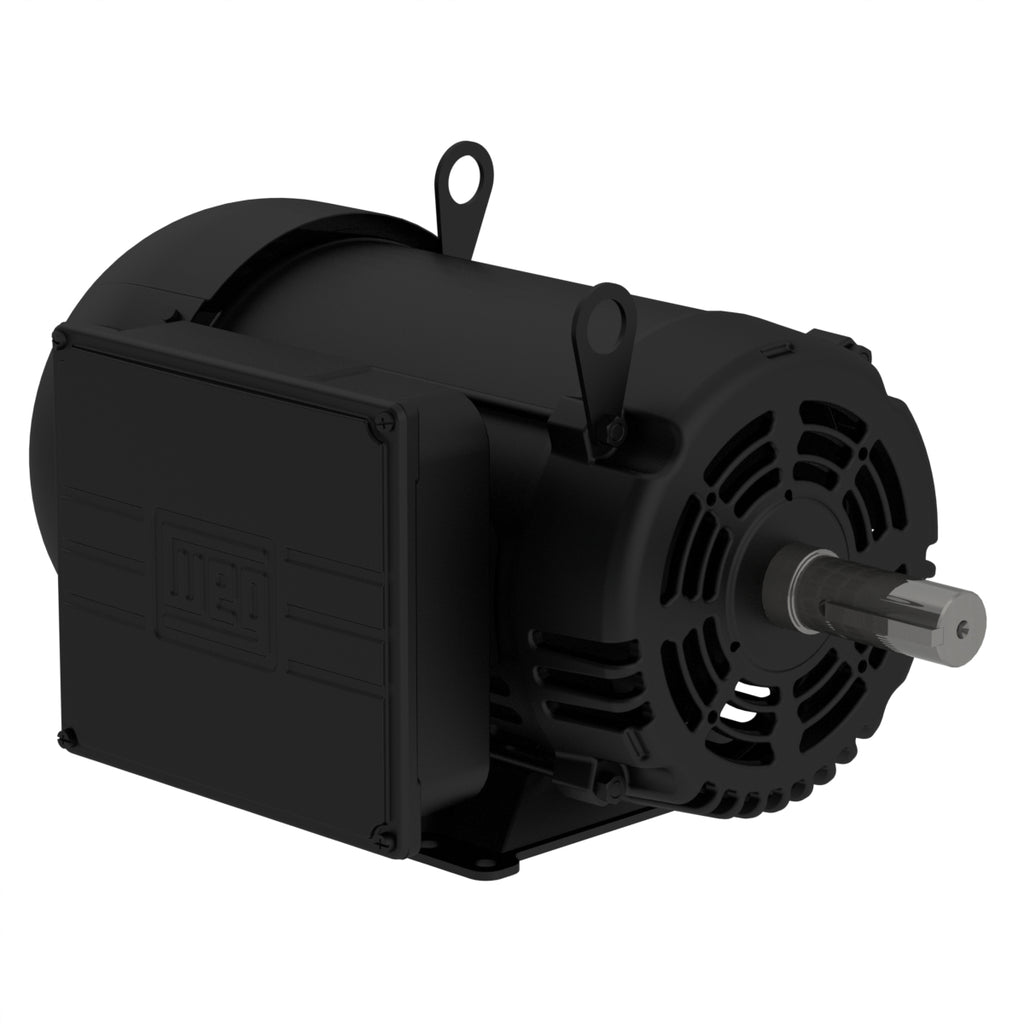

Motor with steel plate frame, for general use, developed to meet different applications with maximum performance and economy.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460 V |
| Number of poles | 4 |
| Degree of Protection | IP21 |
| Synchronous speed | 1800 rpm |
| Output rating | 7.5 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1760 rpm |
| Slip | 2.22 % |
| Rated voltage | 230/460 V |
| Rated current | 31.3/15.6 A |
| L. R. Amperes | 247/123 A |
| LRC | 7.9x(Code J) |
| No load current | 11.6/5.80 A |
| Rated torque | 22.4 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 250 % |
| Locked rotor time | 14s (cold) 8s (hot) |
| Moment of inertia (J) | 0.7451 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP21 |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | CCW |
| Approx. weight³ | 129 lb |
Efficiency
| 50% | 78.5 |
|---|---|
| 75% | 82.5 |
| 100% | 84.0 |
Power factor
| 50% | 0.75 |
|---|---|
| 75% | 0.86 |
| 100% | 0.91 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 3/4" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 3/4" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
