Description

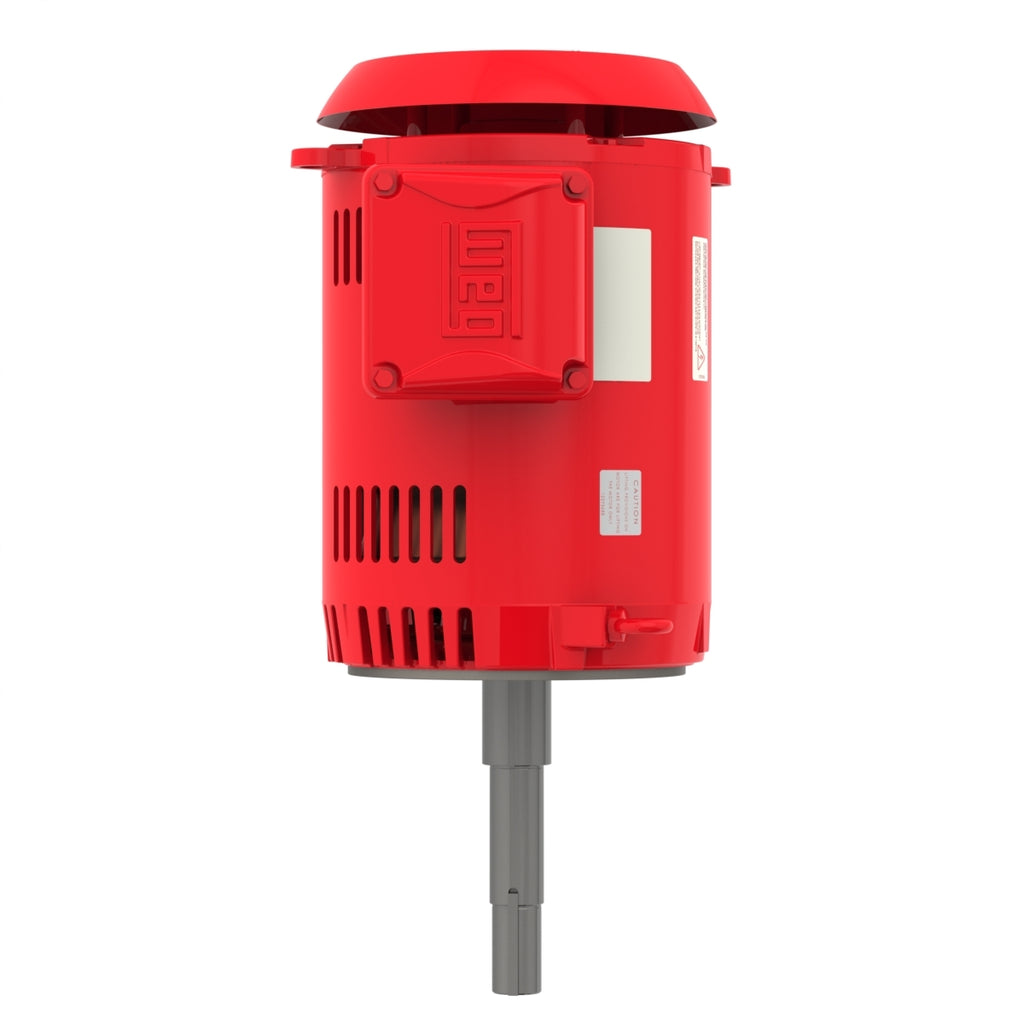

The W01 “JP” (gasket) motors were especially developed for fire pump application. They ensure maximum performance and robustness in environments where dirt and humidity are minimal.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//190-220/380-415 V |
| Number of poles | 4 |
| Synchronous speed | 1800 rpm |
| Output rating | 7.5 HP |
| Mounting | W-6 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC01 - ODP |
