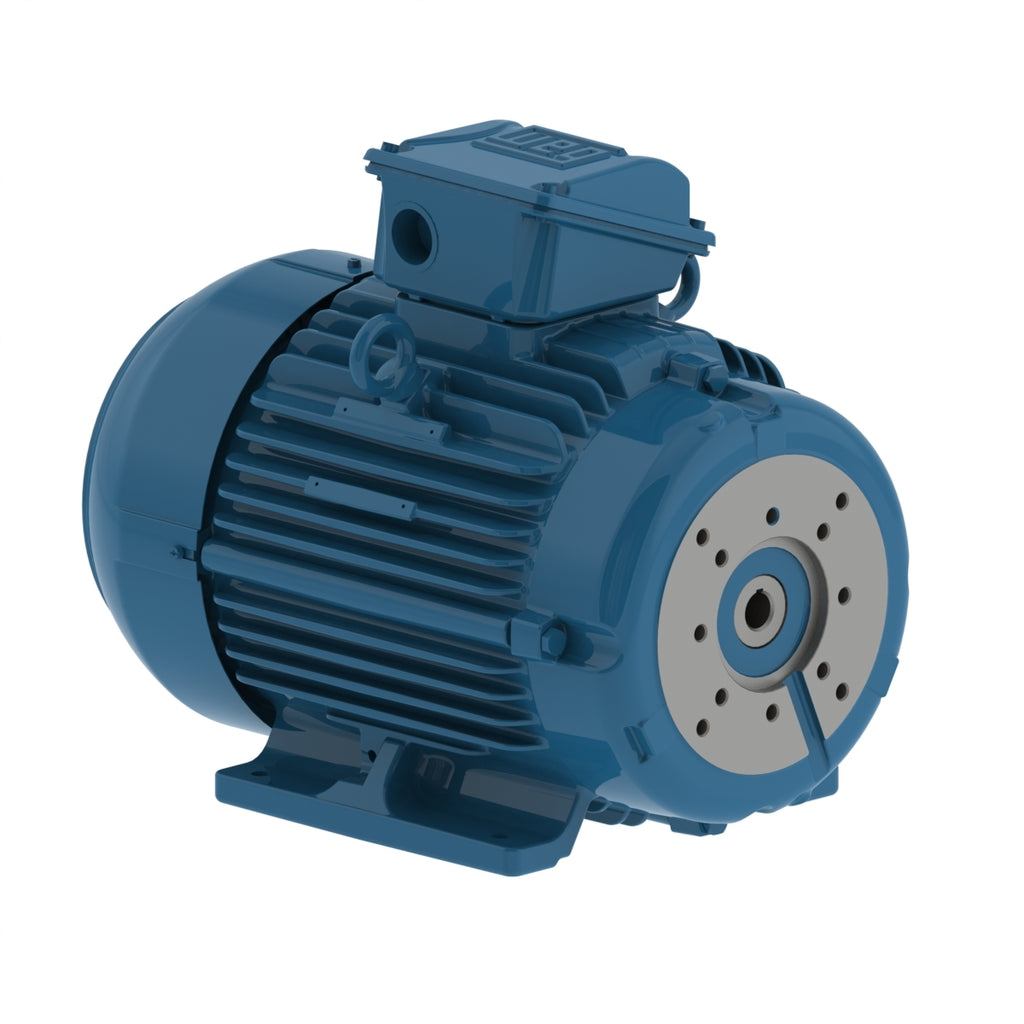

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 208-230/460 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 7.5 HP |
| Mounting | F-3 |
| Flange | Special |
| Terminal box¹ | Top |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 213TYZ |
|---|---|
| Output | 7.5 HP (5.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1775 rpm |
| Slip | 1.39 % |
| Rated voltage | 208-230/460 V |
| Rated current | 24.0-21.7/10.9 A |
| L. R. Amperes | 209-189/94.8 A |
| LRC | 8.7x(Code M) |
| No load current | 16.8-15.2/7.60 A |
| Rated torque | 22.2 ft.lb |
| Locked rotor torque | 290 % |
| Breakdown torque | 409 % |
| Locked rotor time | 25s (cold) 14s (hot) |
| Moment of inertia (J) | 1.17 sq.ft.lb |
| Design | A |
| Insulation Class | F |
| Temperature rise | 80 K |
| Duty Cycle | S3 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-3 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 58.0 dB(A) |
| Approx. weight³ | 150 lb |
Efficiency
| 50% | 84.0 |
|---|---|
| 75% | 87.5 |
| 100% | 89.5 |
Power factor
| 50% | 0.48 |
|---|---|
| 75% | 0.62 |
| 100% | 0.71 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
