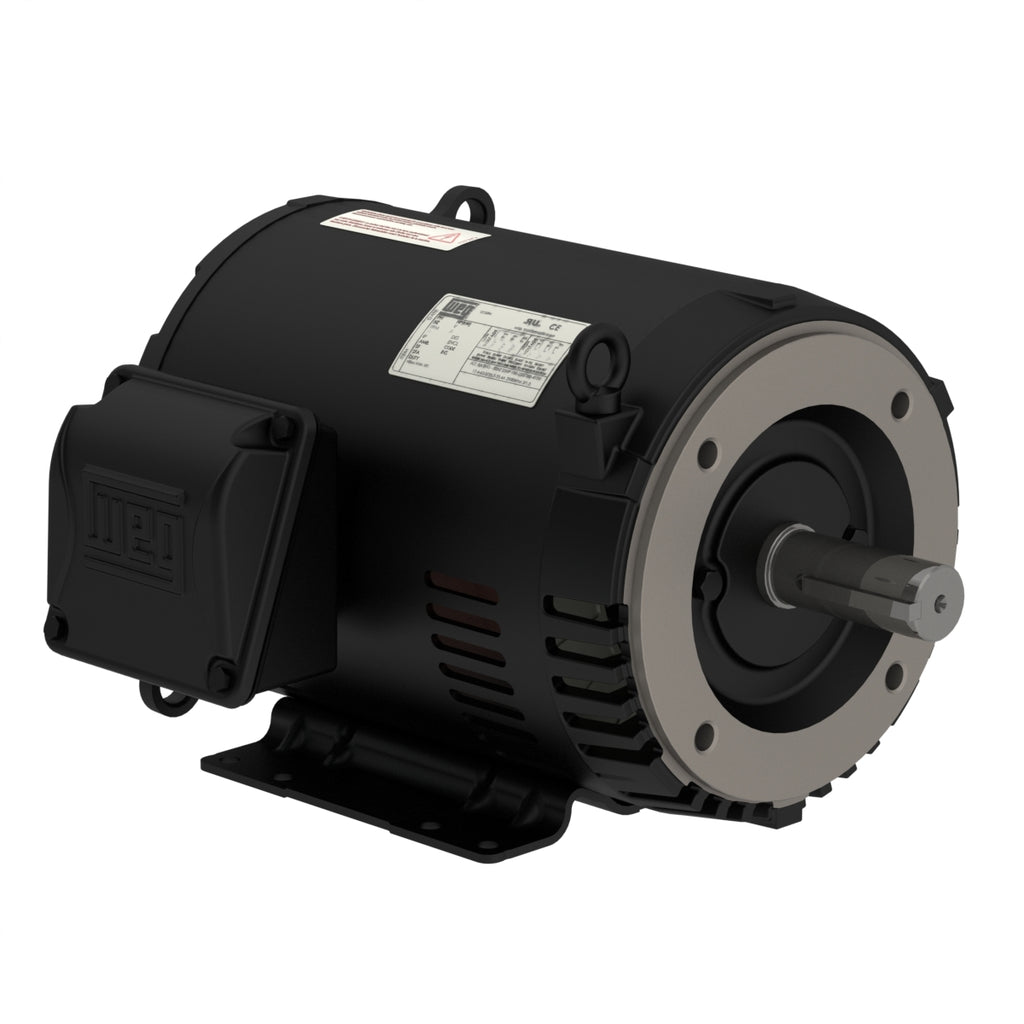

WEG 00712OT3E254TC-S Rolled Steel NEMA Premium Efficiency 7.5 HP 6P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00712OT3E254TC-S Rolled Steel NEMA Premium Efficiency 7.5 HP 6P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

WEG 00712OT3E254TC-S Rolled Steel NEMA Premium Efficiency 7.5 HP 6P 254/6TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 00712OT3E254TC-S

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$1,366.15

Description

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 6
Synchronous speed 1200 rpm
Output rating 7.5 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC01 - ODP


Electric Motors
Frame 254/6TC
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1175 rpm
Slip 2.08 %
Rated voltage 230/460 V
Rated current 20.4/10.2 A
L. R. Amperes 104/52.0 A
LRC 5.1x(Code F)
No load current 10.7/5.37 A
Rated torque 33.5 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 66s (cold) 37s (hot)
Moment of inertia (J) 2.00 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 202 lb
Efficiency
50% 88.5
75% 90.2
100% 90.2
Power factor
50% 0.56
75% 0.68
100% 0.75
Electric Motors
Frame 254/6TC
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 190-220/380 V
Rated current 24.4-21.1/12.2 A
L. R. Amperes 97.6-84.3/48.8 A
LRC 4.0x(Code D)
No load current 10.6-9.15/5.30 A
Rated torque 40.6 ft.lb
Locked rotor torque 140 %
Breakdown torque 180 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 2.00 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 202 lb
Efficiency
50% 89.3
75% 89.1
100% 88.0
Power factor
50% 0.63
75% 0.74
100% 0.78
Electric Motors
Frame 254/6TC
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 415 V
Rated current 11.5 A
L. R. Amperes 55.2 A
LRC 4.8x(Code F)
No load current 6.11 A
Rated torque 40.4 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 0s (cold) 0s (hot)
Moment of inertia (J) 2.00 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 202 lb
Efficiency
50% 88.6
75% 89.3
100% 88.5
Power factor
50% 0.56
75% 0.69
100% 0.75
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 1.732"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Superior
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
