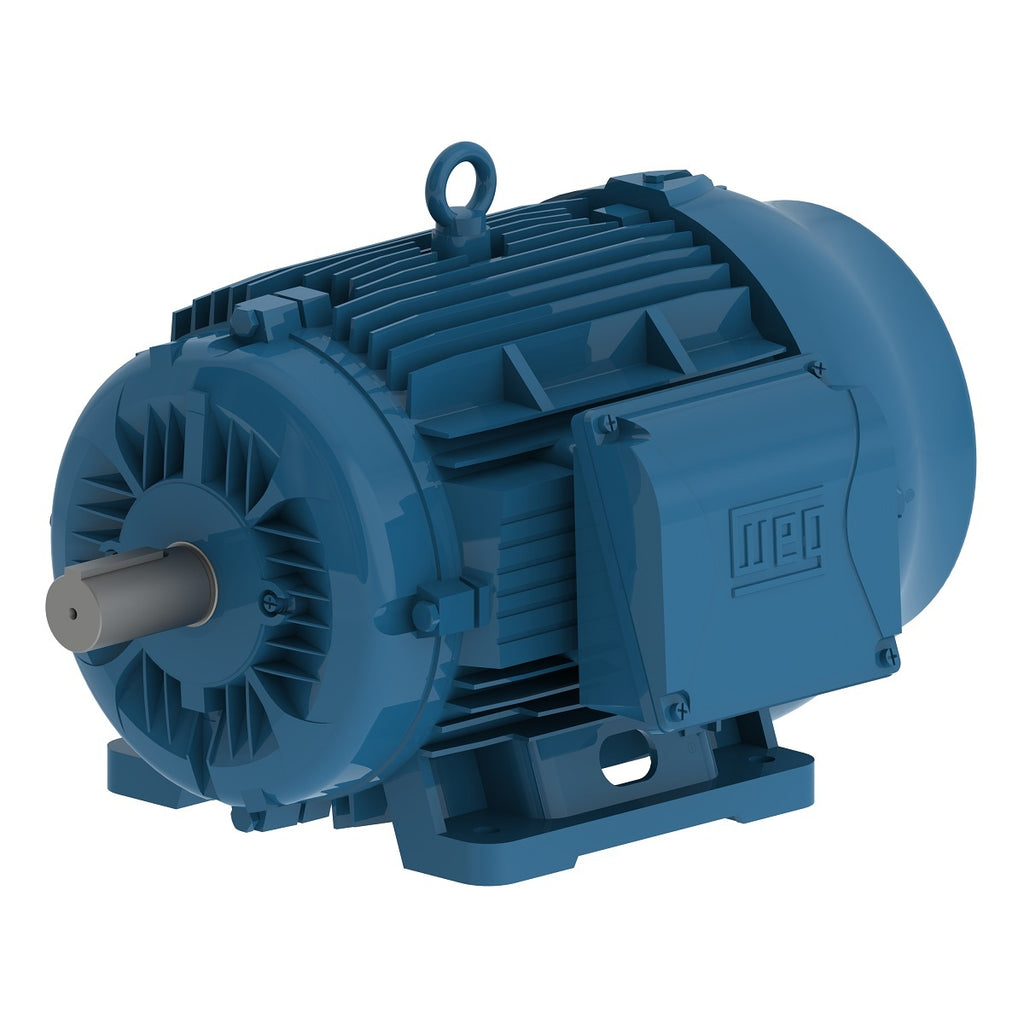

WEG 00712ET3Y160M-W22 W22 Tru-Metric IE3 10 HP 6P 160M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 00712ET3Y160M-W22 W22 Tru-Metric IE3 10 HP 6P 160M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 00712ET3Y160M-W22 W22 Tru-Metric IE3 10 HP 6P 160M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 00712ET3Y160M-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$2,052.34

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 10 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 160M
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 460 V
Rated current 13.8 A
L. R. Amperes 102 A
LRC 7.4
No load current 7.50 A
Rated torque 44.5 ft.lb
Locked rotor torque 300 %
Breakdown torque 350 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 2.90 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 284 lb
Efficiency
50% 87.5
75% 89.5
100% 91.0
Power factor
50% 0.59
75% 0.69
100% 0.75
Electric Motors
Frame 160M
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 16.0 A
L. R. Amperes 96.0 A
LRC 6.0
No load current 7.20 A
Rated torque 54.1 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 2.90 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 284 lb
Efficiency
50% 89.8
75% 90.3
100% 90.4
Power factor
50% 0.67
75% 0.74
100% 0.79
Electric Motors
Frame 160M
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 400 V
Rated current 15.5 A
L. R. Amperes 101 A
LRC 6.5
No load current 7.70 A
Rated torque 53.9 ft.lb
Locked rotor torque 240 %
Breakdown torque 290 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 2.90 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 284 lb
Efficiency
50% 89.3
75% 90.3
100% 90.7
Power factor
50% 0.63
75% 0.71
100% 0.77
Electric Motors
Frame 160M
Output 10 HP (7.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 415 V
Rated current 15.3 A
L. R. Amperes 107 A
LRC 7.0
No load current 8.20 A
Rated torque 53.9 ft.lb
Locked rotor torque 270 %
Breakdown torque 310 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 2.90 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 57.0 dB(A)
Approx. weight³ 284 lb
Efficiency
50% 88.8
75% 90.2
100% 90.8
Power factor
50% 0.60
75% 0.68
100% 0.75
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole 2xM40x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
