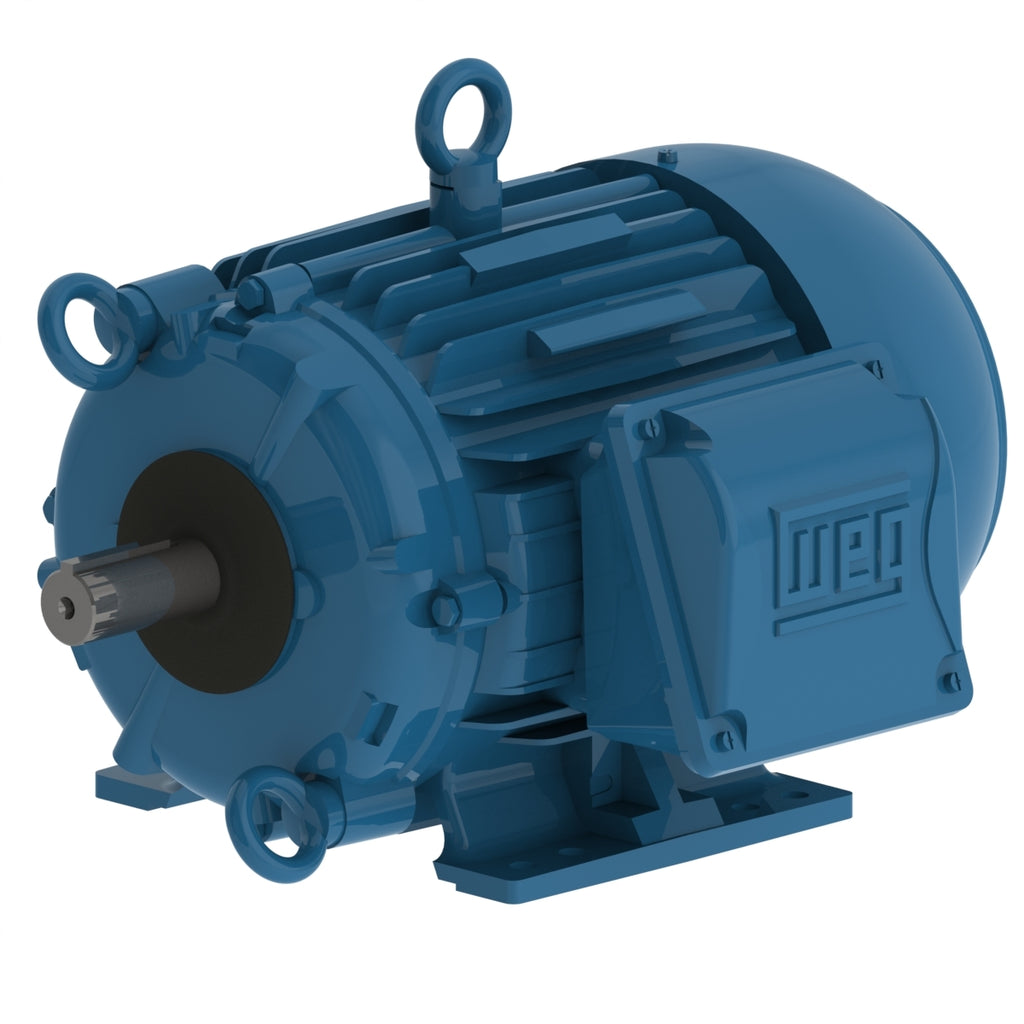

WEG 00712ET3HCT254T-W22 W22 Cooling Tower NEMA Premium Efficiency 7.5 HP 6P 254T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00712ET3HCT254T-W22 W22 Cooling Tower NEMA Premium Efficiency 7.5 HP 6P 254T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

WEG 00712ET3HCT254T-W22 W22 Cooling Tower NEMA Premium Efficiency 7.5 HP 6P 254T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 00712ET3HCT254T-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$2,165.37

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 7.5 HP
Mounting F-2
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC
Electric Motors
Frame 254T
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1178 rpm
Slip 1.83 %
Rated voltage 575 V
Rated current 7.58 A
L. R. Amperes 51.6 A
LRC 6.8x(Code H)
No load current 3.60 A
Rated torque 33.4 ft.lb
Locked rotor torque 250 %
Breakdown torque 300 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 3.92 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 59.0 dB(A)
Approx. weight³ 288 lb
Efficiency
50% 89.5
75% 90.2
100% 91.0
Power factor
50% 0.63
75% 0.74
100% 0.80
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
