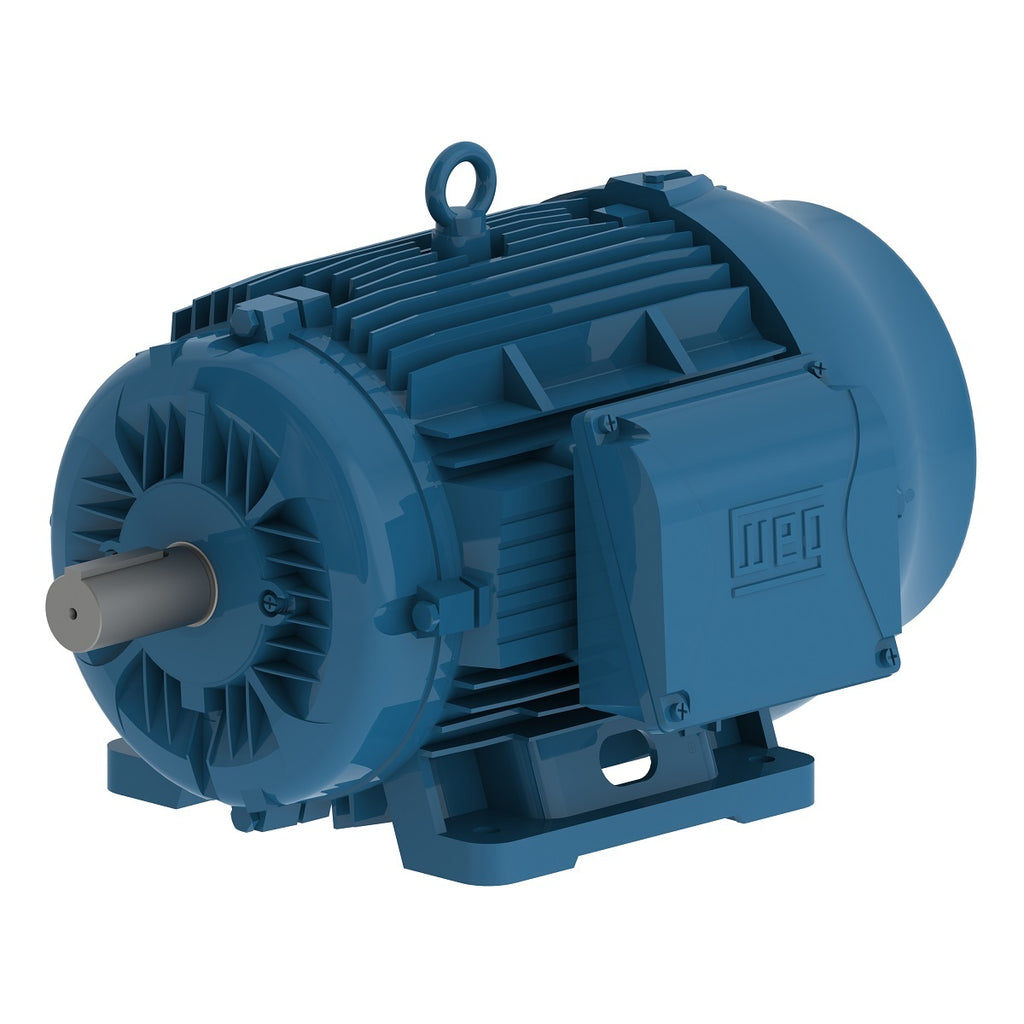

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460//380-415 V |
| Number of poles | 6 |
| Degree of Protection | IP55 |
| Synchronous speed | 1200 rpm |
| Output rating | 10 HP |
| Mounting | B3L(E) |
| Flange | Without |
| Terminal box¹ | Right position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 160M |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 6 |
| Frequency | 60 Hz |
| Rated speed | 1180 rpm |
| Slip | 1.67 % |
| Rated voltage | 230/460 V |
| Rated current | 27.6/13.8 A |
| L. R. Amperes | 204/102 A |
| LRC | 7.4 |
| No load current | 15.0/7.50 A |
| Rated torque | 44.5 ft.lb |
| Locked rotor torque | 270 % |
| Breakdown torque | 350 % |
| Locked rotor time | 45s (cold) 25s (hot) |
| Moment of inertia (J) | 2.90 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 59.0 dB(A) |
| Approx. weight³ | 269 lb |
Efficiency
| 50% | 87.5 |
|---|---|
| 75% | 89.5 |
| 100% | 91.0 |
Power factor
| 50% | 0.59 |
|---|---|
| 75% | 0.69 |
| 100% | 0.75 |
Electric Motors
| Frame | 160M |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 970 rpm |
| Slip | 3.00 % |
| Rated voltage | 380 V |
| Rated current | 16.0 A |
| L. R. Amperes | 104 A |
| LRC | 6.5 |
| No load current | 6.00 A |
| Rated torque | 54.1 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 260 % |
| Locked rotor time | 36s (cold) 20s (hot) |
| Moment of inertia (J) | 2.90 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 57.0 dB(A) |
| Approx. weight³ | 269 lb |
Efficiency
| 50% | 89.8 |
|---|---|
| 75% | 90.3 |
| 100% | 90.4 |
Power factor
| 50% | 0.67 |
|---|---|
| 75% | 0.74 |
| 100% | 0.79 |
Electric Motors
| Frame | 160M |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 6 |
| Frequency | 50 Hz |
| Rated speed | 975 rpm |
| Slip | 2.50 % |
| Rated voltage | 415 V |
| Rated current | 15.3 A |
| L. R. Amperes | 99.5 A |
| LRC | 6.5 |
| No load current | 6.90 A |
| Rated torque | 53.9 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 310 % |
| Locked rotor time | 36s (cold) 20s (hot) |
| Moment of inertia (J) | 2.90 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | B3L(E) |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 57.0 dB(A) |
| Approx. weight³ | 269 lb |
Efficiency
| 50% | 88.8 |
|---|---|
| 75% | 90.2 |
| 100% | 90.8 |
Power factor
| 50% | 0.60 |
|---|---|
| 75% | 0.68 |
| 100% | 0.75 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Regreasing System | At Drive end and Non-drive end |
| Main terminal box hole | 2xM40x1,5 |
| Terminal Block | BMC - 6 pins |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 203A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Cast Iron |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | Yes- Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 12 |
