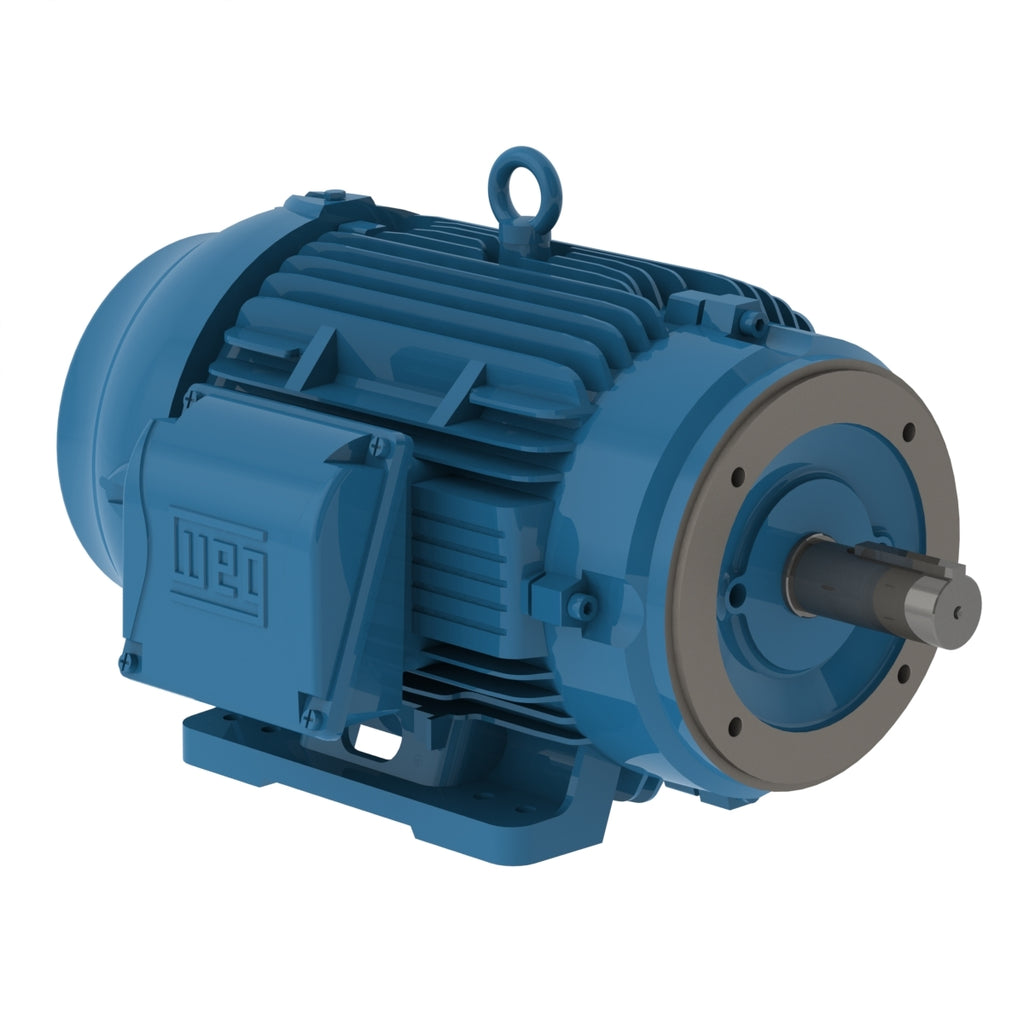

WEG 00709ET3E256TC-W22 W22 NEMA Premium Efficiency 7.5 HP 8P 254/6TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00709ET3E256TC-W22 W22 NEMA Premium Efficiency 7.5 HP 8P 254/6TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 00709ET3E256TC-W22 W22 NEMA Premium Efficiency 7.5 HP 8P 254/6TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 00709ET3E256TC-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$3,316.14

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 7.5 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 254/6TC
Output 7.5 HP (5.5 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 22.2/11.1 A
L. R. Amperes 118/58.8 A
LRC 5.3x(Code G)
No load current 13.0/6.50 A
Rated torque 44.8 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 299 lb
Efficiency
50% 85.5
75% 87.5
100% 87.5
Power factor
50% 0.50
75% 0.63
100% 0.71
Electric Motors
Frame 254/6TC
Output 5.5 HP (4 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 10.4 A
L. R. Amperes 56.1 A
LRC 5.4x(Code H)
No load current 6.40 A
Rated torque 39.6 ft.lb
Locked rotor torque 210 %
Breakdown torque 260 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 299 lb
Efficiency
50% 84.1
75% 85.7
100% 85.5
Power factor
50% 0.47
75% 0.60
100% 0.69
Electric Motors
Frame 254/6TC
Output 5.5 HP (4 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 400 V
Rated current 10.5 A
L. R. Amperes 58.7 A
LRC 5.6x(Code J)
No load current 6.90 A
Rated torque 39.6 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 299 lb
Efficiency
50% 81.6
75% 84.5
100% 85.5
Power factor
50% 0.44
75% 0.56
100% 0.65
Electric Motors
Frame 254/6TC
Output 5.5 HP (4 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 735 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 10.4 A
L. R. Amperes 62.5 A
LRC 6.0x(Code K)
No load current 7.30 A
Rated torque 39.3 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 299 lb
Efficiency
50% 81.4
75% 84.5
100% 85.5
Power factor
50% 0.42
75% 0.54
100% 0.63
Electric Motors
Frame 254/6TC
Output 7.5 HP (5.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 720 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 13.1 A
L. R. Amperes 56.3 A
LRC 4.3x(Code E)
No load current 6.40 A
Rated torque 54.7 ft.lb
Locked rotor torque 150 %
Breakdown torque 190 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 299 lb
Efficiency
50% 85.5
75% 85.5
100% 84.0
Power factor
50% 0.57
75% 0.69
100% 0.76
Electric Motors
Frame 254/6TC
Output 7.5 HP (5.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 725 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 12.5 A
L. R. Amperes 58.7 A
LRC 4.7x(Code F)
No load current 6.90 A
Rated torque 54.3 ft.lb
Locked rotor torque 170 %
Breakdown torque 210 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 299 lb
Efficiency
50% 84.0
75% 85.5
100% 85.5
Power factor
50% 0.53
75% 0.66
100% 0.74
Electric Motors
Frame 254/6TC
Output 7.5 HP (5.5 kW)
Number of Poles 8
Frequency 50 Hz
Rated speed 730 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 12.4 A
L. R. Amperes 62.0 A
LRC 5.0x(Code G)
No load current 7.30 A
Rated torque 54.0 ft.lb
Locked rotor torque 190 %
Breakdown torque 229 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 4.43 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 51.0 dB(A)
Approx. weight³ 299 lb
Efficiency
50% 84.0
75% 85.5
100% 85.5
Power factor
50% 0.51
75% 0.64
100% 0.72
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 1 1/2"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
