Description

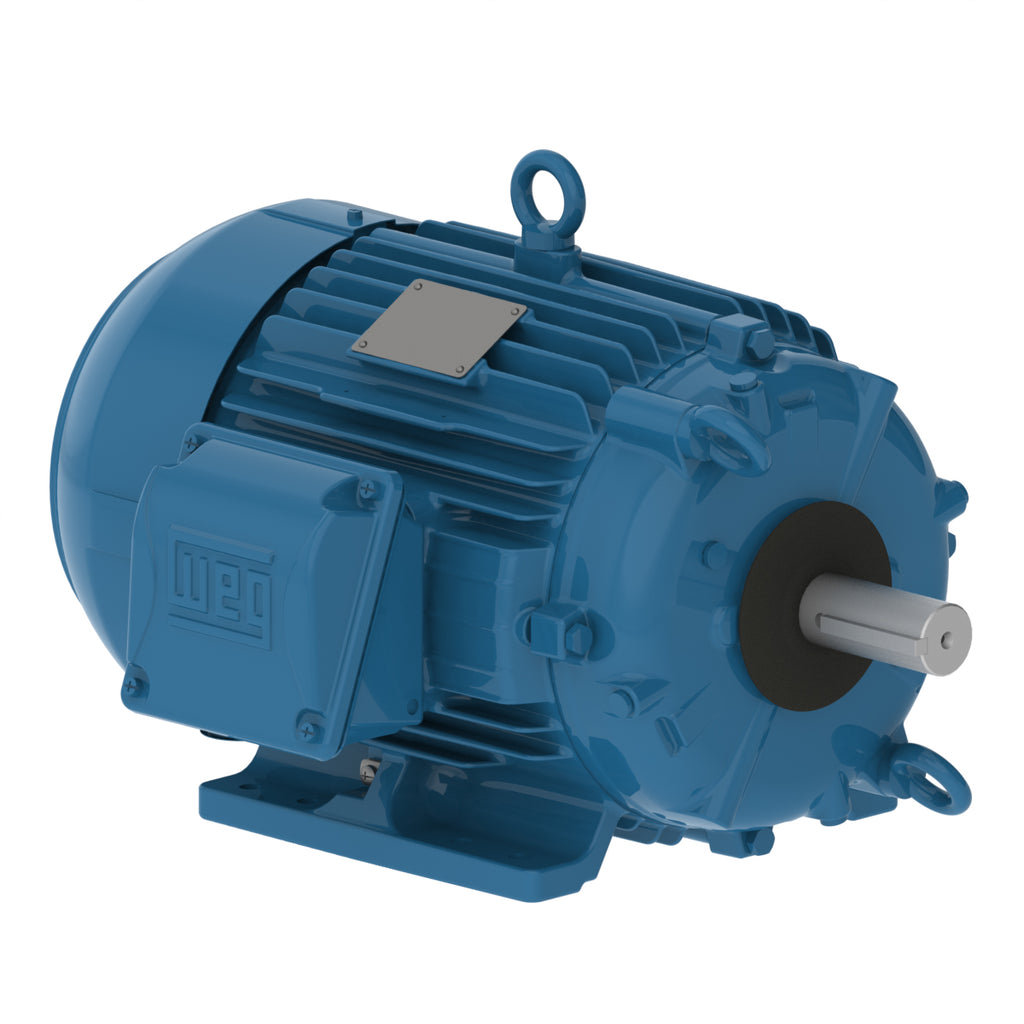

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 460 V |
| Number of poles | 8/4 |
| Degree of Protection | IP55 |
| Synchronous speed | 900/1800 rpm |
| Output rating | 1.25/5.0 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 8/4 |
| Frequency | 60 Hz |
| Rated speed | 1780 rpm |
| Slip | 1.11 % |
| Rated voltage | 460 V |
| Rated current | 6.55 A |
| L. R. Amperes | 64.8 A |
| LRC | 9.9x(Code M) |
| No load current | 3.90 A |
| Rated torque | 14.8 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 300 % |
| Locked rotor time | 18s (cold) 10s (hot) |
| Moment of inertia (J) | 1.56 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 61.0 dB(A) |
| Approx. weight³ | 2.2 lb |
Efficiency
| 50% | 84.0 |
|---|---|
| 75% | 86.5 |
| 100% | 88.5 |
Power factor
| 50% | 0.61 |
|---|---|
| 75% | 0.72 |
| 100% | 0.80 |
Electric Motors
| Frame | 213/5T |
|---|---|
| Output | 1.25 HP (0.92 kW) |
| Number of Poles | 8/4 |
| Frequency | 60 Hz |
| Rated speed | 890 rpm |
| Slip | 1.11 % |
| Rated voltage | 460 V |
| Rated current | 3.13 A |
| L. R. Amperes | 14.1 A |
| LRC | 4.5x(Code K) |
| No load current | 3.00 A |
| Rated torque | 7.38 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 270 % |
| Locked rotor time | 46s (cold) 26s (hot) |
| Moment of inertia (J) | 1.56 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 52.0 dB(A) |
| Approx. weight³ | 2.2 lb |
Efficiency
| 50% | 68.0 |
|---|---|
| 75% | 74.0 |
| 100% | 77.0 |
Power factor
| 50% | 0.30 |
|---|---|
| 75% | 0.39 |
| 100% | 0.48 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Double impregnation polyester |
| Space Heater Voltage | 110-127/200-240 V |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 202E (ISO 12944 - C4) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Complete (200h) |
| Joints Seal | Permatex |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
