Description

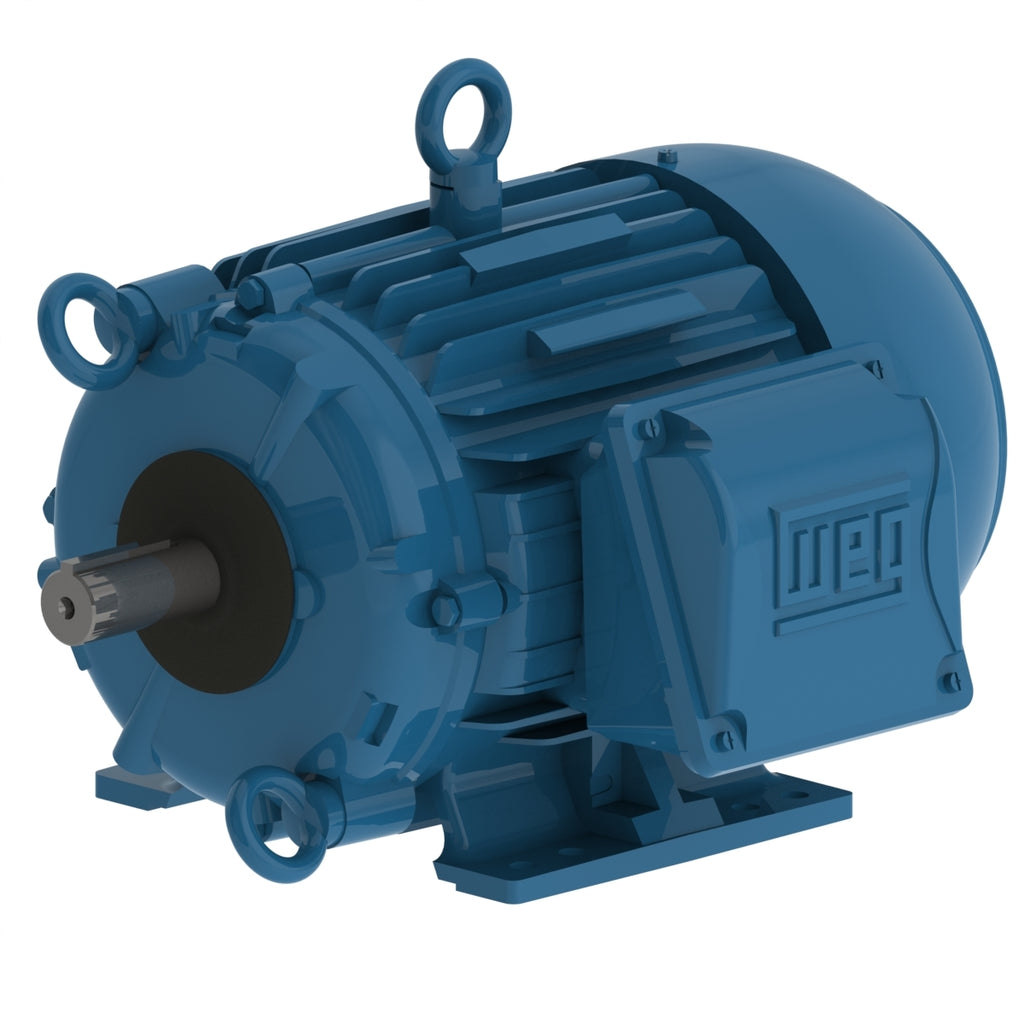

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 460 V |
| Number of poles | 8/4 |
| Degree of Protection | IP55 |
| Synchronous speed | 900/1800 rpm |
| Output rating | 1.25/5.0 HP |
| Mounting | F-2 |
| Flange | Without |
| Terminal box¹ | Right position |
| Enclosure | IC411 - TEFC |
Electric Motors
| Frame | 182/4T |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 8/4 |
| Frequency | 60 Hz |
| Rated speed | 1750 rpm |
| Slip | 2.78 % |
| Rated voltage | 460 V |
| Rated current | 6.67 A |
| L. R. Amperes | 49.4 A |
| LRC | 7.4x(Code J) |
| No load current | 3.70 A |
| Rated torque | 15.0 ft.lb |
| Locked rotor torque | 200 % |
| Breakdown torque | 300 % |
| Locked rotor time | 12s (cold) 7s (hot) |
| Moment of inertia (J) | 0.4461 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-2 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 58.0 dB(A) |
| Approx. weight³ | 102 lb |
Efficiency
| 50% | 84.0 |
|---|---|
| 75% | 86.5 |
| 100% | 87.0 |
Power factor
| 50% | 0.58 |
|---|---|
| 75% | 0.72 |
| 100% | 0.80 |
Electric Motors
| Frame | 182/4T |
|---|---|
| Output | 1.25 HP (0.92 kW) |
| Number of Poles | 8/4 |
| Frequency | 60 Hz |
| Rated speed | 870 rpm |
| Slip | 3.33 % |
| Rated voltage | 460 V |
| Rated current | 3.00 A |
| L. R. Amperes | 10.2 A |
| LRC | 3.4x(Code H) |
| No load current | 2.40 A |
| Rated torque | 7.54 ft.lb |
| Locked rotor torque | 120 % |
| Breakdown torque | 220 % |
| Locked rotor time | 81s (cold) 45s (hot) |
| Moment of inertia (J) | 0.4461 sq.ft.lb |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-2 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 50.0 dB(A) |
| Approx. weight³ | 102 lb |
Efficiency
| 50% | 66.0 |
|---|---|
| 75% | 72.0 |
| 100% | 74.0 |
Power factor
| 50% | 0.34 |
|---|---|
| 75% | 0.44 |
| 100% | 0.52 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Double impregnation polyester |
| Space Heater Voltage | 110-127/200-240 V |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 202E (ISO 12944 - C4) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Complete (200h) |
| Joints Seal | Permatex |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
