Description

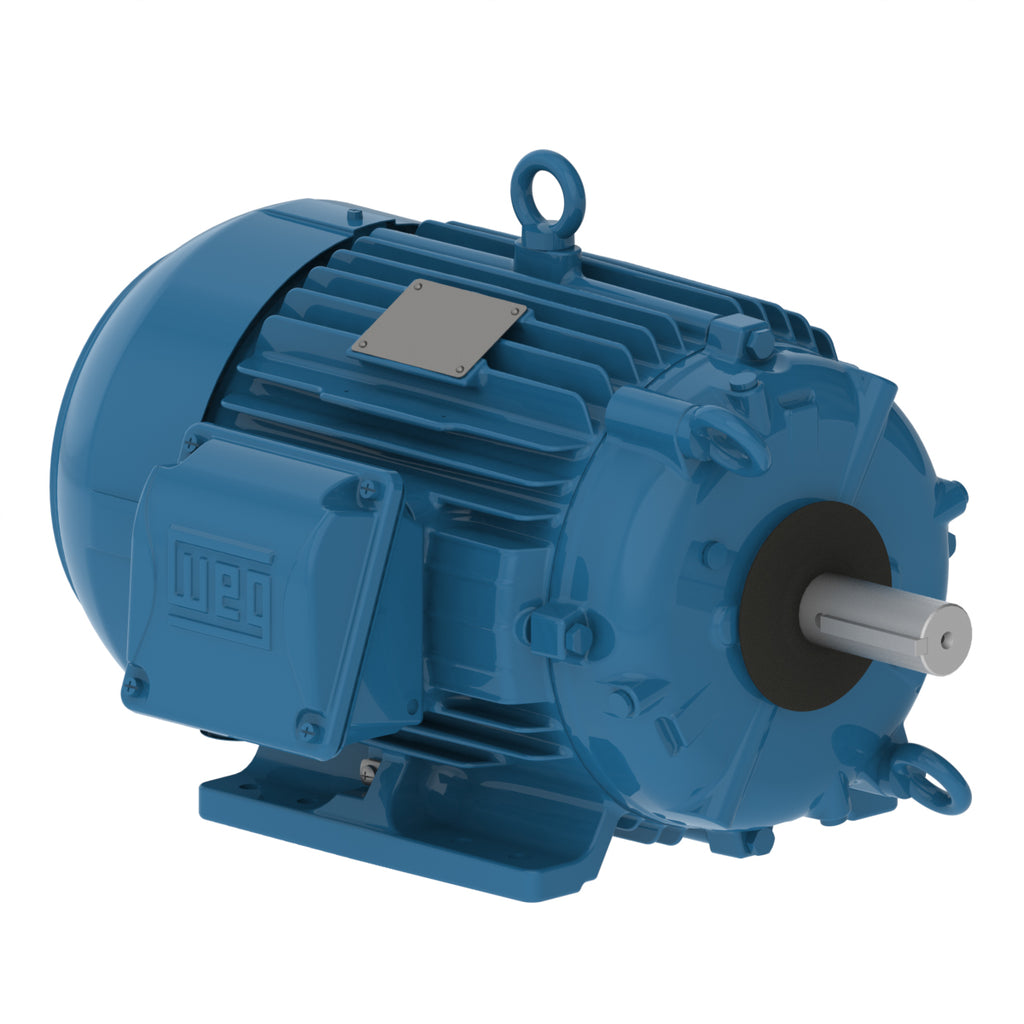

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 200 V |
| Number of poles | 8/4 |
| Degree of Protection | IP55 |
| Synchronous speed | 900/1800 rpm |
| Output rating | 1.25/5.0 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC411 - TEFC |
