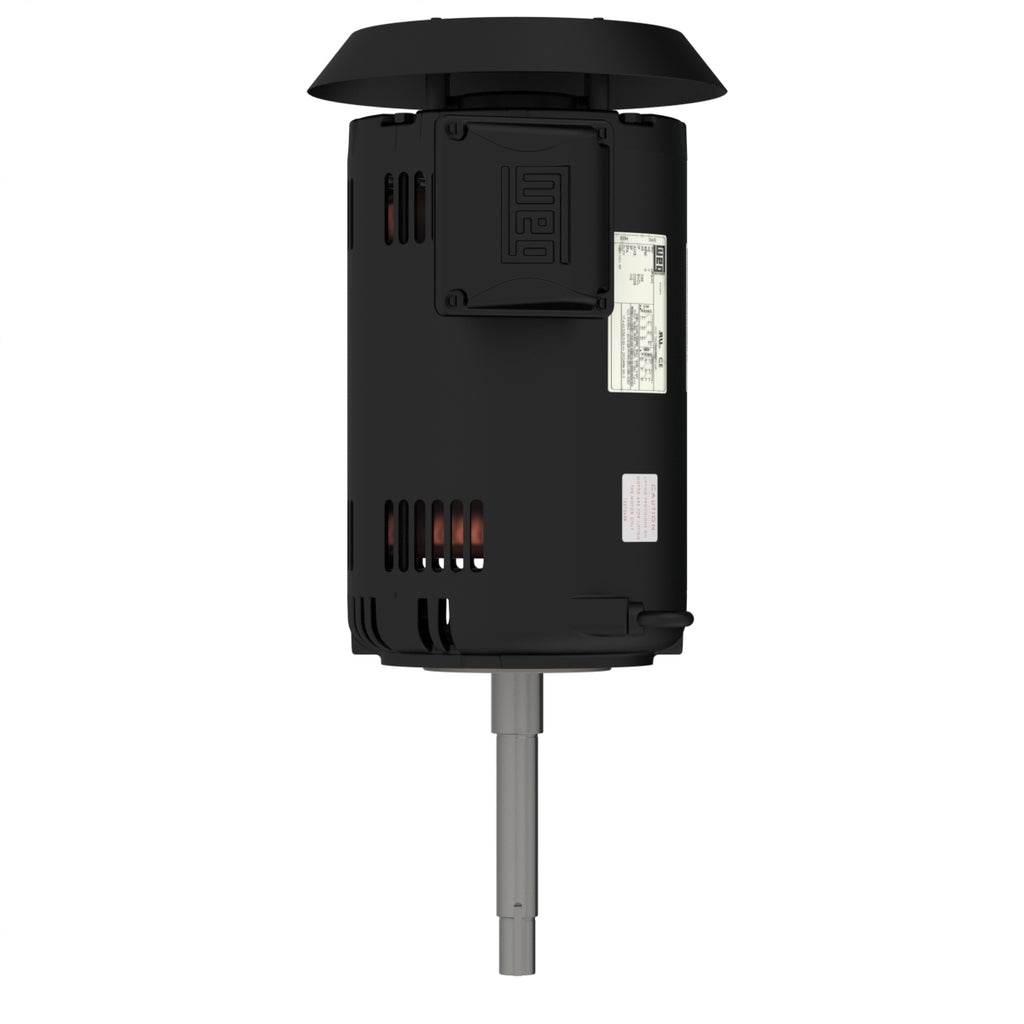

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//190-220/380-415 V |
| Number of poles | 2 |
| Synchronous speed | 3600 rpm |
| Output rating | 5 HP |
| Mounting | W-6 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 182/4JP |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3510 rpm |
| Slip | 2.50 % |
| Rated voltage | 230/460 V |
| Rated current | 12.2/6.10 A |
| L. R. Amperes | 92.7/46.4 A |
| LRC | 7.6x(Code J) |
| No load current | 5.15/2.58 A |
| Rated torque | 7.48 ft.lb |
| Locked rotor torque | 190 % |
| Breakdown torque | 300 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.1386 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 65.0 dB(A) |
| Approx. weight³ | 62.1 lb |
Efficiency
| 50% | 85.5 |
|---|---|
| 75% | 86.5 |
| 100% | 86.5 |
Power factor
| 50% | 0.73 |
|---|---|
| 75% | 0.83 |
| 100% | 0.88 |
Electric Motors
| Frame | 182/4JP |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2885 rpm |
| Slip | 3.83 % |
| Rated voltage | 190-220/380 V |
| Rated current | 14.7-12.7/7.37 A |
| L. R. Amperes | 85.5-73.8/42.7 A |
| LRC | 5.8x(Code G) |
| No load current | 5.05-4.36/2.53 A |
| Rated torque | 9.10 ft.lb |
| Locked rotor torque | 150 % |
| Breakdown torque | 220 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 0.1386 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 62.1 lb |
Efficiency
| 50% | 86.5 |
|---|---|
| 75% | 86.0 |
| 100% | 83.8 |
Power factor
| 50% | 0.79 |
|---|---|
| 75% | 0.88 |
| 100% | 0.91 |
Electric Motors
| Frame | 182/4JP |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 2 |
| Frequency | 50 Hz |
| Rated speed | 2905 rpm |
| Slip | 3.17 % |
| Rated voltage | 415 V |
| Rated current | 6.87 A |
| L. R. Amperes | 47.4 A |
| LRC | 6.9x(Code H) |
| No load current | 3.13 A |
| Rated torque | 9.04 ft.lb |
| Locked rotor torque | 180 % |
| Breakdown torque | 270 % |
| Locked rotor time | 0s (cold) 0s (hot) |
| Moment of inertia (J) | 0.1386 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.00 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | W-6 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 62.1 lb |
Efficiency
| 50% | 85.4 |
|---|---|
| 75% | 86.2 |
| 100% | 85.2 |
Power factor
| 50% | 0.71 |
|---|---|
| 75% | 0.83 |
| 100% | 0.88 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 1.118" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | With |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
