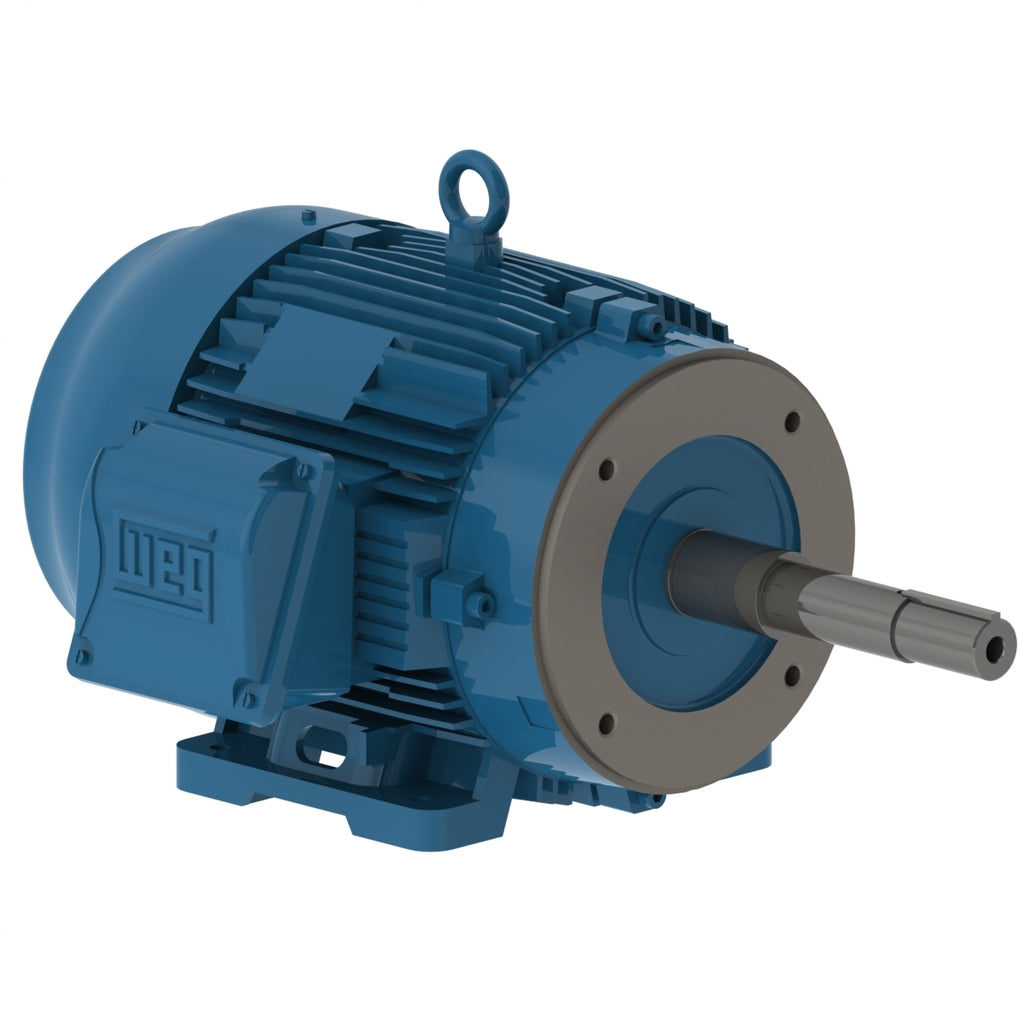

WEG 00536ET3E184JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 5 HP 2P 182/4JP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00536ET3E184JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 5 HP 2P 182/4JP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 00536ET3E184JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 5 HP 2P 182/4JP 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 00536ET3E184JP-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$973.66

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 5 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 182/4JP
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 230/460 V
Rated current 11.8/5.90 A
L. R. Amperes 89.7/44.8 A
LRC 7.6x(Code J)
No load current 4.00/2.00 A
Rated torque 7.53 ft.lb
Locked rotor torque 229 %
Breakdown torque 350 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 93.9 lb
Efficiency
50% 86.5
75% 88.5
100% 88.5
Power factor
50% 0.76
75% 0.85
100% 0.89
Electric Motors
Frame 182/4JP
Output 4 HP (3 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2890 rpm
Slip 3.67 %
Rated voltage 380 V
Rated current 5.79 A
L. R. Amperes 42.8 A
LRC 7.4x(Code H)
No load current 2.00 A
Rated torque 7.27 ft.lb
Locked rotor torque 229 %
Breakdown torque 320 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 93.9 lb
Efficiency
50% 86.3
75% 87.7
100% 87.5
Power factor
50% 0.74
75% 0.85
100% 0.90
Electric Motors
Frame 182/4JP
Output 4 HP (3 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2900 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 5.57 A
L. R. Amperes 45.1 A
LRC 8.1x(Code J)
No load current 2.15 A
Rated torque 7.24 ft.lb
Locked rotor torque 270 %
Breakdown torque 370 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 93.9 lb
Efficiency
50% 86.3
75% 88.2
100% 88.3
Power factor
50% 0.71
75% 0.83
100% 0.88
Electric Motors
Frame 182/4JP
Output 4 HP (3 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2910 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 5.43 A
L. R. Amperes 48.3 A
LRC 8.9x(Code K)
No load current 2.25 A
Rated torque 7.22 ft.lb
Locked rotor torque 300 %
Breakdown torque 400 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 93.9 lb
Efficiency
50% 86.1
75% 88.2
100% 88.3
Power factor
50% 0.68
75% 0.81
100% 0.87
Electric Motors
Frame 182/4JP
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2850 rpm
Slip 5.00 %
Rated voltage 380 V
Rated current 7.14 A
L. R. Amperes 42.1 A
LRC 5.9x(Code F)
No load current 2.00 A
Rated torque 9.21 ft.lb
Locked rotor torque 180 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 93.9 lb
Efficiency
50% 87.5
75% 87.5
100% 86.5
Power factor
50% 0.81
75% 0.88
100% 0.91
Electric Motors
Frame 182/4JP
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2870 rpm
Slip 4.33 %
Rated voltage 400 V
Rated current 6.78 A
L. R. Amperes 44.7 A
LRC 6.6x(Code G)
No load current 2.15 A
Rated torque 9.15 ft.lb
Locked rotor torque 210 %
Breakdown torque 290 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 93.9 lb
Efficiency
50% 87.5
75% 88.5
100% 87.5
Power factor
50% 0.78
75% 0.87
100% 0.90
Electric Motors
Frame 182/4JP
Output 5 HP (3.7 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2880 rpm
Slip 4.00 %
Rated voltage 415 V
Rated current 6.61 A
L. R. Amperes 47.6 A
LRC 7.2x(Code H)
No load current 2.25 A
Rated torque 9.12 ft.lb
Locked rotor torque 240 %
Breakdown torque 320 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 0.2233 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 93.9 lb
Efficiency
50% 87.5
75% 88.5
100% 87.5
Power factor
50% 0.76
75% 0.85
100% 0.89
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 1"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Pump Seal Gasket
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
