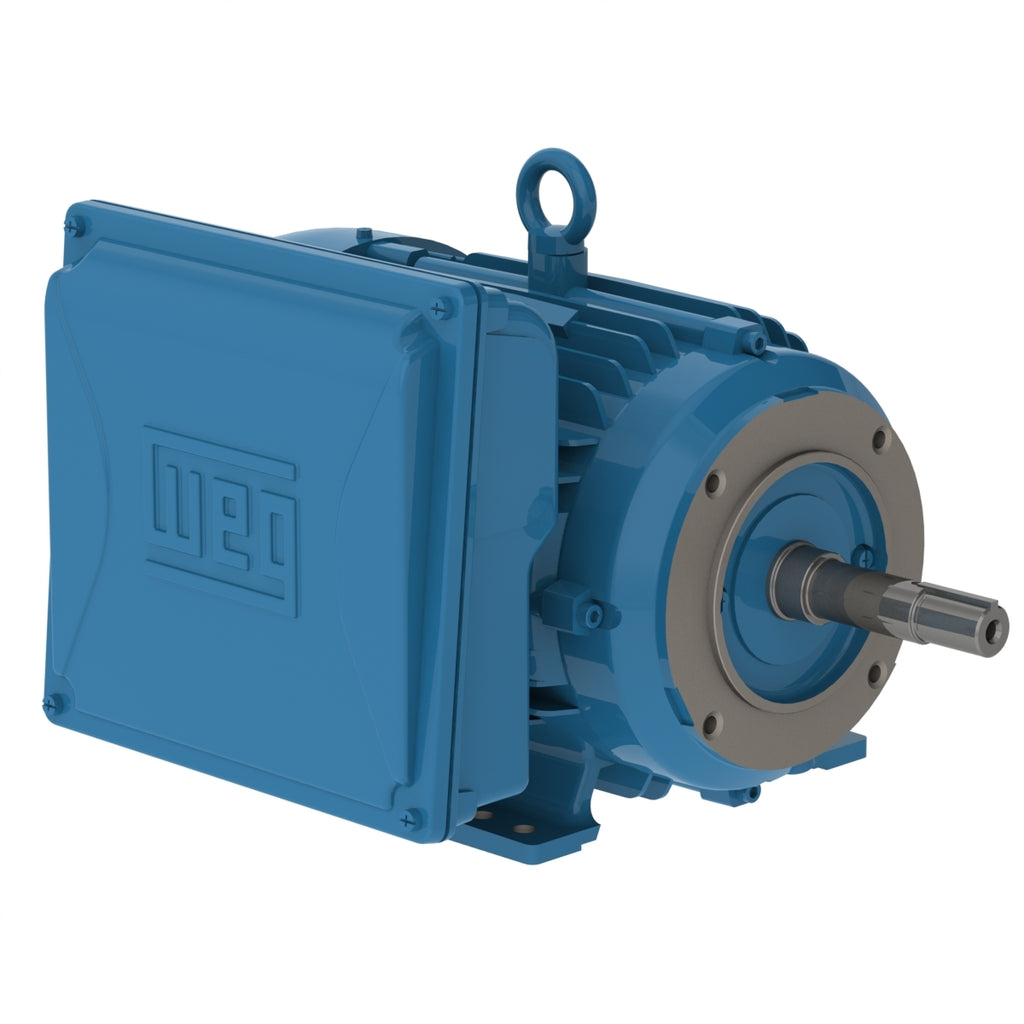

High starting torque
For applications on commercial and industrial pumps (JM/JP - mechanical seal/gasket)
Suitable for domestic and rural power supply conditions
| Standard |
NEMA MG-1 |
| Frequency |
60 Hz |
| Voltage |
208-230/460 V |
| Number of poles |
2 |
| Degree of Protection |
IP55 |
| Synchronous speed |
3600 rpm |
| Output rating |
5 HP |
| Mounting |
F-1 |
| Flange |
C |
| Terminal box¹ |
Left position |
| Enclosure |
IC411 - TEFC |
Electric Motors
| Frame |
182/4JM |
| Output |
5 HP (3.7 kW) |
| Number of Poles |
2 |
| Frequency |
60 Hz |
| Rated speed |
3515 rpm |
| Slip |
2.36 % |
| Rated voltage |
208-230/460 V |
| Rated current |
20.5-19.0/9.50 A |
| L. R. Amperes |
146-135/67.5 A |
| LRC |
7.1x(Code G) |
| No load current |
3.36-3.90/1.95 A |
| Rated torque |
7.47 ft.lb |
| Locked rotor torque |
280 % |
| Breakdown torque |
250 % |
| Locked rotor time |
12s (cold) 7s (hot) |
| Moment of inertia (J) |
0.2164 sq.ft.lb |
| Insulation Class |
F |
| Temperature rise |
80 K |
| Service factor |
1.15 (1.00 @ 208V) |
| Duty Cycle |
Cont.(S1) |
| Starting Method |
Direct On Line |
| Ambient temperature |
-20°C to +40°C |
| Altitude |
1000 m.a.s.l. |
| Degree of Protection |
IP55 |
| Enclosure |
IC411 - TEFC |
| Mounting |
F-1 |
| Rotation¹ |
CCW |
| Noise level² |
72.0 dB(A) |
| Approx. weight³ |
110 lb |
Efficiency
| 50% |
80.0 |
| 75% |
84.0 |
| 100% |
85.5 |
Power factor
| 50% |
0.96 |
| 75% |
0.99 |
| 100% |
0.99 |
Features
| Frame Material |
Cast Iron |
| Impregnation Method |
Dip and Bake Polyester |
| Main terminal box hole |
NPT 1" |
| Terminal Block |
Without |
| Shaft Locking Device |
Without |
| Drain |
Rubber, automatic |
| Shaft Material |
SAE 1040/45 Carbon Steel |
| Painting |
RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs |
Single |
| Fan Cover material |
Steel |
| Tropicalized Painting |
Without |
| Fan material |
Plastic |
| Bearing cap |
Yes- Bearing Cap |
| Drip Cover |
Without |
| Overload protector (phenolic) |
Without overload protector |
Features
| Frame Material |
Cast Iron |
| Impregnation Method |
Dip and Bake Polyester |
| Main terminal box hole |
NPT 1" |
| Terminal Block |
Without |
| Shaft Locking Device |
Without |
| Drain |
Rubber, automatic |
| Shaft Material |
SAE 1040/45 Carbon Steel |
| Painting |
RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs |
Single |
| Fan Cover material |
Steel |
| Tropicalized Painting |
Without |
| Fan material |
Plastic |
| Bearing cap |
Yes- Bearing Cap |
| Drip Cover |
Without |
| Overload protector (phenolic) |
Without overload protector |
