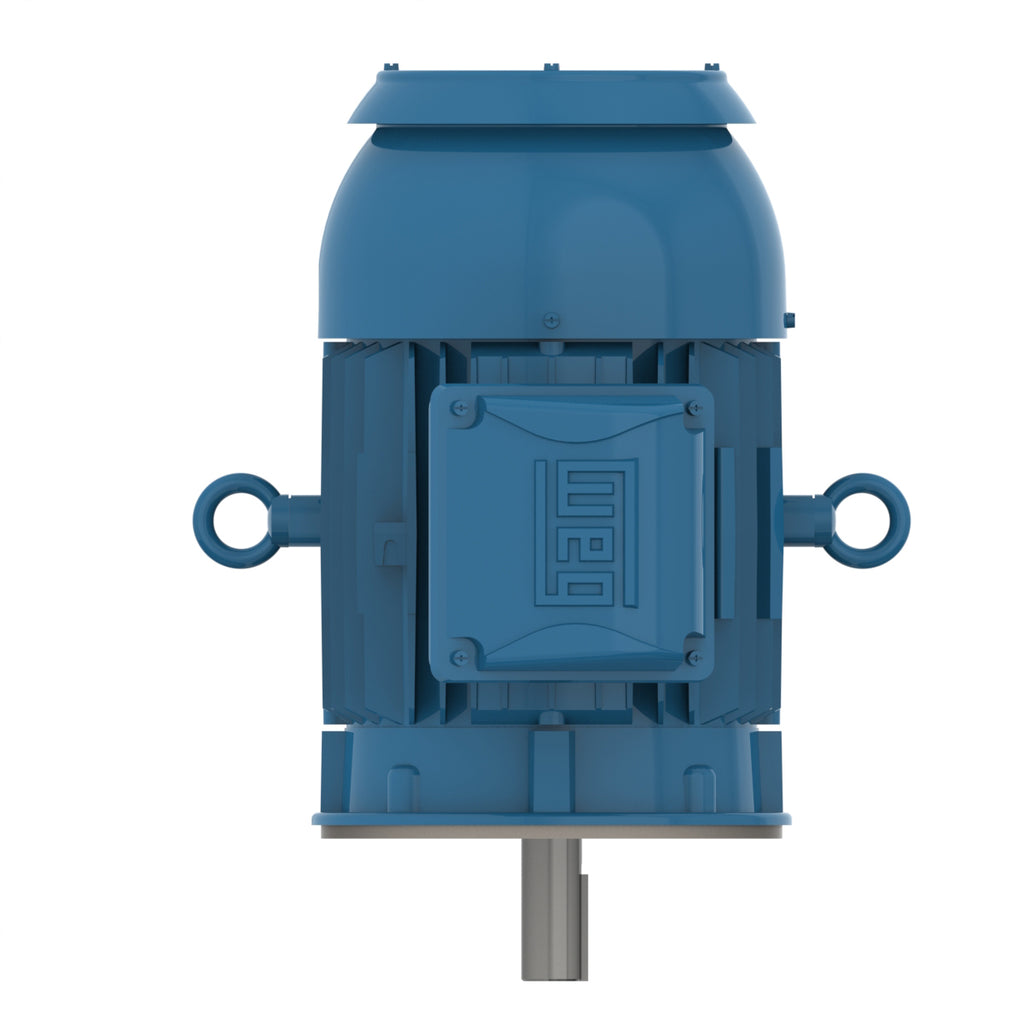

WEG 00518ST3QIER184TC-W2 W22 IEEE 841 NEMA Premium Efficiency 5 HP 4P 184TC 3Ph 460 V 60 Hz IC411 - TEFC - Footless


Price:
Sale price$1,138.06

Description

The W22 IEEE 841 motors were especially designed to operate in petrochemical and chemical industries. The motor has cast iron frame, flexible mounting, solid and whole feet, low noise levels, anticorrosive internal coating and high efficiency.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 5 HP
Mounting W-6
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 184TC
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 460 V
Rated current 6.49 A
L. R. Amperes 50.0 A
LRC 7.7x(Code J)
No load current 2.90 A
Rated torque 15.0 ft.lb
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 118 lb
Efficiency
50% 88.5
75% 89.5
100% 89.5
Power factor
50% 0.62
75% 0.74
100% 0.80
Electric Motors
Frame 184TC
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 6.42 A
L. R. Amperes 44.9 A
LRC 7.0x(Code J)
No load current 2.80 A
Rated torque 14.4 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 59s (cold) 33s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 118 lb
Efficiency
50% 87.5
75% 88.2
100% 87.7
Power factor
50% 0.61
75% 0.75
100% 0.81
Electric Motors
Frame 184TC
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1458 rpm
Slip 2.80 %
Rated voltage 400 V
Rated current 6.21 A
L. R. Amperes 47.2 A
LRC 7.6x(Code K)
No load current 3.00 A
Rated torque 14.4 ft.lb
Locked rotor torque 260 %
Breakdown torque 300 %
Locked rotor time 54s (cold) 30s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 118 lb
Efficiency
50% 86.7
75% 88.2
100% 88.2
Power factor
50% 0.57
75% 0.71
100% 0.79
Electric Motors
Frame 184TC
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1462 rpm
Slip 2.53 %
Rated voltage 415 V
Rated current 6.23 A
L. R. Amperes 49.8 A
LRC 8.0x(Code K)
No load current 3.20 A
Rated torque 14.4 ft.lb
Locked rotor torque 290 %
Breakdown torque 320 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 118 lb
Efficiency
50% 86.5
75% 88.2
100% 88.2
Power factor
50% 0.53
75% 0.67
100% 0.76
Electric Motors
Frame 184TC
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1435 rpm
Slip 4.33 %
Rated voltage 380 V
Rated current 7.74 A
L. R. Amperes 44.9 A
LRC 5.8x(Code G)
No load current 2.90 A
Rated torque 18.3 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 118 lb
Efficiency
50% 88.5
75% 87.5
100% 86.5
Power factor
50% 0.69
75% 0.80
100% 0.84
Electric Motors
Frame 184TC
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1440 rpm
Slip 4.00 %
Rated voltage 400 V
Rated current 7.44 A
L. R. Amperes 47.6 A
LRC 6.4x(Code H)
No load current 3.00 A
Rated torque 18.2 ft.lb
Locked rotor torque 210 %
Breakdown torque 240 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 118 lb
Efficiency
50% 87.5
75% 88.5
100% 87.5
Power factor
50% 0.65
75% 0.77
100% 0.82
Electric Motors
Frame 184TC
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 415 V
Rated current 7.35 A
L. R. Amperes 50.7 A
LRC 6.9x(Code J)
No load current 3.20 A
Rated torque 18.1 ft.lb
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 118 lb
Efficiency
50% 87.5
75% 88.5
100% 87.5
Power factor
50% 0.61
75% 0.74
100% 0.80
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Regreasing System Stainless Steel, at Drive end and Non-drive end
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Type T, Threaded
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting According to IEEE-841 (96h)
Joints Seal Molykote
Fan material Conductive Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Drip Cover With
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 3
