Description

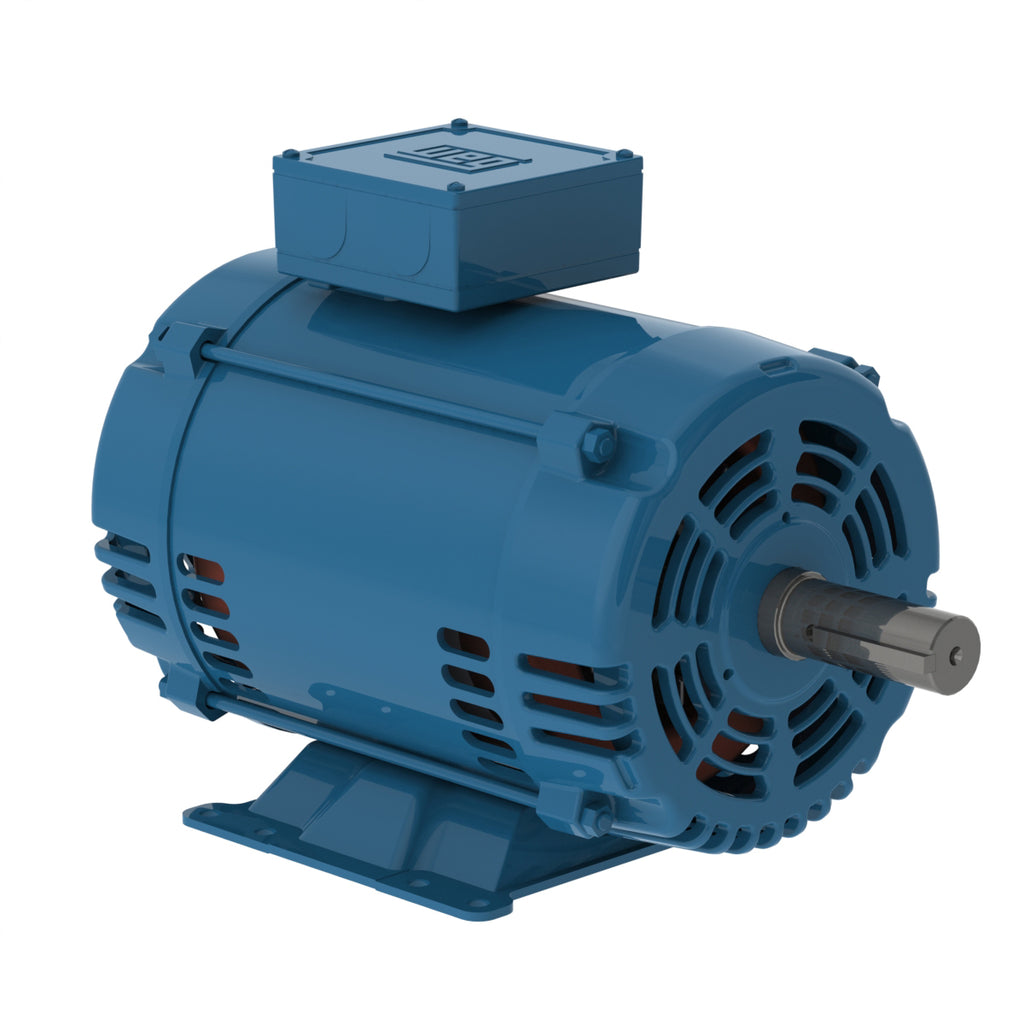

Motor with steel plate frame, for general use, developed to meet different applications with maximum performance and economy.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 200 V |
| Number of poles | 4 |
| Degree of Protection | IP21 |
| Synchronous speed | 1800 rpm |
| Output rating | 5 HP |
| Mounting | F-3 |
| Flange | Without |
| Terminal box¹ | Top |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 184T |
|---|---|
| Output | 5 HP (3.7 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1755 rpm |
| Slip | 2.50 % |
| Rated voltage | 200 V |
| Rated current | 14.7 A |
| L. R. Amperes | 108 A |
| LRC | 7.3x(Code J) |
| No load current | 6.90 A |
| Rated torque | 15.0 ft.lb |
| Locked rotor torque | 210 % |
| Breakdown torque | 290 % |
| Locked rotor time | 21s (cold) 12s (hot) |
| Moment of inertia (J) | 0.3495 sq.ft.lb |
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP21 |
| Enclosure | IC01 - ODP |
| Mounting | F-3 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 55.0 dB(A) |
| Approx. weight³ | 68.3 lb |
Efficiency
| 50% | 88.5 |
|---|---|
| 75% | 89.5 |
| 100% | 89.5 |
Power factor
| 50% | 0.63 |
|---|---|
| 75% | 0.75 |
| 100% | 0.81 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 3/4" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
