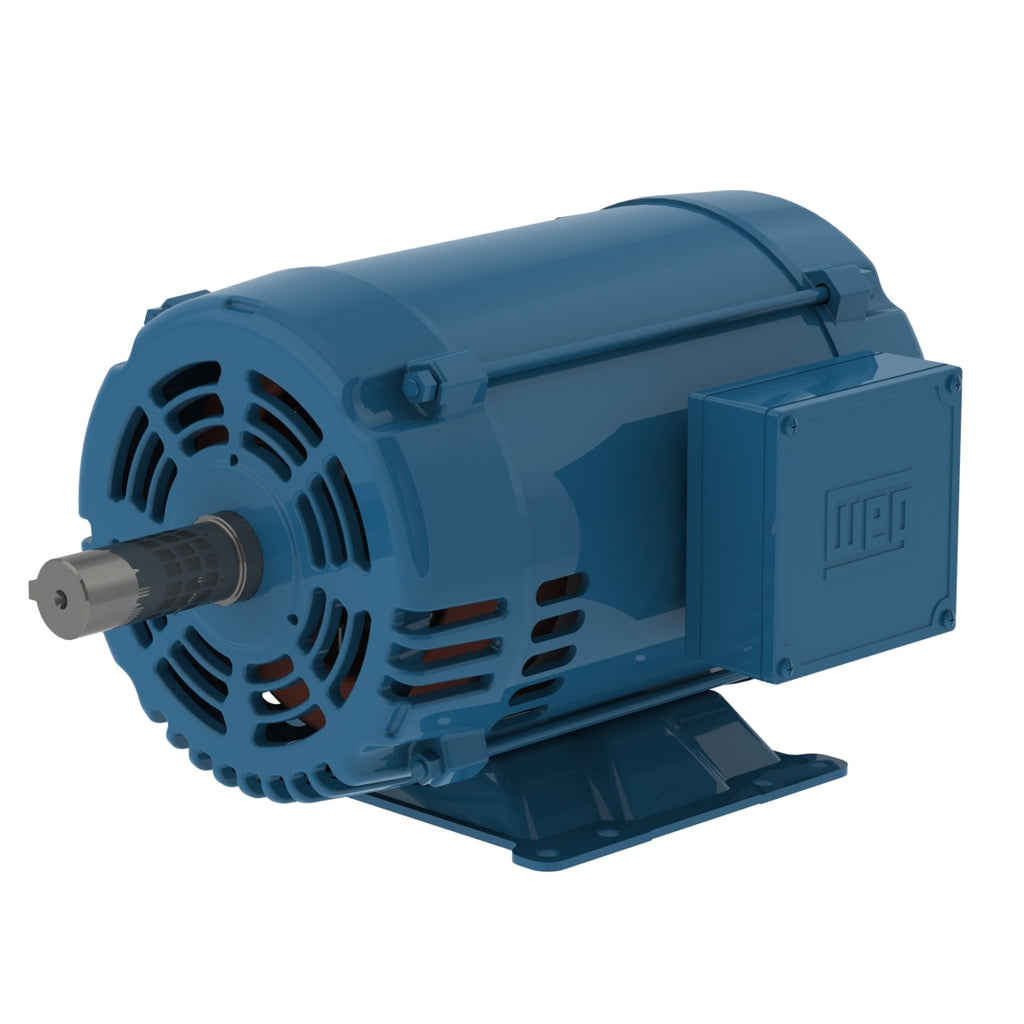

WEG 00518OT3E184TF2 General NEMA Premium Efficiency 5 HP 4P 184T 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00518OT3E184TF2 General NEMA Premium Efficiency 5 HP 4P 184T 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted

WEG 00518OT3E184TF2 General NEMA Premium Efficiency 5 HP 4P 184T 3Ph 230/460 V 60 Hz IC01 - ODP - Foot-mounted

WEGSKU: 00518OT3E184TF2

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$559.81

Description

Motor with steel plate frame, for general use, developed to meet different applications with maximum performance and economy.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP21
Synchronous speed 1800 rpm
Output rating 5 HP
Mounting F-2
Flange Without
Terminal box¹ Right position
Enclosure IC01 - ODP


Electric Motors
Frame 184T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 12.8/6.41 A
L. R. Amperes 93.6/46.8 A
LRC 7.3x(Code J)
No load current 6.00/3.00 A
Rated torque 15.0 ft.lb
Locked rotor torque 210 %
Breakdown torque 290 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.3495 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 71.2 lb
Efficiency
50% 88.5
75% 89.5
100% 89.5
Power factor
50% 0.63
75% 0.75
100% 0.81
Electric Motors
Frame 184T
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 380 V
Rated current 6.58 A
L. R. Amperes 44.7 A
LRC 6.8x(Code J)
No load current 3.15 A
Rated torque 14.5 ft.lb
Locked rotor torque 229 %
Breakdown torque 290 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 0.3495 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 71.2 lb
Efficiency
50% 83.3
75% 86.0
100% 87.7
Power factor
50% 0.60
75% 0.72
100% 0.79
Electric Motors
Frame 184T
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 6.58 A
L. R. Amperes 46.7 A
LRC 7.1x(Code K)
No load current 3.43 A
Rated torque 14.4 ft.lb
Locked rotor torque 250 %
Breakdown torque 320 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 0.3495 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 71.2 lb
Efficiency
50% 83.1
75% 86.1
100% 87.7
Power factor
50% 0.55
75% 0.68
100% 0.75
Electric Motors
Frame 184T
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 6.52 A
L. R. Amperes 49.6 A
LRC 7.6x(Code K)
No load current 3.71 A
Rated torque 14.4 ft.lb
Locked rotor torque 290 %
Breakdown torque 350 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 0.3495 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 71.2 lb
Efficiency
50% 82.9
75% 86.1
100% 87.7
Power factor
50% 0.51
75% 0.64
100% 0.73
Electric Motors
Frame 184T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1435 rpm
Slip 4.33 %
Rated voltage 380 V
Rated current 7.74 A
L. R. Amperes 44.1 A
LRC 5.7x(Code G)
No load current 3.15 A
Rated torque 18.3 ft.lb
Locked rotor torque 180 %
Breakdown torque 229 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 0.3495 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 71.2 lb
Efficiency
50% 85.5
75% 86.5
100% 87.5
Power factor
50% 0.67
75% 0.78
100% 0.83
Electric Motors
Frame 184T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1440 rpm
Slip 4.00 %
Rated voltage 400 V
Rated current 7.63 A
L. R. Amperes 46.5 A
LRC 6.1x(Code H)
No load current 3.43 A
Rated torque 18.2 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 0.3495 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 71.2 lb
Efficiency
50% 85.5
75% 86.5
100% 87.5
Power factor
50% 0.62
75% 0.74
100% 0.80
Electric Motors
Frame 184T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 415 V
Rated current 7.54 A
L. R. Amperes 49.0 A
LRC 6.5x(Code H)
No load current 3.71 A
Rated torque 18.1 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 0.3495 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP21
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 71.2 lb
Efficiency
50% 85.5
75% 86.5
100% 87.5
Power factor
50% 0.58
75% 0.71
100% 0.78
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
