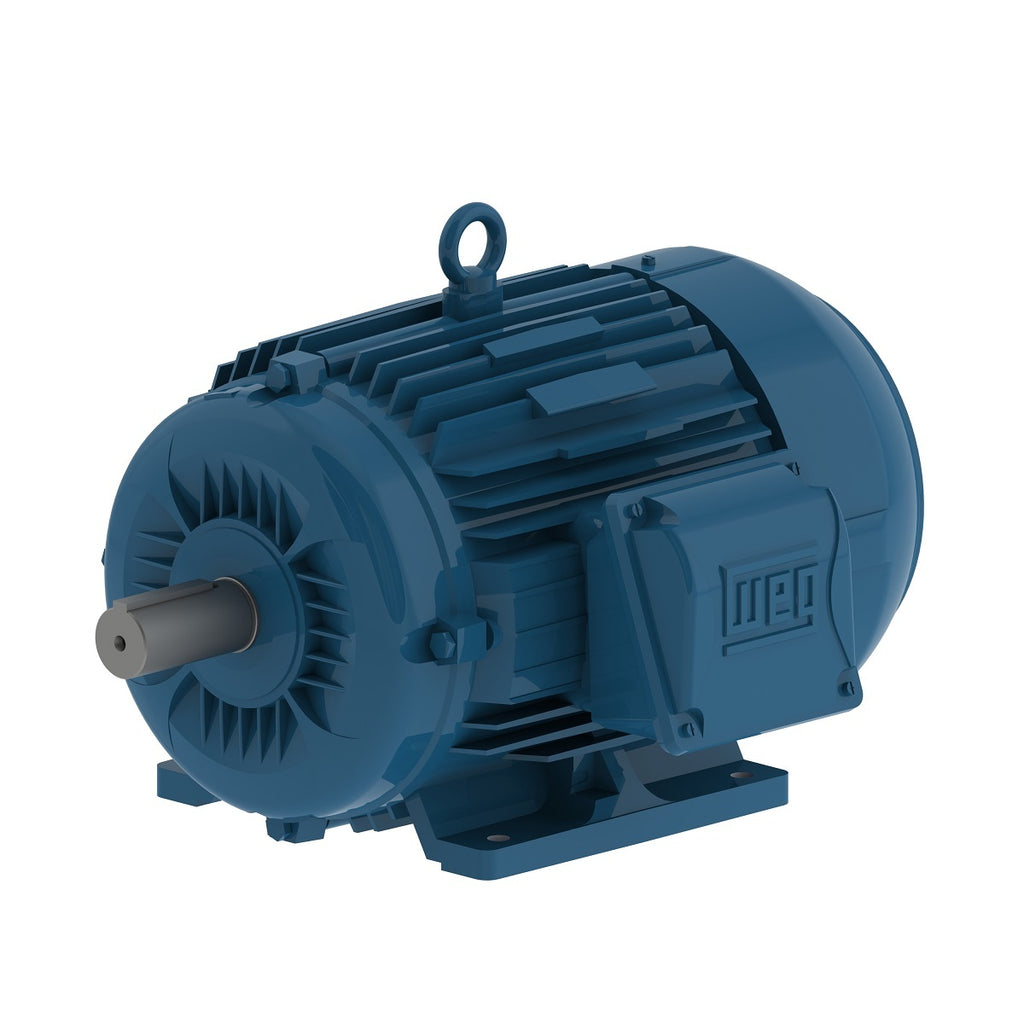

WEG 00518ET3Y132S-W22 W22 Tru-Metric IE3 7.5 HP 4P 132S 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 00518ET3Y132S-W22 W22 Tru-Metric IE3 7.5 HP 4P 132S 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 00518ET3Y132S-W22 W22 Tru-Metric IE3 7.5 HP 4P 132S 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 00518ET3Y132S-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$848.17

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 7.5 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 460 V
Rated current 9.07 A
L. R. Amperes 94.3 A
LRC 10.4
No load current 4.43 A
Rated torque 22.2 ft.lb
Locked rotor torque 260 %
Breakdown torque 430 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.25 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 58.0 dB(A)
Approx. weight³ 153 lb
Efficiency
50% 88.5
75% 91.0
100% 91.7
Power factor
50% 0.65
75% 0.77
100% 0.83
Electric Motors
Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 380 V
Rated current 10.6 A
L. R. Amperes 102 A
LRC 9.6
No load current 4.40 A
Rated torque 27.0 ft.lb
Locked rotor torque 210 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.25 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 153 lb
Efficiency
50% 90.4
75% 90.7
100% 90.3
Power factor
50% 0.71
75% 0.82
100% 0.87
Electric Motors
Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1465 rpm
Slip 2.33 %
Rated voltage 400 V
Rated current 10.3 A
L. R. Amperes 98.9 A
LRC 9.6
No load current 4.70 A
Rated torque 26.9 ft.lb
Locked rotor torque 240 %
Breakdown torque 340 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.25 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 153 lb
Efficiency
50% 90.0
75% 90.7
100% 90.7
Power factor
50% 0.67
75% 0.79
100% 0.85
Electric Motors
Frame 132S
Output 7.5 HP (5.5 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 10.2 A
L. R. Amperes 97.9 A
LRC 9.6
No load current 5.10 A
Rated torque 26.8 ft.lb
Locked rotor torque 260 %
Breakdown torque 370 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.25 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 153 lb
Efficiency
50% 89.6
75% 90.7
100% 90.8
Power factor
50% 0.64
75% 0.76
100% 0.83
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
