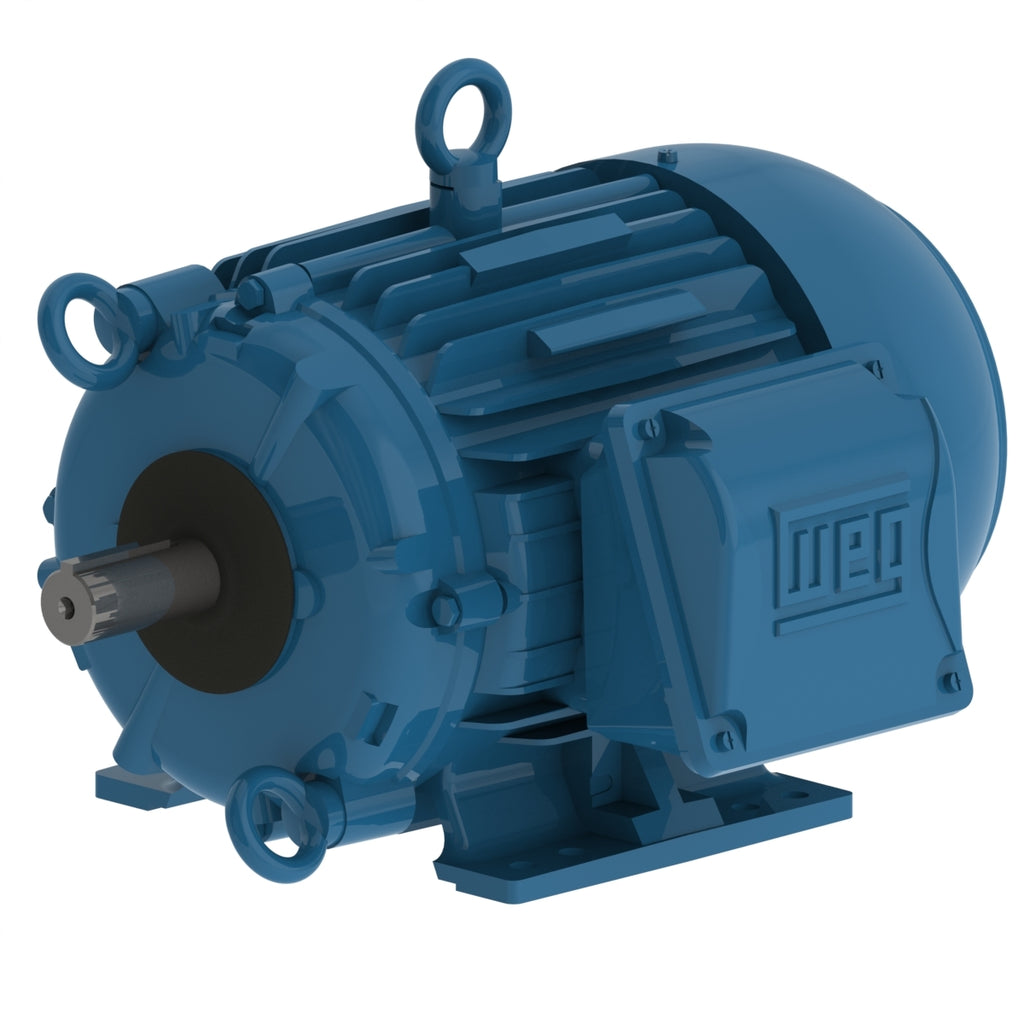

WEG 00518ET3ECT184T-W22 W22 Cooling Tower NEMA Premium Efficiency 5 HP 4P 182/4T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted


Price:
Sale price$688.38

Description

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 5 HP
Mounting F-2
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 12.9/6.45 A
L. R. Amperes 96.7/48.4 A
LRC 7.5x(Code J)
No load current 6.40/3.20 A
Rated torque 15.0 ft.lb
Locked rotor torque 229 %
Breakdown torque 320 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 103 lb
Efficiency
50% 88.5
75% 89.5
100% 89.5
Power factor
50% 0.62
75% 0.74
100% 0.80
Electric Motors
Frame 182/4T
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 6.42 A
L. R. Amperes 44.9 A
LRC 7.0x(Code J)
No load current 3.15 A
Rated torque 14.4 ft.lb
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 103 lb
Efficiency
50% 87.5
75% 88.2
100% 87.7
Power factor
50% 0.61
75% 0.75
100% 0.81
Electric Motors
Frame 182/4T
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 400 V
Rated current 6.13 A
L. R. Amperes 47.2 A
LRC 7.7x(Code K)
No load current 3.45 A
Rated torque 14.4 ft.lb
Locked rotor torque 260 %
Breakdown torque 350 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 103 lb
Efficiency
50% 86.7
75% 88.2
100% 88.2
Power factor
50% 0.57
75% 0.71
100% 0.79
Electric Motors
Frame 182/4T
Output 4 HP (3 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1460 rpm
Slip 2.67 %
Rated voltage 415 V
Rated current 6.14 A
L. R. Amperes 50.4 A
LRC 8.2x(Code L)
No load current 3.70 A
Rated torque 14.4 ft.lb
Locked rotor torque 290 %
Breakdown torque 380 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 103 lb
Efficiency
50% 86.5
75% 88.2
100% 88.2
Power factor
50% 0.53
75% 0.67
100% 0.76
Electric Motors
Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1440 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 7.74 A
L. R. Amperes 44.9 A
LRC 5.8x(Code G)
No load current 3.15 A
Rated torque 18.2 ft.lb
Locked rotor torque 180 %
Breakdown torque 240 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 103 lb
Efficiency
50% 88.5
75% 87.5
100% 86.5
Power factor
50% 0.69
75% 0.80
100% 0.84
Electric Motors
Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1445 rpm
Slip 3.67 %
Rated voltage 400 V
Rated current 7.44 A
L. R. Amperes 47.6 A
LRC 6.4x(Code H)
No load current 3.45 A
Rated torque 18.2 ft.lb
Locked rotor torque 210 %
Breakdown torque 280 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 103 lb
Efficiency
50% 87.5
75% 88.5
100% 87.5
Power factor
50% 0.65
75% 0.77
100% 0.82
Electric Motors
Frame 182/4T
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 415 V
Rated current 7.35 A
L. R. Amperes 50.7 A
LRC 6.9x(Code J)
No load current 3.70 A
Rated torque 18.1 ft.lb
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 0.4003 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 103 lb
Efficiency
50% 87.5
75% 88.5
100% 87.5
Power factor
50% 0.61
75% 0.74
100% 0.80
Features
Frame Material Cast Iron
Impregnation Method Double impregnation polyester
Space Heater Voltage 110-127/200-240 V
Main terminal box hole NPT 1"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Complete (200h)
Joints Seal Permatex
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
