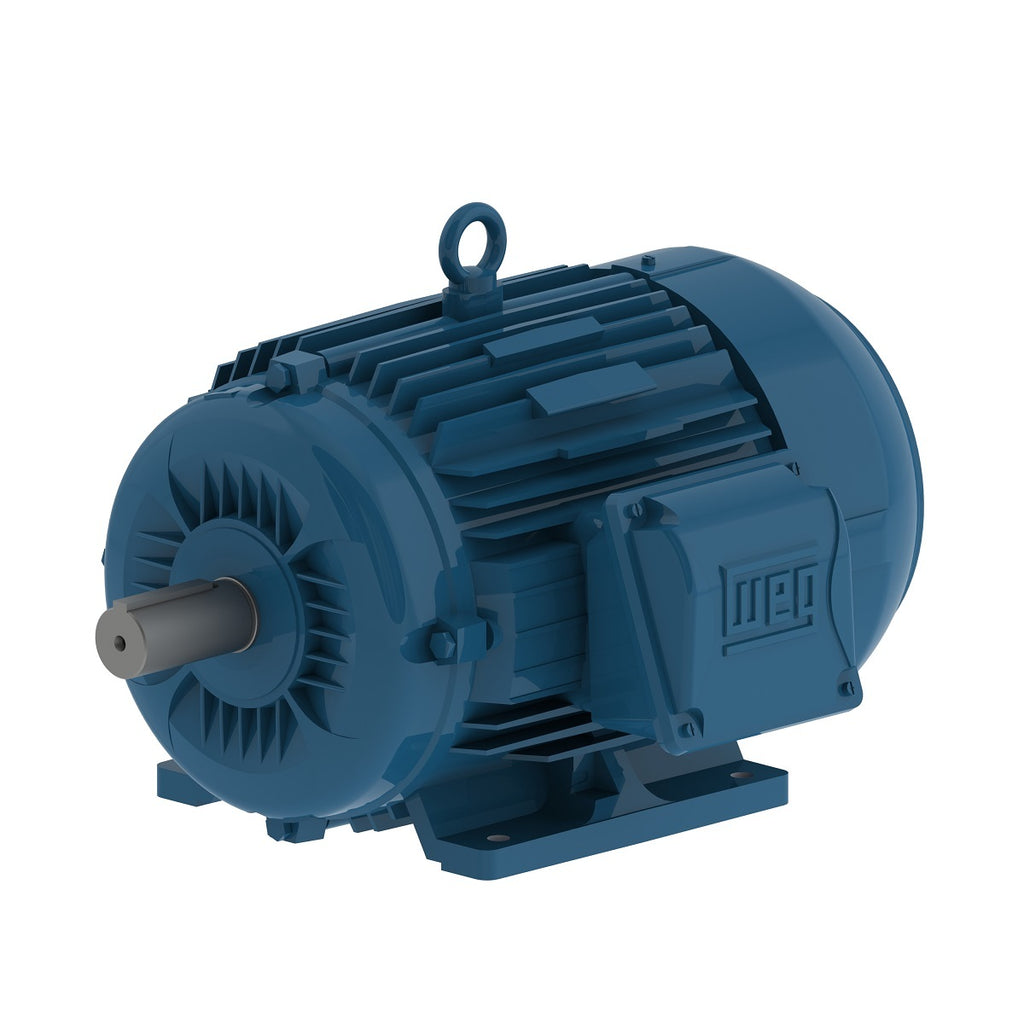

WEG 00512ET3E132M/L-W22 W22 Tru-Metric IE3 7.5 HP 6P 132M/L 3Ph 230/460 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 00512ET3E132M/L-W22 W22 Tru-Metric IE3 7.5 HP 6P 132M/L 3Ph 230/460 V 60 Hz IC411 - TEFC - B3L(E)

WEG 00512ET3E132M/L-W22 W22 Tru-Metric IE3 7.5 HP 6P 132M/L 3Ph 230/460 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 00512ET3E132M/L-W22

GTIN :

MPN :

Dropship

Price:
$1,760.00

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 7.5 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 132M/L
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1170 rpm
Slip 2.50 %
Rated voltage 230/460 V
Rated current 21.6/10.8 A
L. R. Amperes 171/85.3 A
LRC 7.9
No load current 12.8/6.40 A
Rated torque 33.7 ft.lb
Locked rotor torque 240 %
Breakdown torque 320 %
Locked rotor time 57s (cold) 32s (hot)
Moment of inertia (J) 1.79 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 55.0 dB(A)
Approx. weight³ 200 lb
Efficiency
50% 85.5
75% 88.5
100% 91.0
Power factor
50% 0.48
75% 0.61
100% 0.70
Electric Motors
Frame 132M/L
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 960 rpm
Slip 4.00 %
Rated voltage 380 V
Rated current 12.7 A
L. R. Amperes 88.9 A
LRC 7.0
No load current 6.20 A
Rated torque 41.0 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 1.79 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 200 lb
Efficiency
50% 87.4
75% 88.3
100% 88.0
Power factor
50% 0.55
75% 0.68
100% 0.75
Electric Motors
Frame 132M/L
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 965 rpm
Slip 3.50 %
Rated voltage 400 V
Rated current 12.5 A
L. R. Amperes 87.5 A
LRC 7.0
No load current 6.80 A
Rated torque 40.8 ft.lb
Locked rotor torque 250 %
Breakdown torque 260 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 1.79 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 200 lb
Efficiency
50% 86.5
75% 88.0
100% 88.0
Power factor
50% 0.50
75% 0.64
100% 0.72
Electric Motors
Frame 132M/L
Output 7.5 HP (5.5 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 12.6 A
L. R. Amperes 88.2 A
LRC 7.0
No load current 7.20 A
Rated torque 40.6 ft.lb
Locked rotor torque 280 %
Breakdown torque 290 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 1.79 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 53.0 dB(A)
Approx. weight³ 200 lb
Efficiency
50% 85.8
75% 87.7
100% 88.0
Power factor
50% 0.47
75% 0.61
100% 0.69
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
