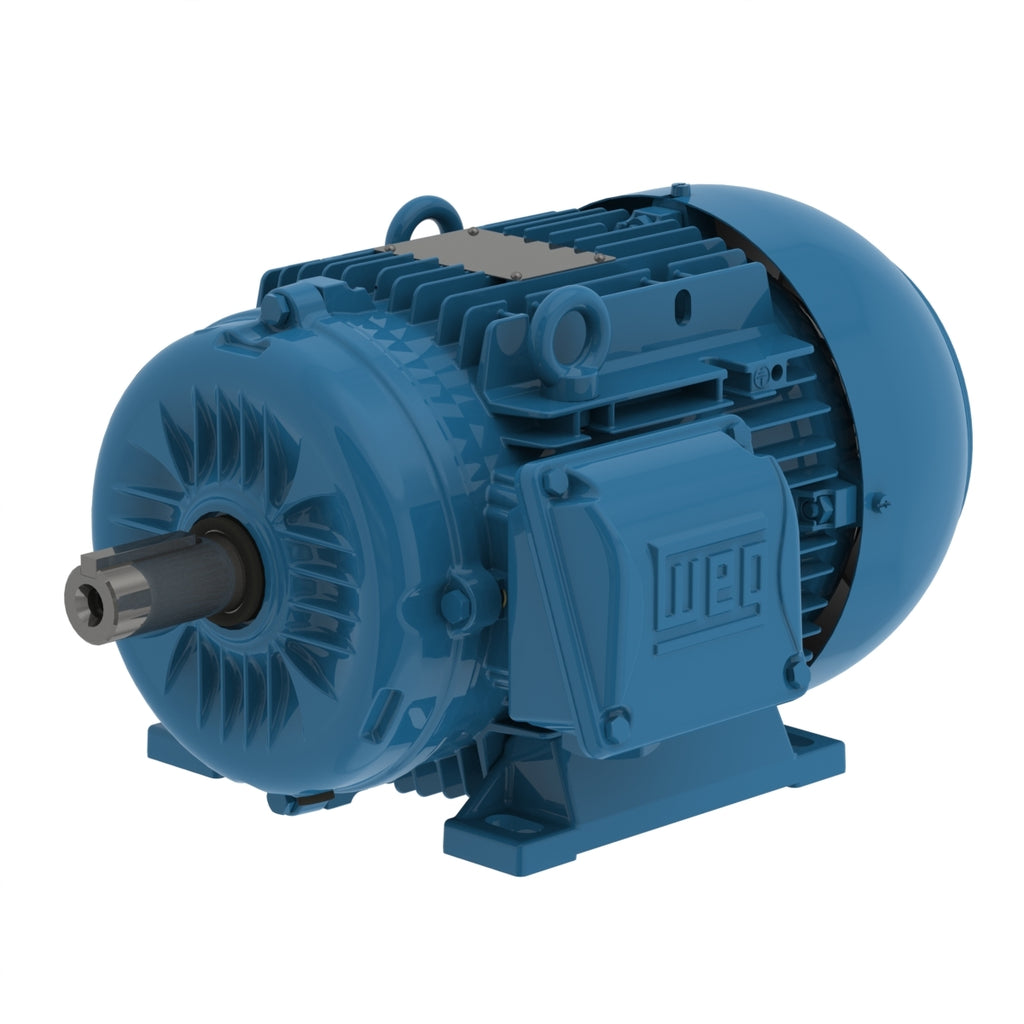

WEG 00418ET3YAL112M-W22 Multimounting IE3 5.5 HP 4P 112M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)


Price:
Sale price$522.83

Description

Aluminum frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 5.5 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 460 V
Rated current 7.28 A
L. R. Amperes 58.2 A
LRC 8.0
No load current 4.25 A
Rated torque 16.5 ft.lb
Locked rotor torque 250 %
Breakdown torque 350 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 87.0 lb
Efficiency
50% 87.5
75% 89.5
100% 89.5
Power factor
50% 0.58
75% 0.70
100% 0.77
Electric Motors
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1445 rpm
Slip 3.67 %
Rated voltage 380 V
Rated current 8.47 A
L. R. Amperes 59.3 A
LRC 7.0
No load current 4.15 A
Rated torque 20.0 ft.lb
Locked rotor torque 200 %
Breakdown torque 270 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 87.0 lb
Efficiency
50% 89.3
75% 89.0
100% 88.6
Power factor
50% 0.65
75% 0.76
100% 0.81
Electric Motors
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 8.20 A
L. R. Amperes 57.4 A
LRC 7.0
No load current 4.60 A
Rated torque 19.9 ft.lb
Locked rotor torque 229 %
Breakdown torque 310 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 87.0 lb
Efficiency
50% 88.7
75% 89.1
100% 89.1
Power factor
50% 0.60
75% 0.72
100% 0.79
Electric Motors
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 8.09 A
L. R. Amperes 56.6 A
LRC 7.0
No load current 4.95 A
Rated torque 19.9 ft.lb
Locked rotor torque 260 %
Breakdown torque 340 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 87.0 lb
Efficiency
50% 88.2
75% 88.9
100% 89.3
Power factor
50% 0.57
75% 0.70
100% 0.77
Features
Frame Material Aluminum
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Drip Cover Without
Connection Cables Quantity 6
