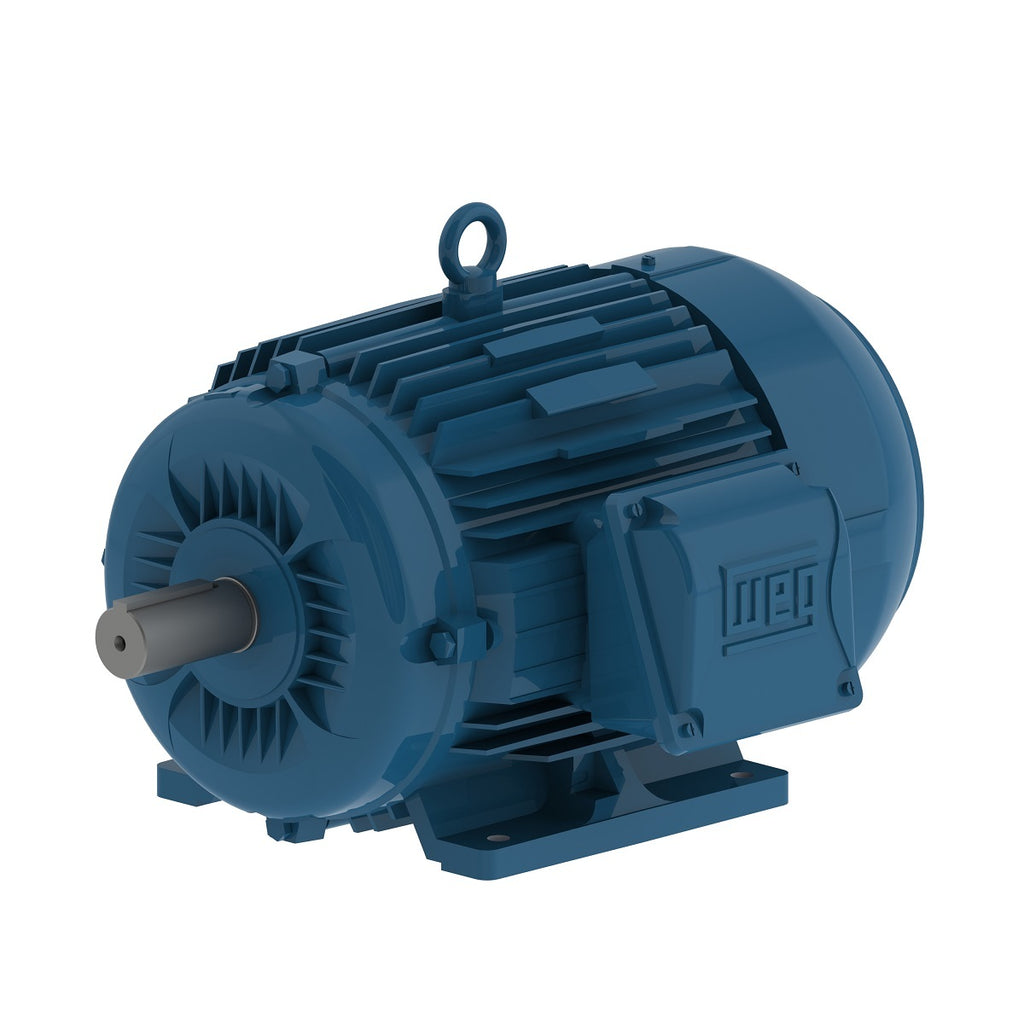

WEG 00418ET3Y112M-W22 W22 Tru-Metric IE3 5.5 HP 4P 112M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)
Roll over image to zoom in Click on image to zoom
WEG 00418ET3Y112M-W22 W22 Tru-Metric IE3 5.5 HP 4P 112M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEG 00418ET3Y112M-W22 W22 Tru-Metric IE3 5.5 HP 4P 112M 3Ph 460//380-415 V 60 Hz IC411 - TEFC - B3L(E)

WEGSKU: 00418ET3Y112M-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$617.66

Description

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 5.5 HP
Mounting B3L(E)
Flange Without
Terminal box¹ Right position
Enclosure IC411 - TEFC


Electric Motors
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1755 rpm
Slip 2.50 %
Rated voltage 460 V
Rated current 7.28 A
L. R. Amperes 58.2 A
LRC 8.0
No load current 4.25 A
Rated torque 16.5 ft.lb
Locked rotor torque 250 %
Breakdown torque 350 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 101 lb
Efficiency
50% 87.5
75% 89.5
100% 89.5
Power factor
50% 0.58
75% 0.70
100% 0.77
Electric Motors
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1445 rpm
Slip 3.67 %
Rated voltage 380 V
Rated current 8.47 A
L. R. Amperes 59.3 A
LRC 7.0
No load current 4.15 A
Rated torque 20.0 ft.lb
Locked rotor torque 200 %
Breakdown torque 270 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 101 lb
Efficiency
50% 89.3
75% 89.0
100% 88.6
Power factor
50% 0.65
75% 0.76
100% 0.81
Electric Motors
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1450 rpm
Slip 3.33 %
Rated voltage 400 V
Rated current 8.20 A
L. R. Amperes 57.4 A
LRC 7.0
No load current 4.60 A
Rated torque 19.9 ft.lb
Locked rotor torque 229 %
Breakdown torque 310 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 101 lb
Efficiency
50% 88.7
75% 89.1
100% 89.1
Power factor
50% 0.60
75% 0.72
100% 0.79
Electric Motors
Frame 112M
Output 5.5 HP (4 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1455 rpm
Slip 3.00 %
Rated voltage 415 V
Rated current 8.09 A
L. R. Amperes 56.6 A
LRC 7.0
No load current 4.95 A
Rated torque 19.9 ft.lb
Locked rotor torque 260 %
Breakdown torque 340 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 0.4312 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 101 lb
Efficiency
50% 88.2
75% 88.9
100% 89.3
Power factor
50% 0.57
75% 0.70
100% 0.77
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole 2xM32x1,5
Terminal Block BMC - 6 pins
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
