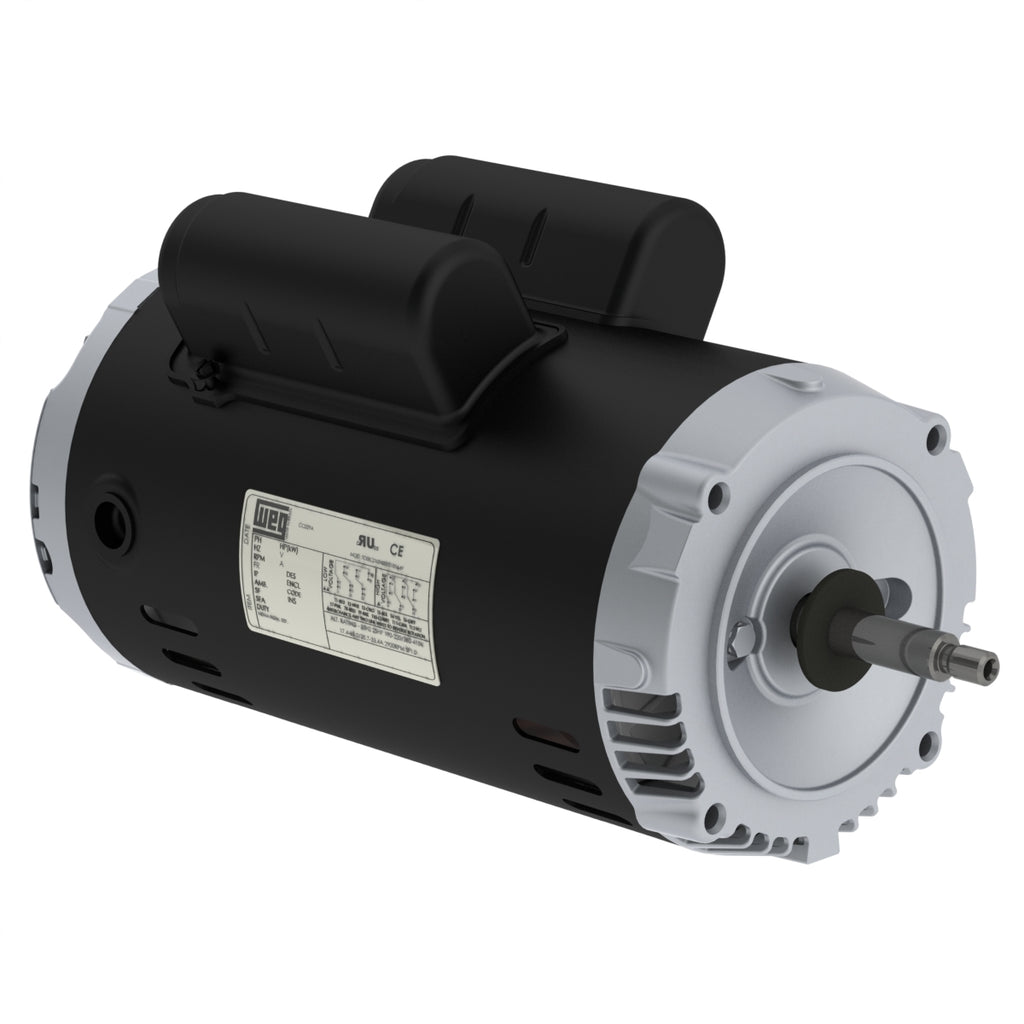

WEG 00336OS1DJPR56J-S Rolled Steel Jet Pump - J type 3 HP 2P 56J 1Ph 230 V 60 Hz IC01 - ODP - Footless


Price:
Sale price$384.23

Description

The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and threaded shaft end, these versatile single-phase motors provide torque and durability for several applications.

Standard NEMA MG-1
Frequency 60 Hz
Voltage 230 V
Number of poles 2
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting F-1
Flange C
Terminal box¹ Without Terminal Box
Enclosure IC01 - ODP
Electric Motors
Frame 56J
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3485 rpm
Slip 3.19 %
Rated voltage 230 V
Rated current 13.2 A
L. R. Amperes 106 A
LRC 8.0x(Code K)
No load current 4.50 A
Rated torque 4.52 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.0864 sq.ft.lb
Design L
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ CCW
Noise level² 58.0 dB(A)
Approx. weight³ 42.8 lb
Efficiency
50% 71.0
75% 76.0
100% 78.0
Power factor
50% 0.85
75% 0.91
100% 0.93
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material AISI 304 Stainless Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method Without Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Automatic
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Shaft Material AISI 304 Stainless Steel
Painting Only primer
Grounding Lugs Single
Fan Cover material Without Fan Cover
Tropicalized Painting Without
Fan material Without fan
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method Without Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Automatic
