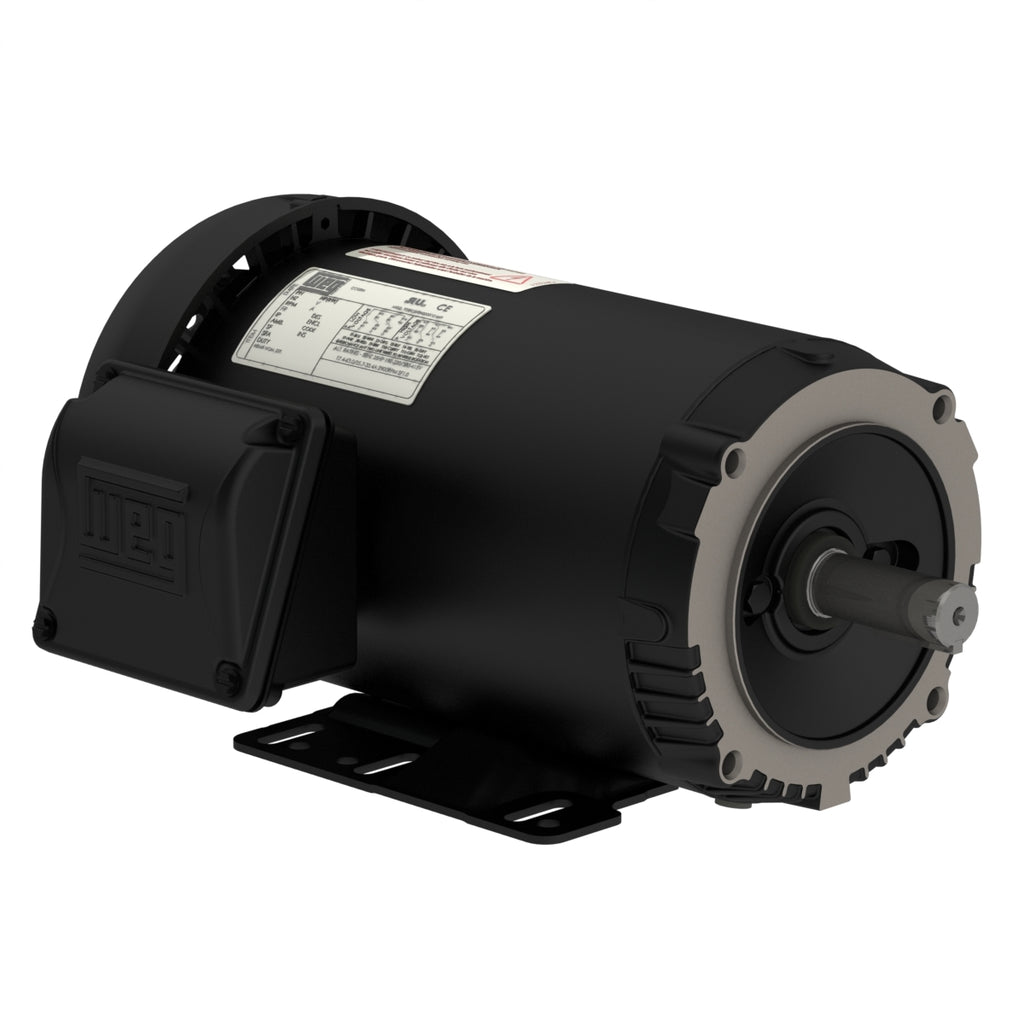

WEG 00336ET3E145TC-S Rolled Steel NEMA Premium Efficiency 3 HP 2P 143/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted


Price:
Sale price$518.98

Description

W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//190-220/380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 143/5TC
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3500 rpm
Slip 2.78 %
Rated voltage 230/460 V
Rated current 7.02/3.51 A
L. R. Amperes 66.7/33.3 A
LRC 9.5x(Code K)
No load current 2.56/1.28 A
Rated torque 4.50 ft.lb
Locked rotor torque 300 %
Breakdown torque 380 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 0.1663 sq.ft.lb
Design B
Insulation Class F
Temperature rise 80 K
Service factor 1.15 (1.00 @ 208V)
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 50.1 lb
Efficiency
50% 84.0
75% 86.5
100% 86.5
Power factor
50% 0.78
75% 0.87
100% 0.91
Electric Motors
Frame 143/5TC
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2870 rpm
Slip 4.33 %
Rated voltage 190-220/380 V
Rated current 8.50-7.34/4.25 A
L. R. Amperes 62.9-54.3/31.5 A
LRC 7.4x(Code H)
No load current 2.52-2.18/1.26 A
Rated torque 5.49 ft.lb
Locked rotor torque 229 %
Breakdown torque 280 %
Locked rotor time 16s (cold) 9s (hot)
Moment of inertia (J) 0.1663 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 50.1 lb
Efficiency
50% 86.6
75% 86.4
100% 84.6
Power factor
50% 0.83
75% 0.90
100% 0.93
Electric Motors
Frame 143/5TC
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2895 rpm
Slip 3.50 %
Rated voltage 415 V
Rated current 3.91 A
L. R. Amperes 34.8 A
LRC 8.9x(Code K)
No load current 1.44 A
Rated torque 5.44 ft.lb
Locked rotor torque 290 %
Breakdown torque 340 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 0.1663 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15 (1.00 @ 208V)
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
Approx. weight³ 50.1 lb
Efficiency
50% 86.2
75% 87.0
100% 86.0
Power factor
50% 0.78
75% 0.87
100% 0.91
Features
Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main terminal box hole 1.118"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Bolt Material Carbon Steel
Balancing Method 1/2 Key
Drip Cover Without
Resilient Base Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
