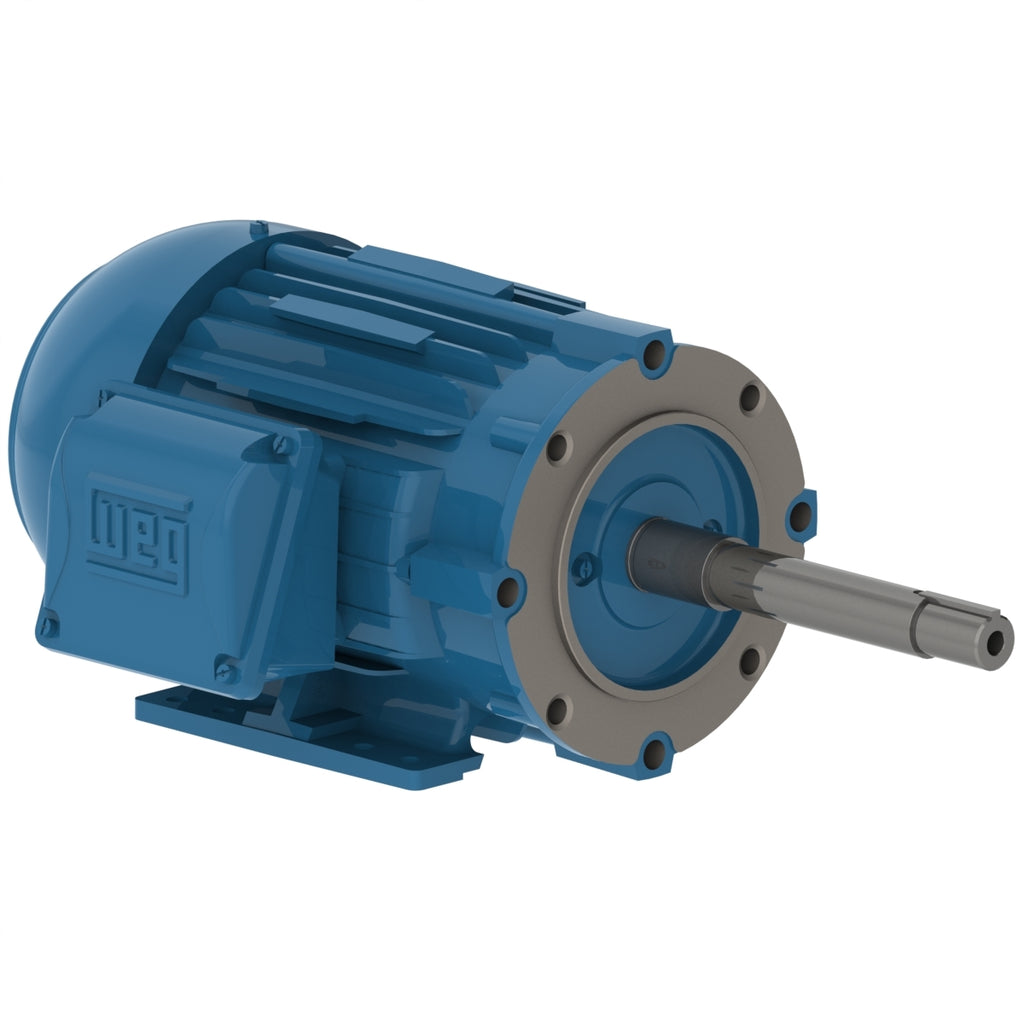

WEG 00336ET3E145JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 3 HP 2P 143/5JP 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
Roll over image to zoom in Click on image to zoom
WEG 00336ET3E145JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 3 HP 2P 143/5JP 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEG 00336ET3E145JP-W22 W22 Close Coupled Pump JP NEMA Premium Efficiency 3 HP 2P 143/5JP 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

WEGSKU: 00336ET3E145JP-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$814.35

Description

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting F-1
Flange C
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame 143/5JP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3460 rpm
Slip 3.89 %
Rated voltage 230/460 V
Rated current 7.42/3.71 A
L. R. Amperes 60.1/30.1 A
LRC 8.1x(Code J)
No load current 2.60/1.30 A
Rated torque 4.55 ft.lb
Locked rotor torque 330 %
Breakdown torque 360 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 57.4 lb
Efficiency
50% 85.5
75% 86.5
100% 86.5
Power factor
50% 0.70
75% 0.81
100% 0.86
Electric Motors
Frame 143/5JP
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2890 rpm
Slip 3.67 %
Rated voltage 380 V
Rated current 3.24 A
L. R. Amperes 27.9 A
LRC 8.6x(Code L)
No load current 1.28 A
Rated torque 3.63 ft.lb
Locked rotor torque 400 %
Breakdown torque 400 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 57.4 lb
Efficiency
50% 81.9
75% 84.0
100% 84.8
Power factor
50% 0.63
75% 0.76
100% 0.83
Electric Motors
Frame 143/5JP
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 400 V
Rated current 3.17 A
L. R. Amperes 29.2 A
LRC 9.2x(Code M)
No load current 1.43 A
Rated torque 3.62 ft.lb
Locked rotor torque 459 %
Breakdown torque 459 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 57.4 lb
Efficiency
50% 82.0
75% 84.4
100% 85.3
Power factor
50% 0.58
75% 0.72
100% 0.80
Electric Motors
Frame 143/5JP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2850 rpm
Slip 5.00 %
Rated voltage 415 V
Rated current 4.13 A
L. R. Amperes 29.3 A
LRC 7.1x(Code H)
No load current 1.55 A
Rated torque 5.53 ft.lb
Locked rotor torque 320 %
Breakdown torque 330 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 57.4 lb
Efficiency
50% 85.0
75% 86.0
100% 86.2
Power factor
50% 0.69
75% 0.80
100% 0.86
Electric Motors
Frame 143/5JP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2820 rpm
Slip 6.00 %
Rated voltage 380 V
Rated current 4.44 A
L. R. Amperes 27.1 A
LRC 6.1x(Code G)
No load current 1.28 A
Rated torque 5.59 ft.lb
Locked rotor torque 260 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 57.4 lb
Efficiency
50% 84.0
75% 85.0
100% 84.6
Power factor
50% 0.76
75% 0.85
100% 0.89
Electric Motors
Frame 143/5JP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2840 rpm
Slip 5.33 %
Rated voltage 400 V
Rated current 4.26 A
L. R. Amperes 28.5 A
LRC 6.7x(Code H)
No load current 1.43 A
Rated torque 5.55 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 57.4 lb
Efficiency
50% 84.5
75% 85.5
100% 85.6
Power factor
50% 0.72
75% 0.82
100% 0.87
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Pump Seal Gasket
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
