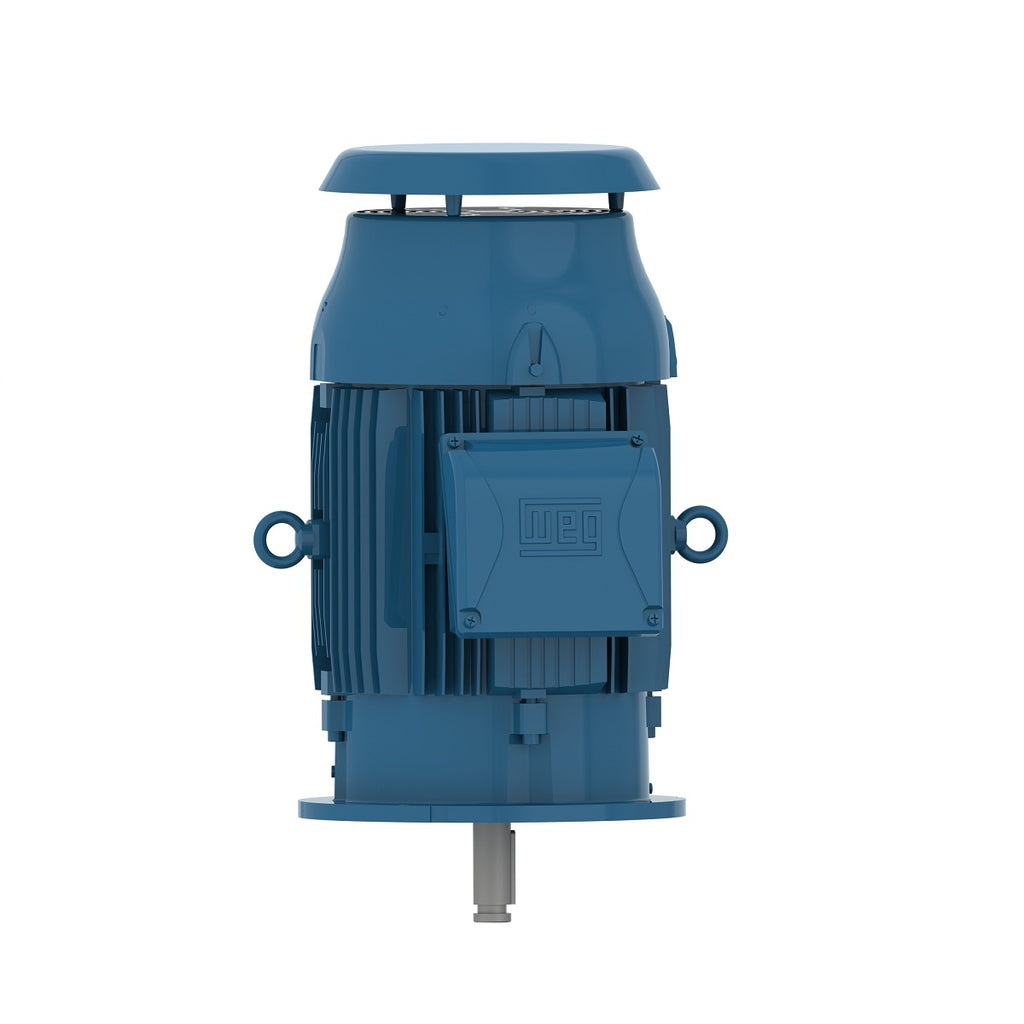

WEG 00336ET3E145HP-W22 W22 P Base NEMA Premium Efficiency 3 HP 2P L145HP 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Footless
Roll over image to zoom in Click on image to zoom
WEG 00336ET3E145HP-W22 W22 P Base NEMA Premium Efficiency 3 HP 2P L145HP 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Footless

WEG 00336ET3E145HP-W22 W22 P Base NEMA Premium Efficiency 3 HP 2P L145HP 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Footless

WEGSKU: 00336ET3E145HP-W22

Dropship

Get it by Tue, Feb 10 - Sun, Feb 15

Price:
$768.07

Description

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 3 HP
Mounting W-6
Flange P
Terminal box¹ Left position
Enclosure IC411 - TEFC


Electric Motors
Frame L145HP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3460 rpm
Slip 3.89 %
Rated voltage 230/460 V
Rated current 7.42/3.71 A
L. R. Amperes 60.1/30.1 A
LRC 8.1x(Code J)
No load current 2.60/1.30 A
Rated torque 4.55 ft.lb
Locked rotor torque 330 %
Breakdown torque 360 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 63.2 lb
Efficiency
50% 85.5
75% 86.5
100% 86.5
Power factor
50% 0.70
75% 0.81
100% 0.86
Electric Motors
Frame L145HP
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2890 rpm
Slip 3.67 %
Rated voltage 380 V
Rated current 3.24 A
L. R. Amperes 27.9 A
LRC 8.6x(Code L)
No load current 1.28 A
Rated torque 3.63 ft.lb
Locked rotor torque 400 %
Breakdown torque 400 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 63.2 lb
Efficiency
50% 81.9
75% 84.0
100% 84.8
Power factor
50% 0.63
75% 0.76
100% 0.83
Electric Motors
Frame L145HP
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2905 rpm
Slip 3.17 %
Rated voltage 400 V
Rated current 3.17 A
L. R. Amperes 29.2 A
LRC 9.2x(Code M)
No load current 1.43 A
Rated torque 3.62 ft.lb
Locked rotor torque 459 %
Breakdown torque 459 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 63.2 lb
Efficiency
50% 82.0
75% 84.4
100% 85.3
Power factor
50% 0.58
75% 0.72
100% 0.80
Electric Motors
Frame L145HP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2850 rpm
Slip 5.00 %
Rated voltage 415 V
Rated current 4.13 A
L. R. Amperes 29.3 A
LRC 7.1x(Code H)
No load current 1.55 A
Rated torque 5.53 ft.lb
Locked rotor torque 320 %
Breakdown torque 330 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 63.2 lb
Efficiency
50% 85.0
75% 86.0
100% 86.2
Power factor
50% 0.69
75% 0.80
100% 0.86
Electric Motors
Frame L145HP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2820 rpm
Slip 6.00 %
Rated voltage 380 V
Rated current 4.44 A
L. R. Amperes 27.1 A
LRC 6.1x(Code G)
No load current 1.28 A
Rated torque 5.59 ft.lb
Locked rotor torque 260 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 63.2 lb
Efficiency
50% 84.0
75% 85.0
100% 84.6
Power factor
50% 0.76
75% 0.85
100% 0.89
Electric Motors
Frame L145HP
Output 3 HP (2.2 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2840 rpm
Slip 5.33 %
Rated voltage 400 V
Rated current 4.26 A
L. R. Amperes 28.5 A
LRC 6.7x(Code H)
No load current 1.43 A
Rated torque 5.55 ft.lb
Locked rotor torque 300 %
Breakdown torque 300 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
Approx. weight³ 63.2 lb
Efficiency
50% 84.5
75% 85.5
100% 85.6
Power factor
50% 0.72
75% 0.82
100% 0.87
Features
Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 207A (ISO 12944 - C2)
Grounding Lugs Single
Fan Cover material Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap Circlip Ring
Drip Cover With
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 9
