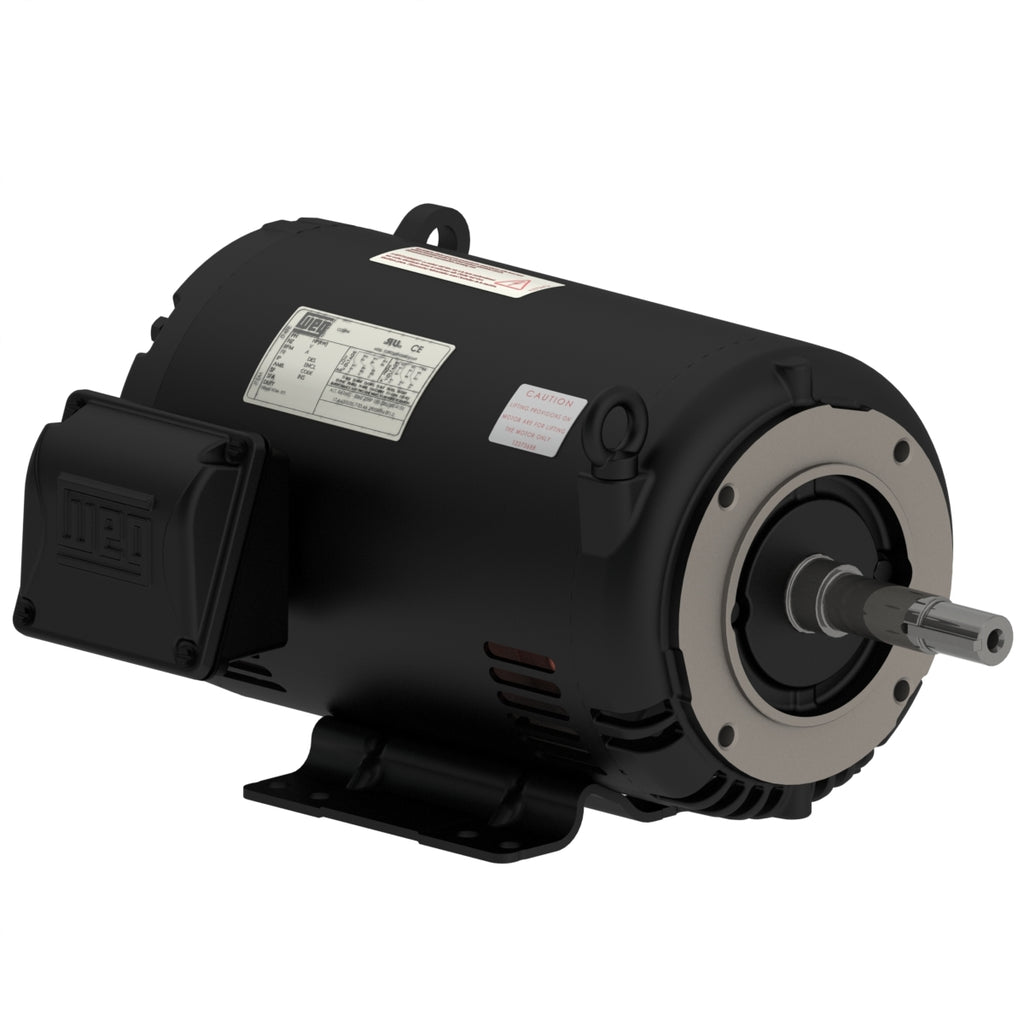

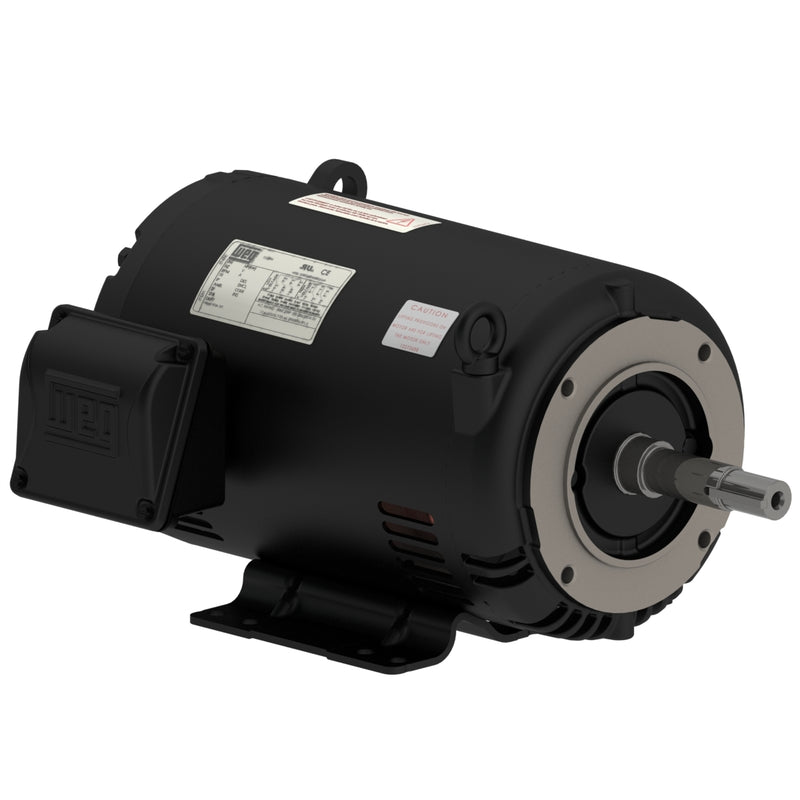

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.
| Standard |
NEMA MG-1 |
| Frequency |
60 Hz |
| Voltage |
575 V |
| Number of poles |
4 |
| Synchronous speed |
1800 rpm |
| Output rating |
3 HP |
| Mounting |
F-1 |
| Flange |
C |
| Terminal box¹ |
Left position |
| Enclosure |
IC01 - ODP |
Electric Motors
| Frame |
182/4JM |
| Output |
3 HP (2.2 kW) |
| Number of Poles |
4 |
| Frequency |
60 Hz |
| Rated speed |
1765 rpm |
| Slip |
1.94 % |
| Rated voltage |
575 V |
| Rated current |
3.09 A |
| L. R. Amperes |
25.9 A |
| LRC |
8.4x(Code K) |
| No load current |
1.66 A |
| Rated torque |
8.93 ft.lb |
| Locked rotor torque |
220 % |
| Breakdown torque |
330 % |
| Locked rotor time |
27s (cold) 15s (hot) |
| Moment of inertia (J) |
0.3092 sq.ft.lb |
| Design |
B |
| Insulation Class |
F |
| Service factor |
1.15 |
| Temperature rise |
80 K |
| Duty Cycle |
Cont.(S1) |
| Starting Method |
Direct On Line |
| Ambient temperature |
-20°C to +40°C |
| Altitude |
1000 m.a.s.l. |
| Enclosure |
IC01 - ODP |
| Mounting |
F-1 |
| Rotation¹ |
Both (CW and CCW) |
| Noise level² |
55.0 dB(A) |
| Approx. weight³ |
74.6 lb |
Efficiency
| 50% |
87.5 |
| 75% |
88.5 |
| 100% |
89.5 |
Power factor
| 50% |
0.60 |
| 75% |
0.73 |
| 100% |
0.80 |
Features
| Frame Material |
Rolled Steel |
| Impregnation Method |
Dip and Bake Polyester |
| Main terminal box hole |
1.118" |
| Terminal Block |
Without |
| Shaft Material |
SAE 1040/45 Carbon Steel |
| Painting |
Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs |
Single |
| Fan Cover material |
Without Fan Cover |
| Tropicalized Painting |
Without |
| Fan material |
Without fan |
| Bearing cap |
Yes- Bearing Cap |
| Bolt Material |
Carbon Steel |
| Balancing Method |
1/2 Key |
| Drip Cover |
Without |
| Resilient Base |
Without |
| Overload protector (phenolic) |
Without overload protector |
| Connection Cables Quantity |
6 |
Features
| Frame Material |
Rolled Steel |
| Impregnation Method |
Dip and Bake Polyester |
| Main terminal box hole |
1.118" |
| Terminal Block |
Without |
| Shaft Material |
SAE 1040/45 Carbon Steel |
| Painting |
Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs |
Single |
| Fan Cover material |
Without Fan Cover |
| Tropicalized Painting |
Without |
| Fan material |
Without fan |
| Bearing cap |
Yes- Bearing Cap |
| Bolt Material |
Carbon Steel |
| Balancing Method |
1/2 Key |
| Drip Cover |
Without |
| Resilient Base |
Without |
| Overload protector (phenolic) |
Without overload protector |
| Connection Cables Quantity |
6 |
