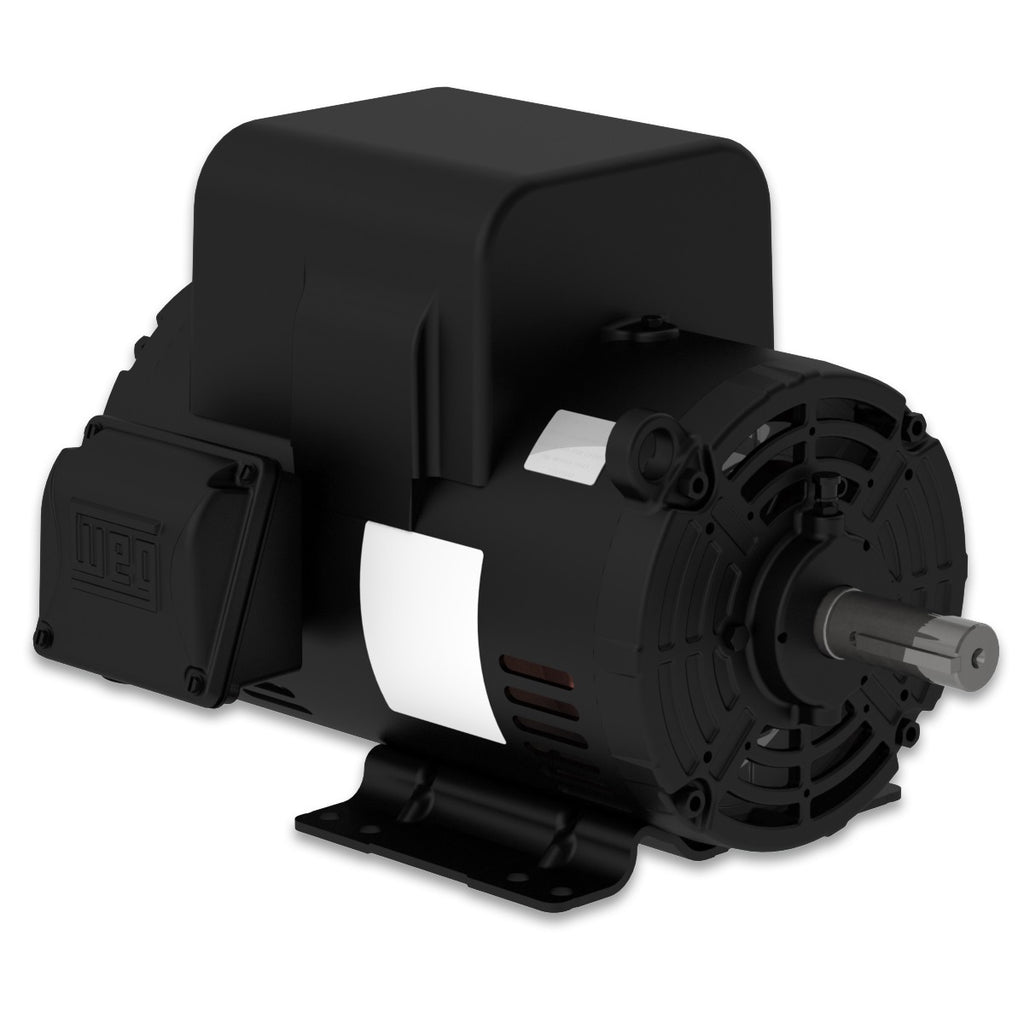

Description
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 115/208-230 V |
| Number of poles | 4 |
| Synchronous speed | 1800 rpm |
| Output rating | 3 HP |
| Mounting | F-1 |
| Flange | Without |
| Terminal box¹ | Left position |
| Enclosure | IC01 - ODP |
Electric Motors
| Frame | 182/4T |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1745 rpm |
| Slip | 3.06 % |
| Rated voltage | 115/208-230 V |
| Rated current | 29.9/15.8-15.0 A |
| L. R. Amperes | 173/91.6-87.0 A |
| LRC | 5.8x(Code H) |
| No load current | 16.1/6.10-8.10 A |
| Rated torque | 9.03 ft.lb |
| Locked rotor torque | 250 % |
| Breakdown torque | 210 % |
| Locked rotor time | 23s (cold) 13s (hot) |
| Moment of inertia (J) | 0.2776 sq.ft.lb |
| Design | L |
| Insulation Class | F |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 - ODP |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 75.0 lb |
Efficiency
| 50% | 72.4 |
|---|---|
| 75% | 76.9 |
| 100% | 77.0 |
Power factor
| 50% | 0.66 |
|---|---|
| 75% | 0.77 |
| 100% | 0.83 |
Features
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | No-Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Resilient Base | Without |
| Overload protector (phenolic) | Without overload protector |
