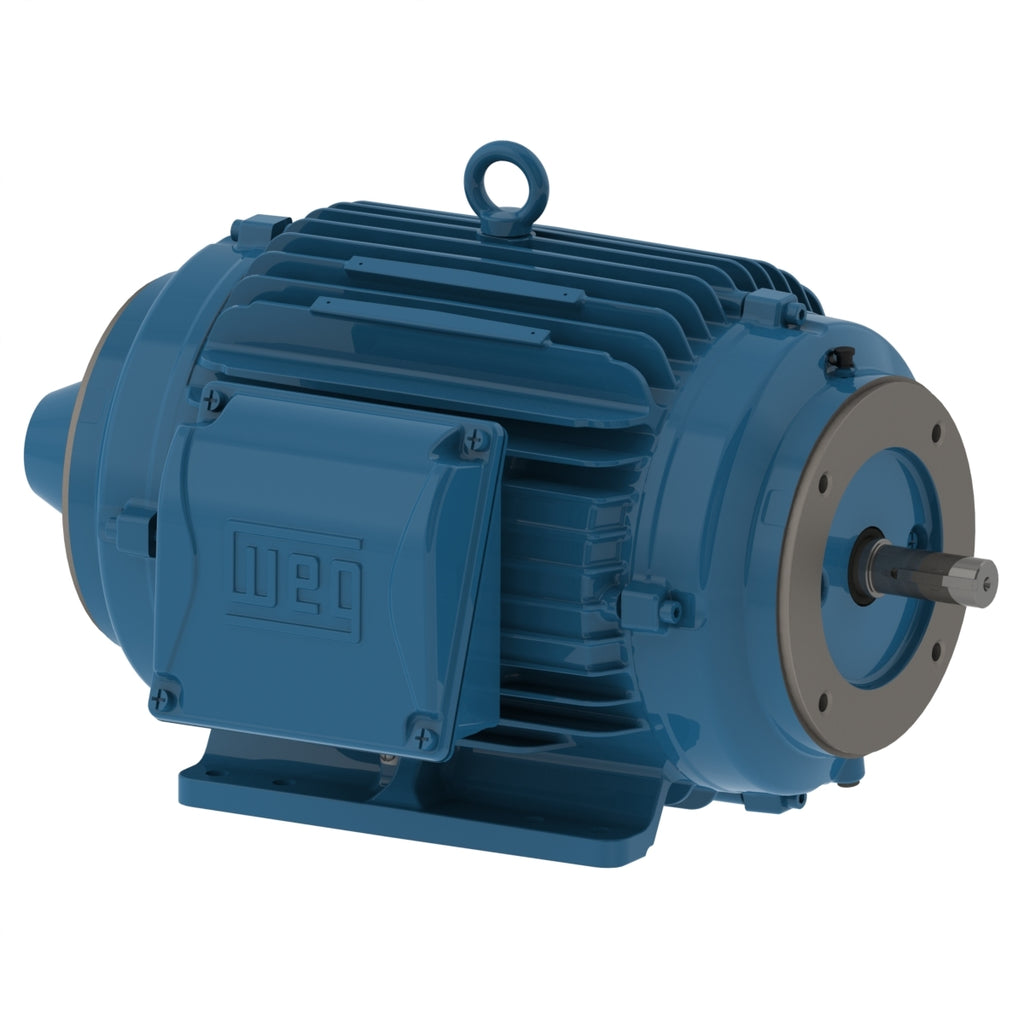

Description
Motor designed specifically for Inverter Operation, allowing its use in applications where 1000:1 constant torque turndown ratio is required.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 3 HP |
| Mounting | F-1 |
| Flange | C |
| Terminal box¹ | Left position |
| Enclosure | IC410 - TENV |
Electric Motors
| Frame | 182/4T |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1750 rpm |
| Slip | 2.78 % |
| Rated voltage | 230/460 V |
| Rated current | 7.81/3.91 A |
| L. R. Amperes | 58.6/29.3 A |
| LRC | 7.5x(Code J) |
| No load current | 4.00/2.00 A |
| Rated torque | 9.00 ft.lb |
| Locked rotor torque | 229 % |
| Breakdown torque | 340 % |
| Locked rotor time | 45s (cold) 25s (hot) |
| Moment of inertia (J) | 0.3987 sq.ft.lb |
| Design | B |
| Insulation Class | H |
| Service factor | 1.00 |
| Temperature rise | 105 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | VFD |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC410 - TENV |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Approx. weight³ | 90.4 lb |
Efficiency
| 50% | 89.0 |
|---|---|
| 75% | 89.5 |
| 100% | 89.5 |
Power factor
| 50% | 0.59 |
|---|---|
| 75% | 0.72 |
| 100% | 0.79 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Without Fan Cover |
| Tropicalized Painting | Without |
| Fan material | Without fan |
| Bearing cap | Yes- Bearing Cap |
| Winding thermal protection | Thermostat - 2 wires 1 per phase 155°C |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 9 |
