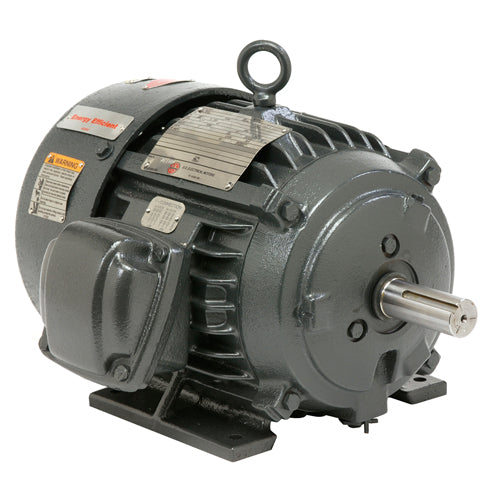

Description
- General Purpose
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- Hazardous Location
- Energy Efficient
- Single Label CORRO-DUTY®
Specifications
| Model_Number | 1200 |
|---|---|
| PRODUCT NAME | .75 HP - TEFC - 1755 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | .75 |
| KILOWATTS | 0.6 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1755 |
| RPM 2 | 1755 |
| HERTZ | 60 |
| VOLTS PRIMARY | 230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| FRME | 56 |
| MOUNTING | HORZ-FOOTED |
| MOTOR TYPE | E |
| OPPOSITE END BEARING | 6203-2Z-J/C3 |
| SHAFT END BEARING | 6203-2Z-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 49 |
| BREAKDOWN TORQUE | 420 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 300 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | L |
| LOCKED ROTOR AMPS | 9.4 |
| NEMA NOMINAL EFFICIENCY | 78.5 |
| FULL LOAD AMPS PRIMARY | 2.7/1.3 |
