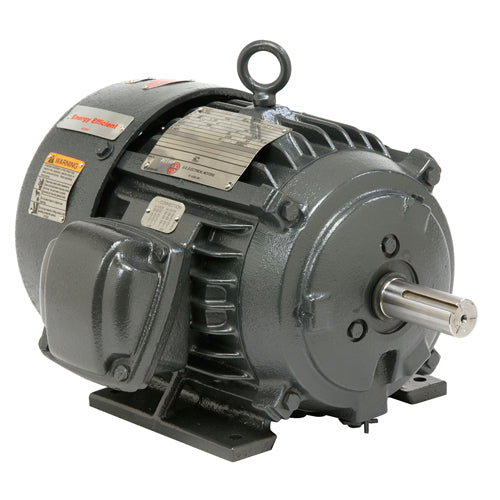

Description
- Three Phase General Purpose
- Hazardous Location
- Totally Enclosed Fan Cooled (TEFC)
- Dual Label
- Premium Efficient
Specifications
| Model_Number | CV19 |
|---|---|
| PRODUCT NAME | 50 HP - TEFC - 1190 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 50 |
| KILOWATTS | 37.3 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1190 |
| RPM 2 | 1190 |
| HERTZ | 60 |
| VOLTS PRIMARY | 230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| FRME | 365 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F1 |
| MOTOR TYPE | LE |
| OPPOSITE END BEARING | 6212-J/C3 |
| SHAFT END BEARING | 6313-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 950 |
| BREAKDOWN TORQUE | 218 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 154 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | E |
| LOCKED ROTOR AMPS | 341 |
| NEMA NOMINAL EFFICIENCY | 94.1 |
| FULL LOAD AMPS PRIMARY | 115/58 |
