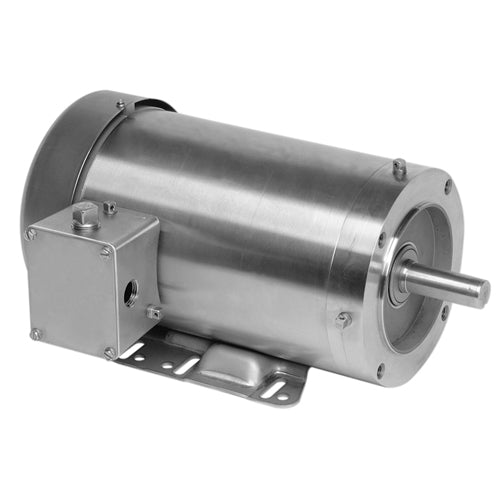

Description
- Special Application Washdown
- Three Phase Totally Enclosed
- All Stainless Steel
- C Face Footed
Specifications
| Model_Number | BK14 |
|---|---|
| PRODUCT NAME | .75 HP - TE - 1750 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TE |
| HORSEPOWER | .75 |
| KILOWATTS | 0.6 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1750 |
| RPM 2 | 1750 |
| RPM 3 | 1735 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 3 | 208 |
| FRME | 56 |
| SHAFT CODE | HC |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F-1 |
| MOTOR TYPE | SSN |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 38 |
| BREAKDOWN TORQUE | 504 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 391 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | M |
| LOCKED ROTOR AMPS | 10.1 |
| NEMA NOMINAL EFFICIENCY | 82.5 |
| FULL LOAD AMPS PRIMARY | 2.4-2.4/1.2 |
| SERVICE FACTOR AMPS PRIMARY | 2.7-2.6/1.3 |
