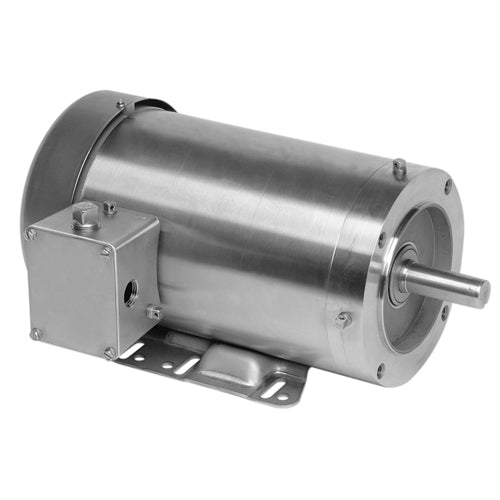

Description
- Special Application Washdown
- Three Phase Totally Enclosed
- All Stainless Steel
- C Face Footless
Specifications
| Model_Number | BK19 |
|---|---|
| PRODUCT NAME | .5 HP - TE - 1755 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TE |
| HORSEPOWER | .5 |
| KILOWATTS | 0.4 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1755 |
| RPM 2 | 1755 |
| RPM 3 | 1745 |
| HERTZ | 60 |
| VOLTS PRIMARY | 208-230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 3 | 208 |
| FRME | 56 |
| SHAFT CODE | C |
| MOUNTING | HORZ-FOOTLESS |
| MOTOR TYPE | SSNF |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 37 |
| BREAKDOWN TORQUE | 541 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 414 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | N |
| LOCKED ROTOR AMPS | 7.4 |
| NEMA NOMINAL EFFICIENCY | 78.5 |
| FULL LOAD AMPS PRIMARY | 1.8-1.9/1 |
| SERVICE FACTOR AMPS PRIMARY | 2-2/1 |
