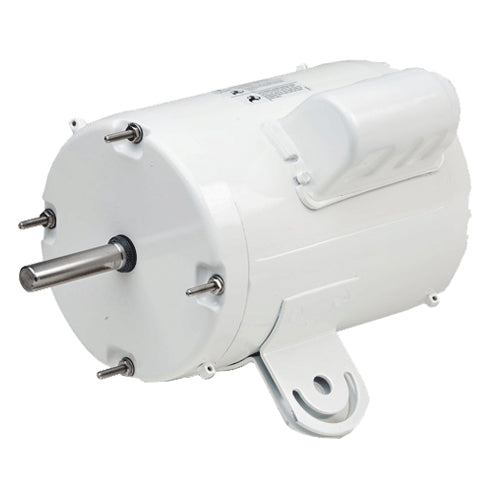

Description
- Permanent Split Capacitor
- Painted Washdown
- Totally Enclosed Air Over (TEAO)
- Non-Oscillating Fan Motors
- Yoke Mount
Specifications
| Model_Number | K063FBY4939015B |
|---|---|
| PRODUCT NAME | .25 HP - - 1700 |
| PHASETYPE | 1_PHASE |
| HORSEPOWER | .25 |
| KILOWATTS | 0.2 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1700 |
| HERTZ | 60 |
| VOLTS PRIMARY | 115/230 |
| VOLTS | 115 |
| VOLTS 2 | 230 |
| FRME | 56 |
| SHAFT CODE | YZ |
| STATOR DIAMETER | 6.3 |
| STACK | 1.125 |
| MOTOR TYPE | FHP |
| OPPOSITE END BEARING | 6203 |
| SHAFT END BEARING | 6203 |
| AMBIENT | 40 |
| ROTATION | CW/CCW |
| SERVICE FACTOR | 1 |
| RUNCAPMFD | 40 |
| RUNCAPVOLTS | 440 |
| SHIPPING WEIGHT | 19 |
| BREAKDOWN TORQUE | 41.77 |
| BREAKDOWN TORQUE UOM | OZFT |
| LOCKED ROTOR TORQUE | 28.37 |
| LOCKED ROTOR TORQUE UOM | OZFT |
| KVA CODE LETTER | F |
| LOCKED ROTOR AMPS | 13.03 |
| FULL LOAD AMPS PRIMARY | 3.5/1.7 |
| SERVICE FACTOR AMPS PRIMARY | 3.5/1.7 |
