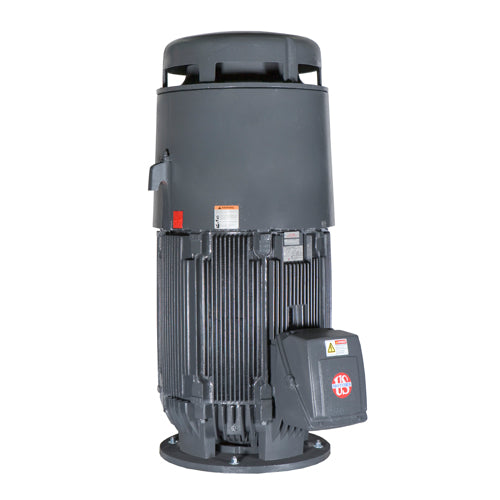

Description
- Vertical Motors
- Three Phase Weather Protected Type I (WPI) & Totally Enclosed Fan Cooled (TEFC)
- Solid Shaft Normal Thrust
- Premium Efficient
Specifications
| Model_Number | DK02 |
|---|---|
| PRODUCT NAME | 2 HP - TEFC - 3505 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 2 |
| KILOWATTS | 1.5 |
| POLES | 2 |
| NUMBER SPEEDS | 1 |
| RPM | 3505 |
| RPM 2 | 3505 |
| HERTZ | 60 |
| VOLTS PRIMARY | 230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| FRME | 145 |
| SHAFT CODE | VP |
| MOUNTING | VERT |
| ASSEMBLY POSITION | NA |
| MOTOR TYPE | TVS |
| OPPOSITE END BEARING | 6203-2Z-J/C3 |
| SHAFT END BEARING | 6207-2Z-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 45 |
| BREAKDOWN TORQUE | 446 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 341 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | M |
| LOCKED ROTOR AMPS | 25.2 |
| NEMA NOMINAL EFFICIENCY | 85.5 |
| FULL LOAD AMPS PRIMARY | 4.8/2.4 |
| SERVICE FACTOR AMPS PRIMARY | 5.5/2.8 |
