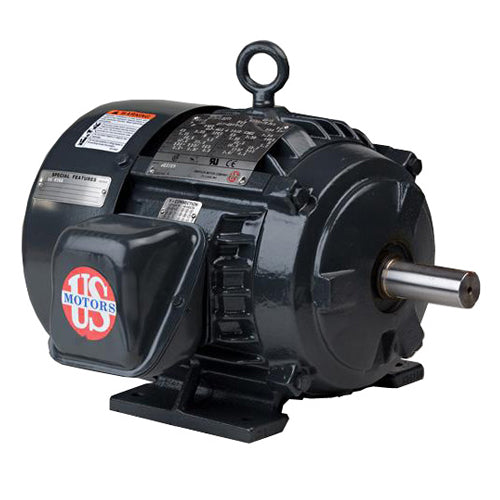

Description
- Cooling Tower Duty
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- Premium Efficient Inverter Duty
- 10:1 (6-60 HZ) Speed Range Variable Torque
Specifications
| Model_Number | FH35 |
|---|---|
| PRODUCT NAME | 3 HP - TEFC - 1765 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 3 |
| KILOWATTS | 2.2 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1765 |
| HERTZ | 60 |
| VOLTS PRIMARY | 575 |
| VOLTS | 575 |
| FRME | 182 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F2 |
| MOTOR TYPE | CTI |
| OPPOSITE END BEARING | 6206-2RS-J/C3 |
| SHAFT END BEARING | 6206-2RS-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 100 |
| BREAKDOWN TORQUE | 381 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 243 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | K |
| LOCKED ROTOR AMPS | 25.1 |
| NEMA NOMINAL EFFICIENCY | 89.5 |
| FULL LOAD AMPS PRIMARY | 3.2 |
| SERVICE FACTOR AMPS PRIMARY | 3.6 |
