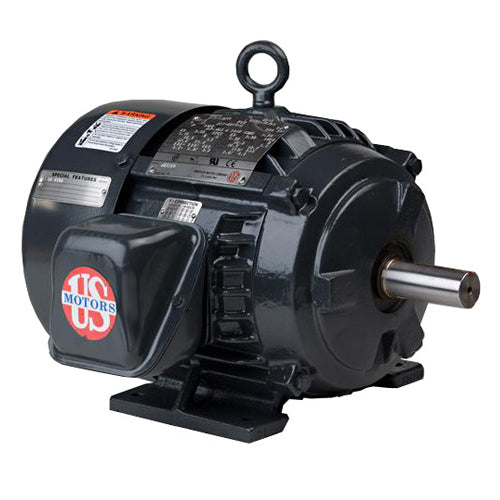

Description
- Cooling Tower Duty
- Three Phase Totally Enclosed Fan Cooled (TEFC)
- Premium Efficient Inverter Duty
- 10:1 (6-60 HZ) Speed Range Variable Torque
Specifications
| Model_Number | FH52 |
|---|---|
| PRODUCT NAME | 10 HP - TEFC - 1180 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEFC |
| HORSEPOWER | 10 |
| KILOWATTS | 7.5 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1180 |
| RPM 2 | 1180 |
| RPM 4 | 970 |
| RPM 5 | 970 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 4 | 380 |
| VOLTS 5 | 190 |
| FRME | 256 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | F2 |
| MOTOR TYPE | CTI |
| OPPOSITE END BEARING | 6309-2RS-J/C3 |
| SHAFT END BEARING | 6309-2RS-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 340 |
| BREAKDOWN TORQUE | 274 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 196 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | G |
| LOCKED ROTOR AMPS | 75.2 |
| NEMA NOMINAL EFFICIENCY | 91.7 |
| FULL LOAD AMPS PRIMARY | 24.5/12.3 |
| SERVICE FACTOR AMPS PRIMARY | 27.9/14 |
