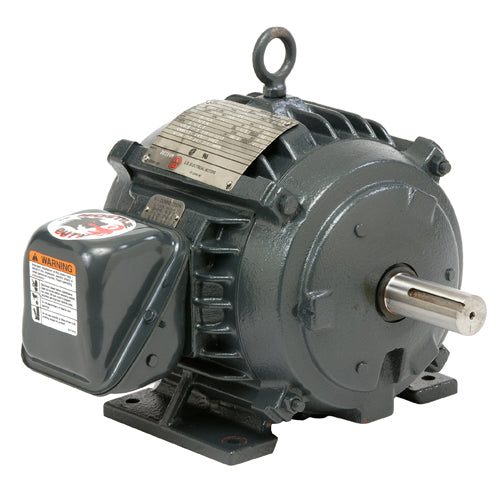

Description
- Cooling Tower Duty
- Three Phase Totally Enclosed Air Over (TEAO)
- Premium Efficient Inverter Duty
- 10:1 (6-60 HZ) Speed Range Variable Torque
Specifications
| Model_Number | FH21 |
|---|---|
| PRODUCT NAME | 25 HP - TEAO - 1180 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | TEAO |
| HORSEPOWER | 25 |
| KILOWATTS | 18.6 |
| POLES | 6 |
| NUMBER SPEEDS | 1 |
| RPM | 1180 |
| RPM 2 | 1180 |
| RPM 4 | 975 |
| RPM 5 | 975 |
| HERTZ | 60 |
| HERTZ 2 | 50 |
| VOLTS PRIMARY | 230/460 |
| VOLTS | 460 |
| VOLTS 2 | 230 |
| VOLTS 4 | 380 |
| VOLTS 5 | 190 |
| FRME | 324 |
| SHAFT CODE | T |
| MOUNTING | HORZ-FOOTED |
| ASSEMBLY POSITION | W6 |
| MOTOR TYPE | CTNI |
| OPPOSITE END BEARING | 6311-2RS-J/C3 |
| SHAFT END BEARING | 6311-2RS-J/C3 |
| AMBIENT | 40 |
| ROTATION | DUAL |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 600 |
| BREAKDOWN TORQUE | 247 |
| BREAKDOWN TORQUE UOM | PERCENT OF FLT |
| LOCKED ROTOR TORQUE | 190 |
| LOCKED ROTOR TORQUE UOM | PERCENT OF FLT |
| INSULATION CLASS | F |
| KVA CODE LETTER | G |
| LOCKED ROTOR AMPS | 193.6 |
| NEMA NOMINAL EFFICIENCY | 93 |
| FULL LOAD AMPS PRIMARY | 59/29.5 |
| SERVICE FACTOR AMPS PRIMARY | 68/34 |
