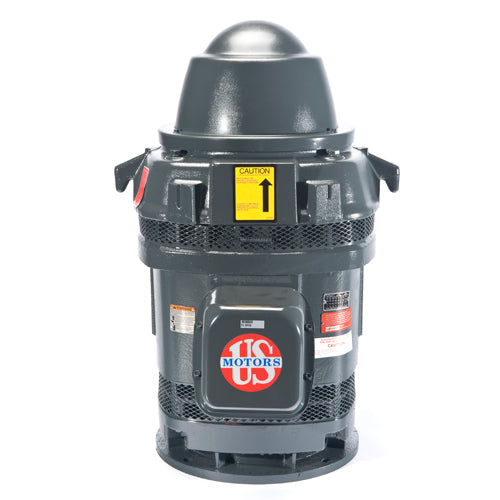

Description
- Vertical Motors
- Three Phase Weather Protected Type I (WPI)
- HOLLOSHAFT® High Thrust
- Premium Efficient
- SINEWAVE OPTIMIZED®
Specifications
| Model_Number | FD06 |
|---|---|
| PRODUCT NAME | 600 HP - WPI - 1780 |
| PHASETYPE | 3_PHASE |
| MOTOR ENCLOSURE | WPI |
| HORSEPOWER | 600 |
| KILOWATTS | 447.6 |
| POLES | 4 |
| NUMBER SPEEDS | 1 |
| RPM | 1780 |
| HERTZ | 60 |
| VOLTS PRIMARY | 460 |
| VOLTS | 460 |
| FRME | 5012 |
| SHAFT CODE | P |
| MOUNTING | VERT |
| ASSEMBLY POSITION | NA |
| MOTOR TYPE | RUE |
| OPPOSITE END BEARING | 29428-EJ |
| SHAFT END BEARING | 6219-J/C3 |
| AMBIENT | 40 |
| SERVICE FACTOR | 1.15 |
| STARTCAPMFD | N\A |
| SHIPPING WEIGHT | 5450 |
| INSULATION CLASS | F |
| KVA CODE LETTER | G |
| NEMA NOMINAL EFFICIENCY | 96.2 |
| FULL LOAD AMPS PRIMARY | 656.0 |
| SERVICE FACTOR AMPS PRIMARY | 756.0 |
